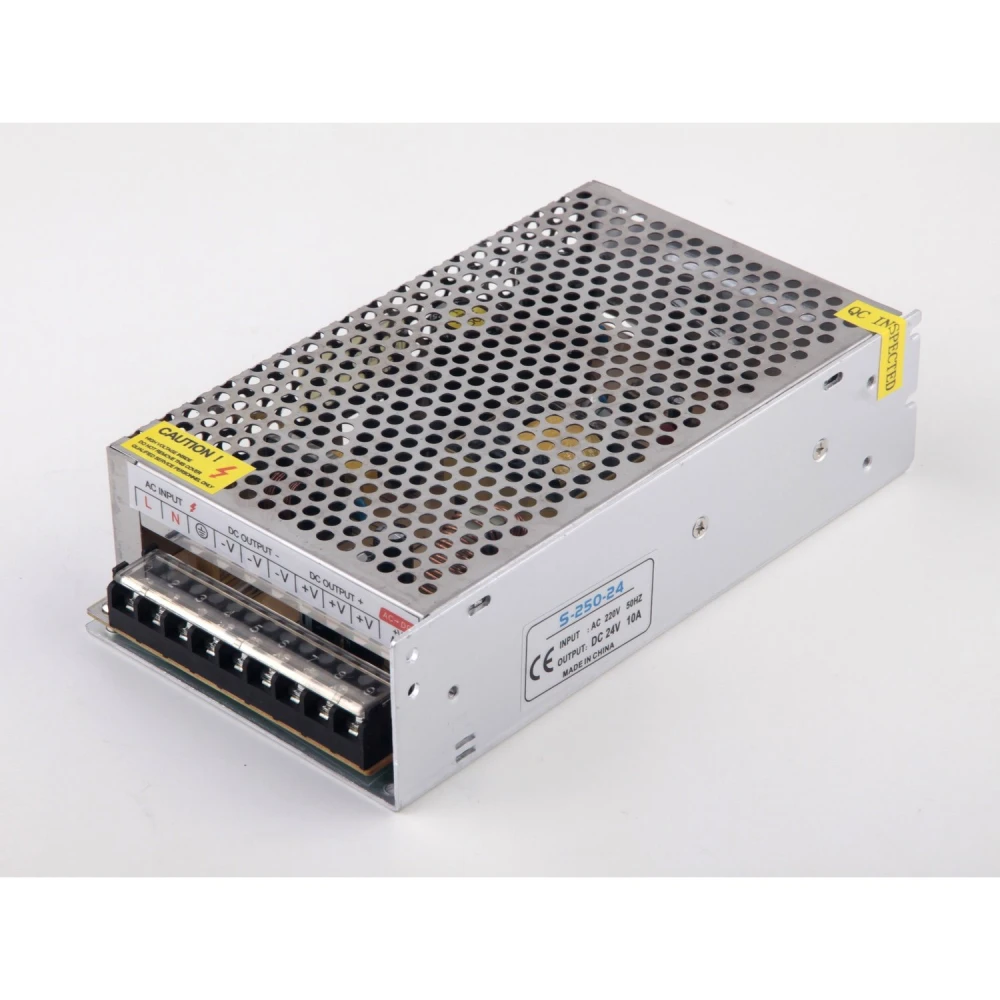

24V 10A power supply transformer with 240W output and adjustment

The 24V 10A power supply transformer is an essential device for supplying stable power to electronic equipment that requires a 24V voltage and a maximum current of 10 amperes, with a maximum output power of 240W. This model, identified as S-250-24, is ideal for applications that require a reliable and safe power supply.

Características principales:

• Voltaje de entrada: Compatible with 100-120V AC or 200-220V AC, facilitating its use in different regions.
• Voltaje de salida: 24V DC with adjustable regulation between 21V and 27V via an integrated potentiometer, allowing the voltage to be adapted to the equipment's needs.
• Corriente maxima: 10 amperes, suitable for devices with consumption below 240W.

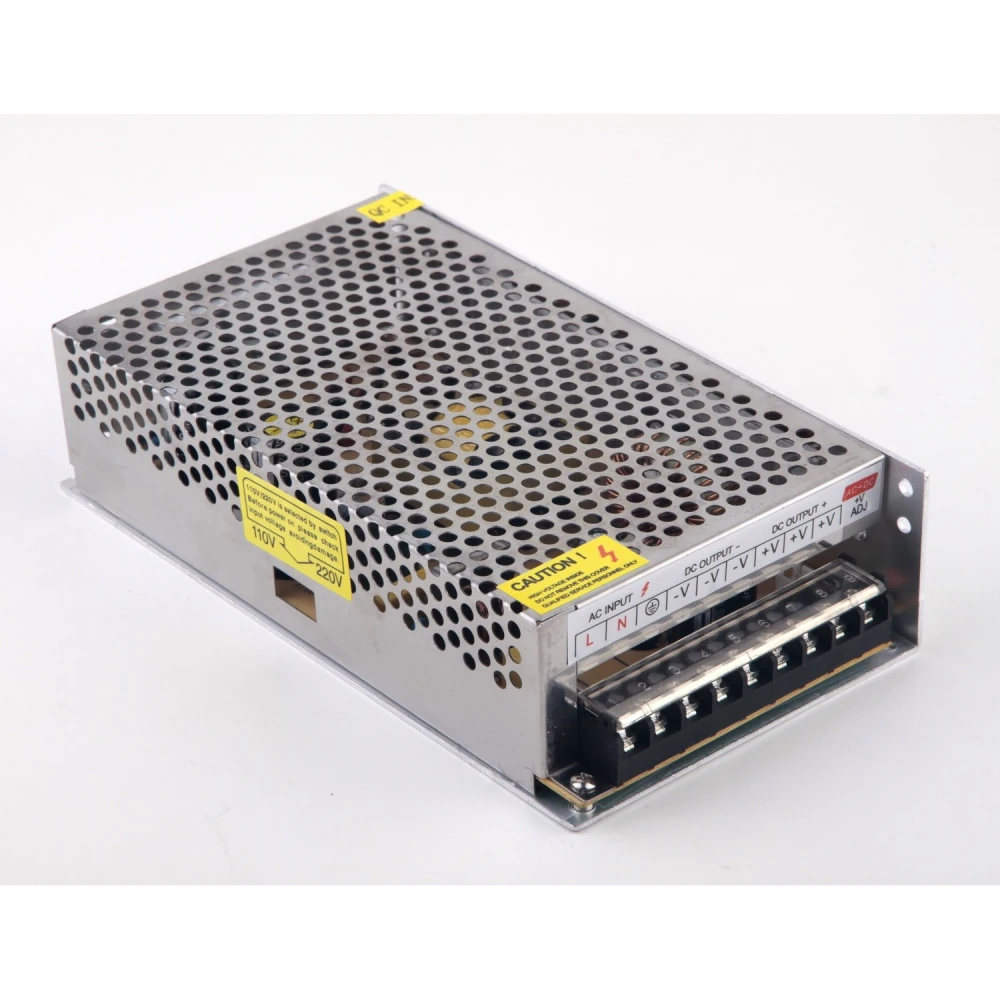

• Protecciones integradas: Includes protection against short circuits, overloads and overvoltage, ensuring the safety of the equipment and the transformer.
• Construccion robusta: Metal casing that improves heat dissipation, increasing durability compared with models with plastic casing.

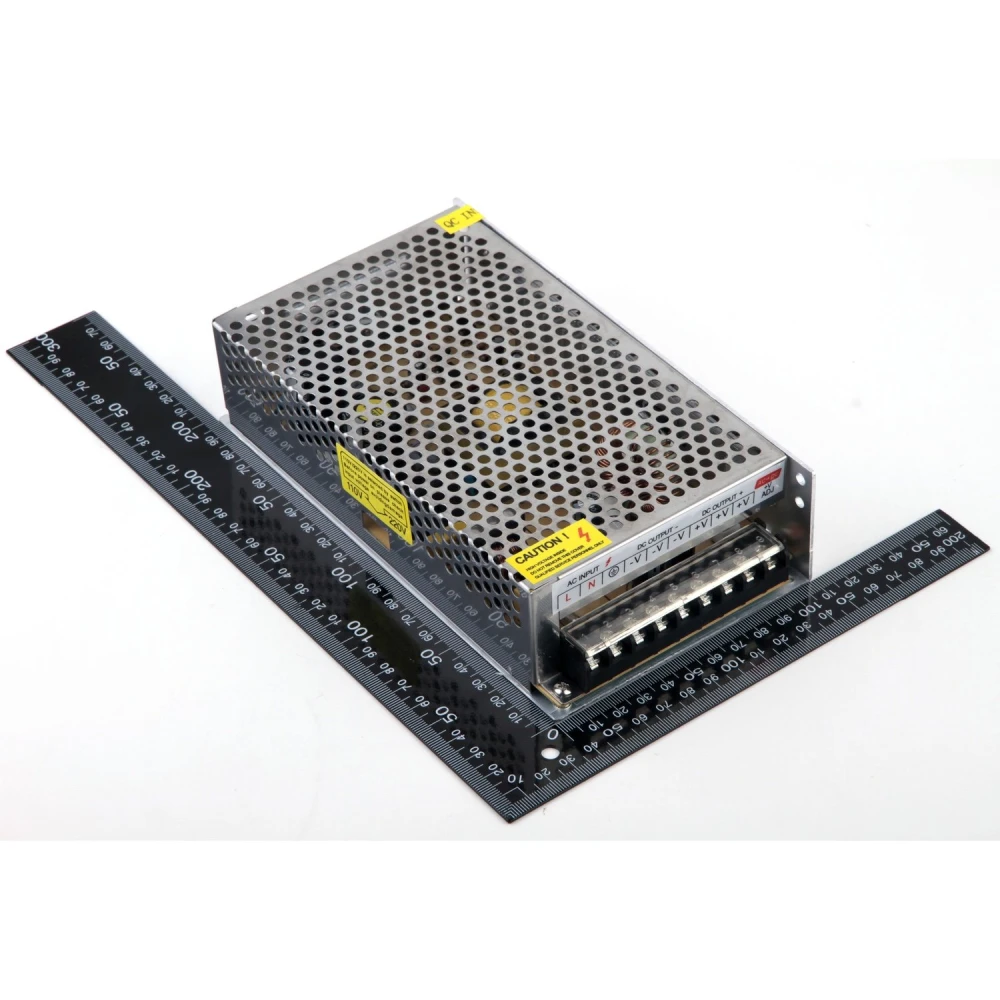

• Conectores: Screw terminal block terminals for a secure connection and easy installation.
• Dimensiones y peso: 50mm high, 200mm long and 110mm wide, with a weight of 660 grams, compact and easy to integrate into different systems.
• Rango de temperatura de funcionamiento: From -20°C to 60°C, suitable for various environmental conditions.
• Numero de salidas: 3 outputs for greater versatility in connections.

Usos tipicos:

• Power supply for soldering and reballing stations that require 24V DC.
• Power supply for LED lighting systems operating at 24V.
• Power source for electronic equipment in DIY projects or repairs.
• Use in electronic spares and accessories where a reliable and adjustable power supply is needed.

Compatibilidad: Compatible with any equipment that operates with a 24V DC supply and does not exceed 240W of consumption. Its adjustable regulation allows it to adapt to different voltage requirements within the specified range.

This 24V 10A power supply transformer is an efficient and safe solution for those looking for a reliable AC to DC power supply with advanced protection and a metal structure that ensures a long service life.

• Input voltage: 100-120V AC or 200-220V AC
• Output voltage: 24V DC with adjustable regulation from 21V to 27V
• Maximum output current: 10A
• Maximum power: 240W (continuous use at maximum not recommended)
• Metal casing for better heat dissipation
• Protection against short circuits, overloads and overvoltage
• Screw Terminal Block connector for secure connections
• Compact dimensions: 50x200x110 mm, weight 660 gr
• Operating temperature range: -20°C to 60°C
• Three outputs for greater versatility
