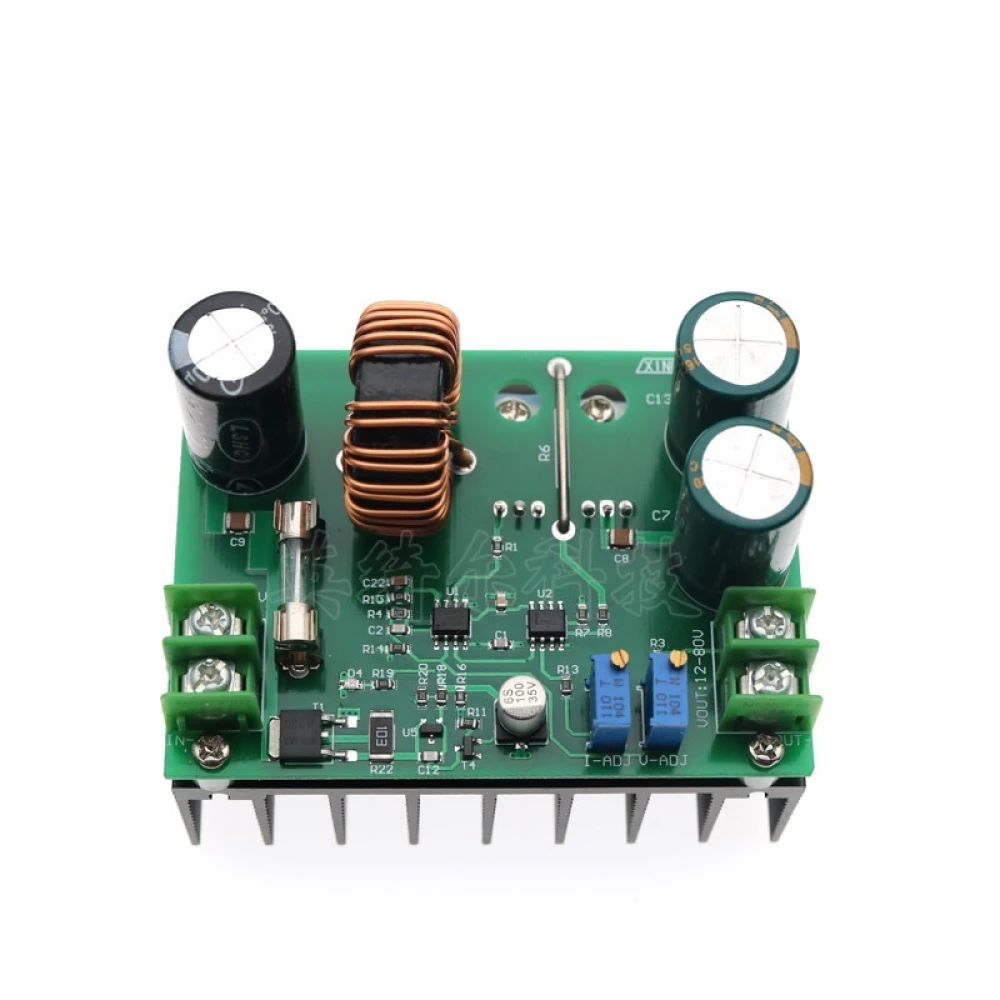

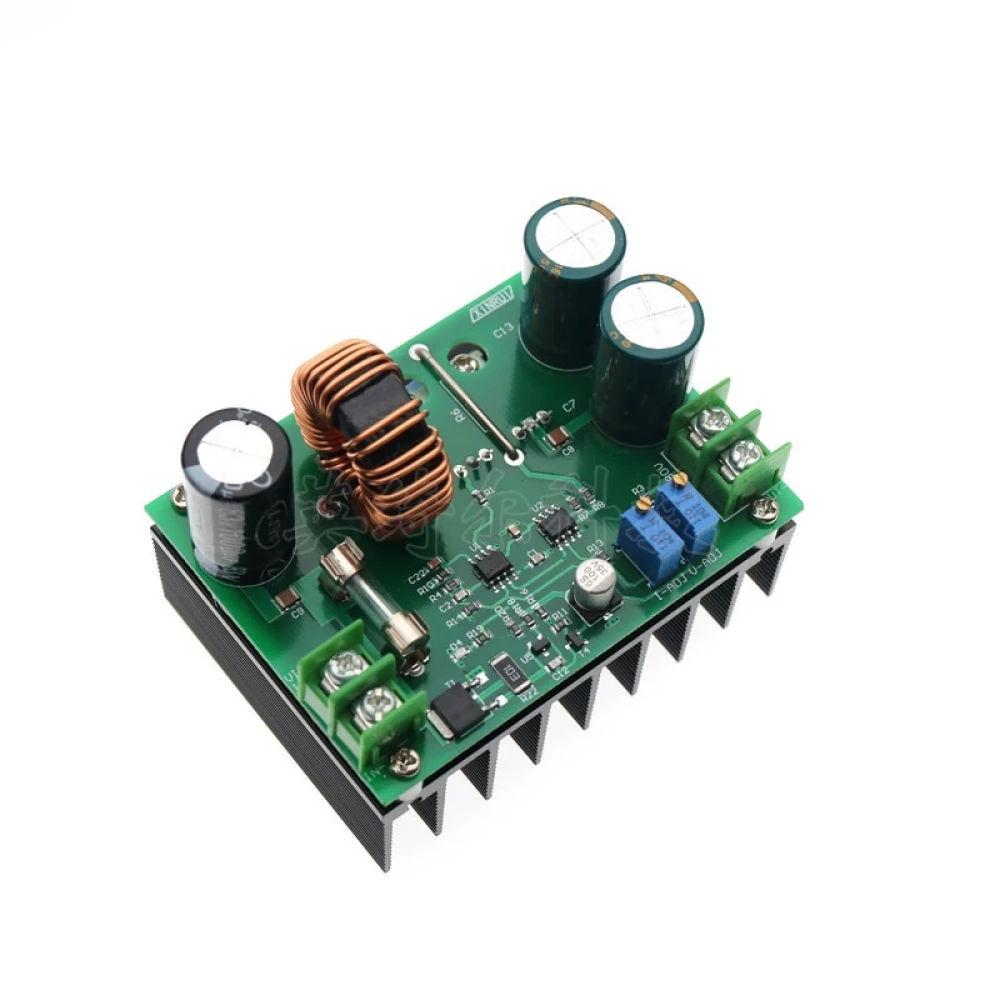

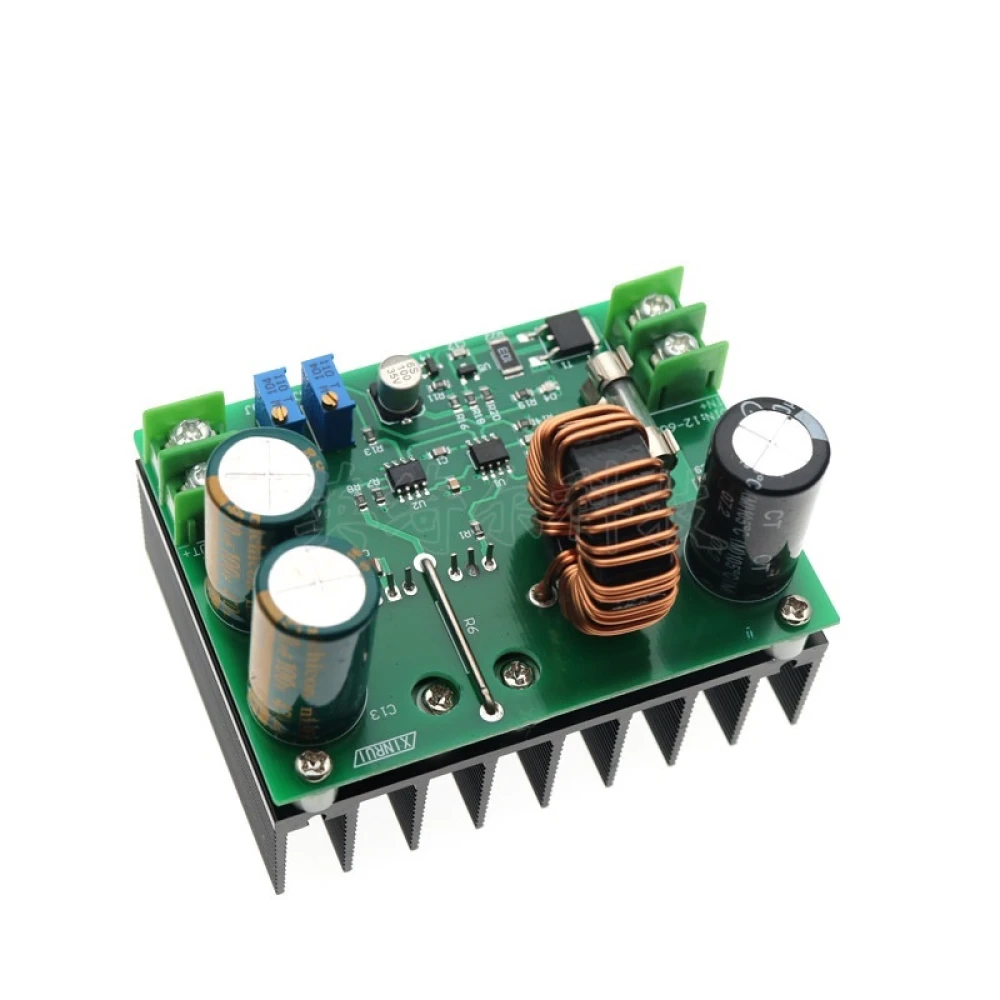

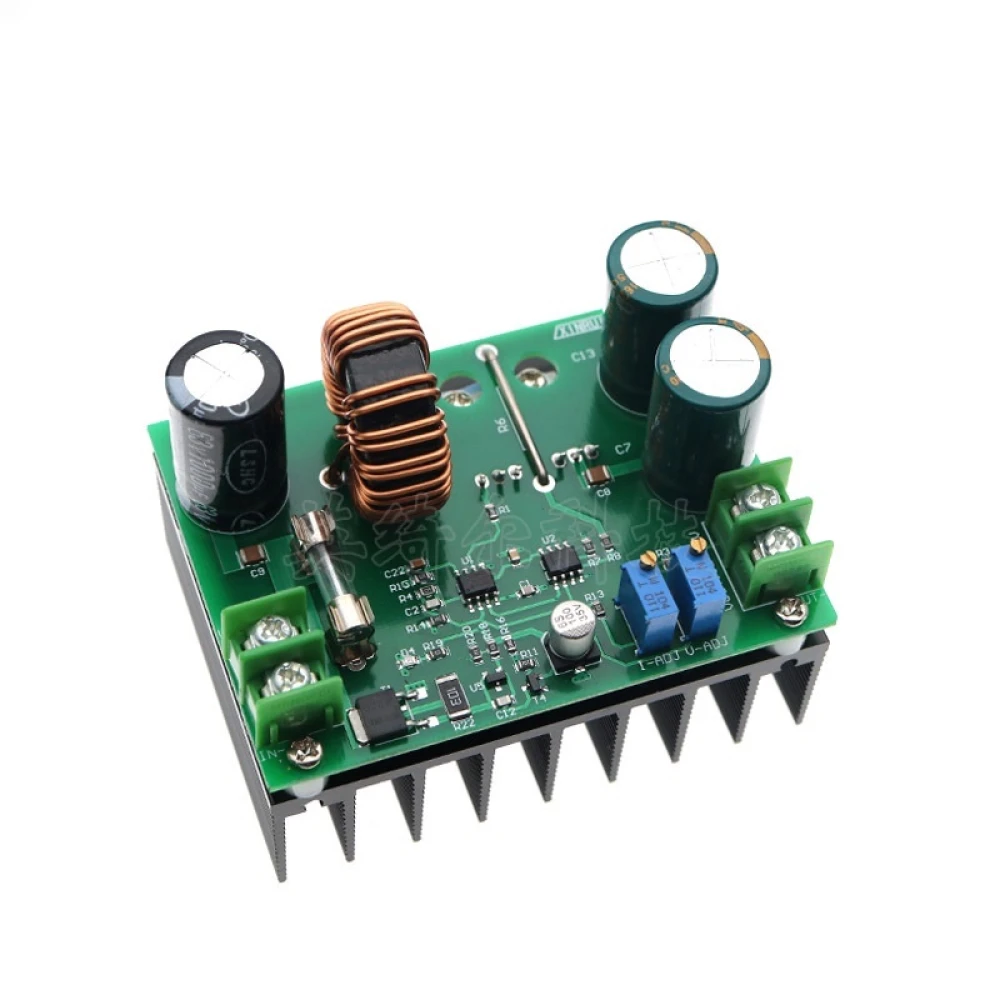

600W DC DC Converter 10V-60V to 12-80V Step-Up Module

600W DC DC Converter 10V-60V to 12-80V Step-Up Power Module

This DC/DC power module is a portable solar converter designed to increase the input voltage from 10V-60V to an adjustable range between 12V and 80V, ideal for applications that require a higher output voltage than the input.

Key features

• Non-isolated boost module for efficiency and compact size.
• Continuously adjustable output voltage between 12V and 80V DC.
• Maximum output current adjustable up to 10A, with heat dissipation reinforcement recommended for higher currents.
• Maximum output power calculated as input voltage multiplied by 10A, reaching up to 600W.
• High conversion efficiency of up to 95%, depending on input and output conditions.
• Overcurrent protection and dual short-circuit protection via 20A input fuse.
• 150kHz operating frequency for stability and performance.

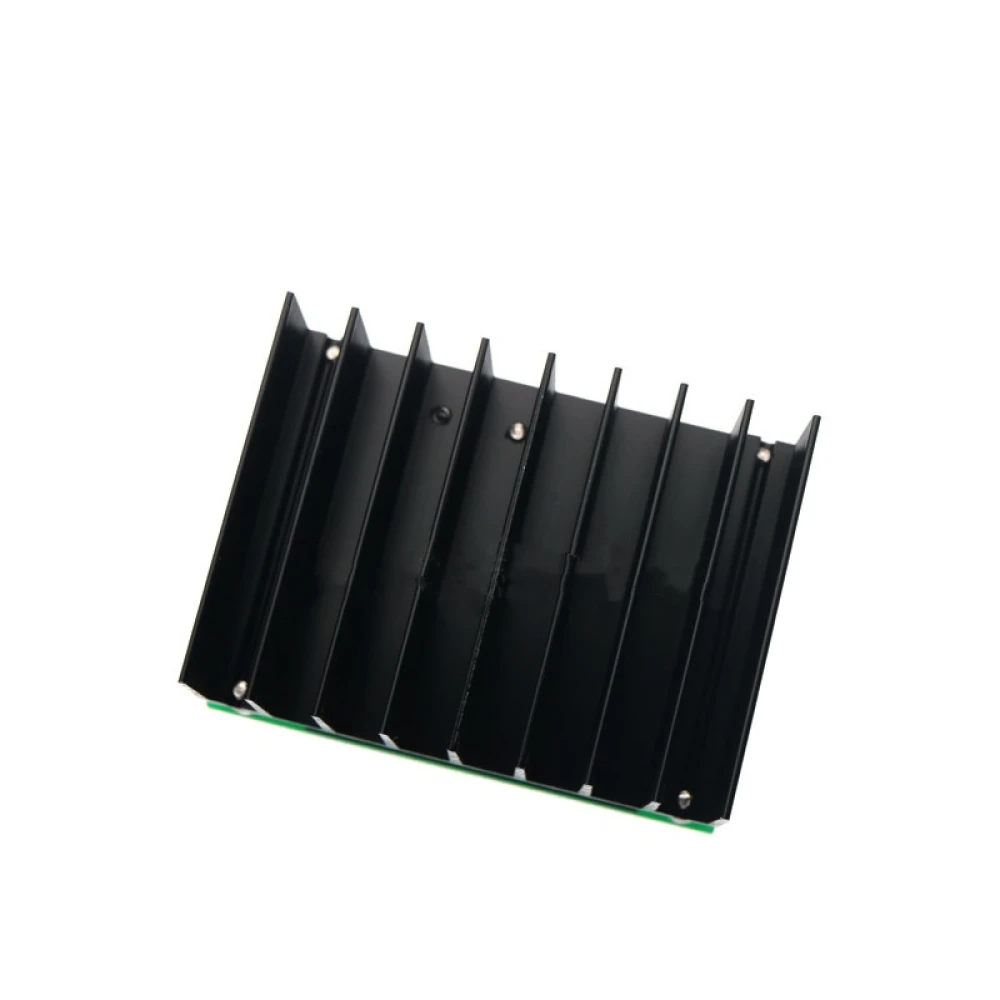

• Operating temperature from -40°C to 85°C, with heat dissipation recommended in hot environments.

Technical specifications

• Input voltage: 12V-60V DC.
• Maximum input current: 15A.
• Output voltage: Adjustable 12V-80V DC.
• Maximum output current: Adjustable 10A.
• Effective output power: P = input voltage x 10A.
• Module size: 73 x 51 mm.
• Weight: 0,3 kg.

Typical applications

• Power supply for electronic equipment that requires voltages higher than the source.
• Power supply for laptops, PDAs and digital devices in vehicles.
• Creating high-power mobile power supplies with 12V lithium batteries.
• Use in solar systems to charge batteries or electric vehicles stably.
• Converting low-voltage batteries to charge high-voltage batteries or lithium batteries.

Compatibility

Compatible with portable solar systems, lead-acid or lithium batteries, and electronic devices that require an adjustable output voltage within the specified range.

Package contents

• 1 x 600W DC/DC Power Module 10V-60V to 12-80V Portable Solar Step-up Converter.

• Non-isolated step-up module to increase voltage from 10V-60V to 12V-80V.
• Adjustable maximum output current up to 10A with overcurrent protection.
• Maximum power up to 600W depending on input voltage.
• High conversion efficiency of up to 95%.
• Dual short-circuit protection with 20A fuse.
• Stable 150kHz operating frequency.
• Operating temperature from -40°C to 85°C with heat dissipation recommended.
