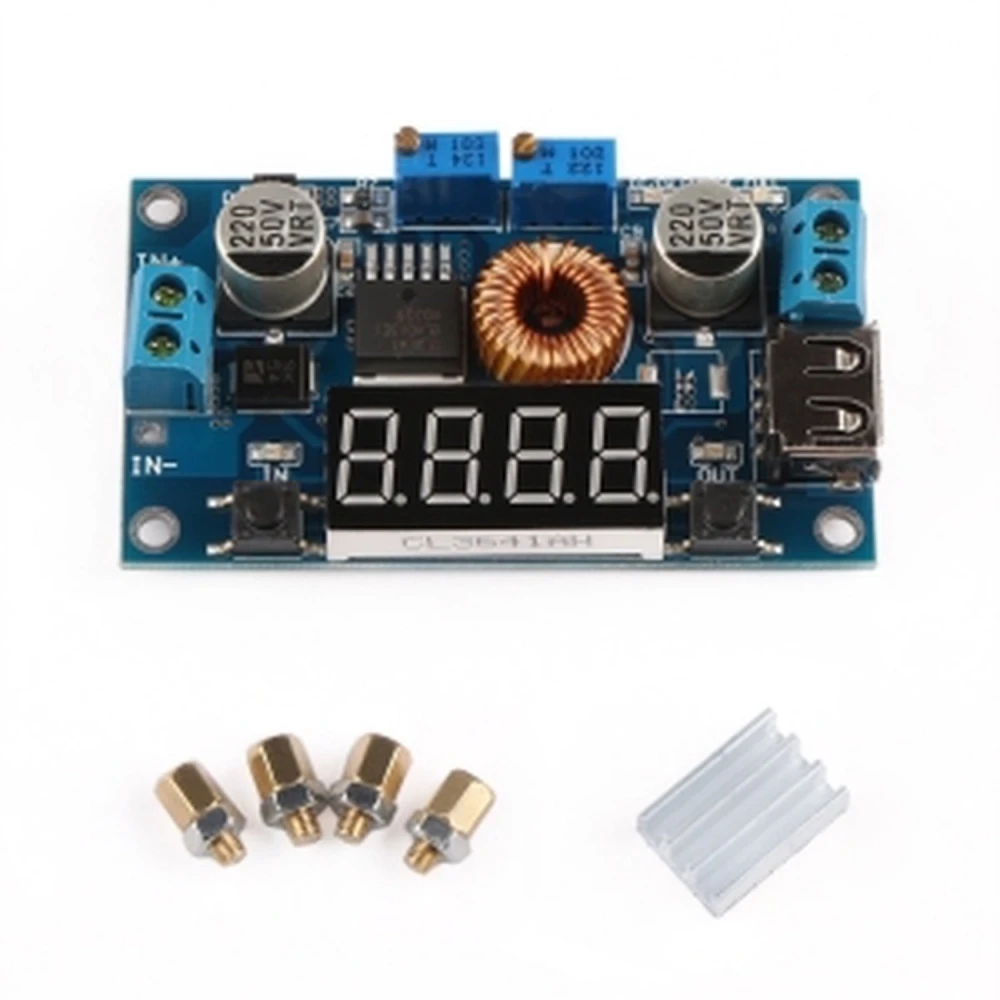

Adjustable DC-DC Converter 5A 1.25V-32V with Voltmeter and Ammeter satkit

Convertidor DC-DC regulable 5A 1.25V-32V con voltímetro y amperímetro satkit en uso con Arduino

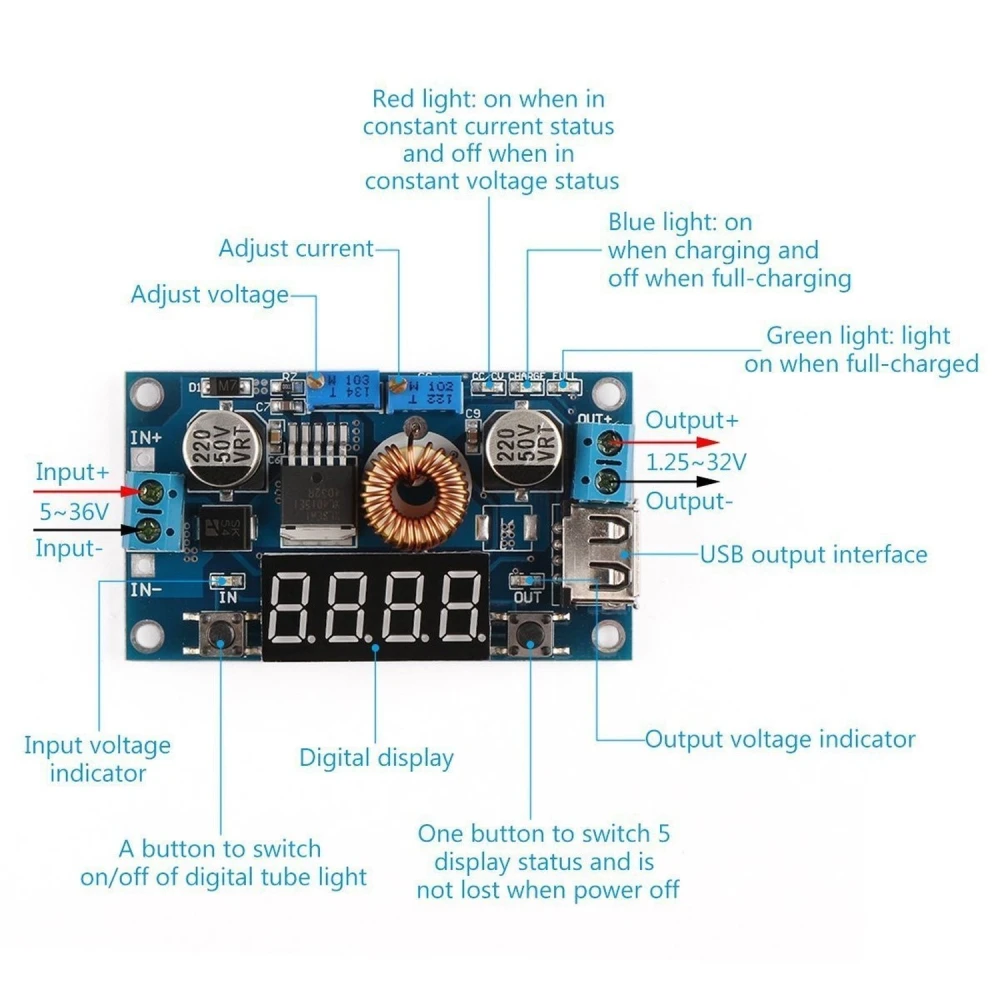

Convertidor DC-DC regulable 5A 1.25V-32V con voltímetro y amperímetro satkit detalle de conexiones

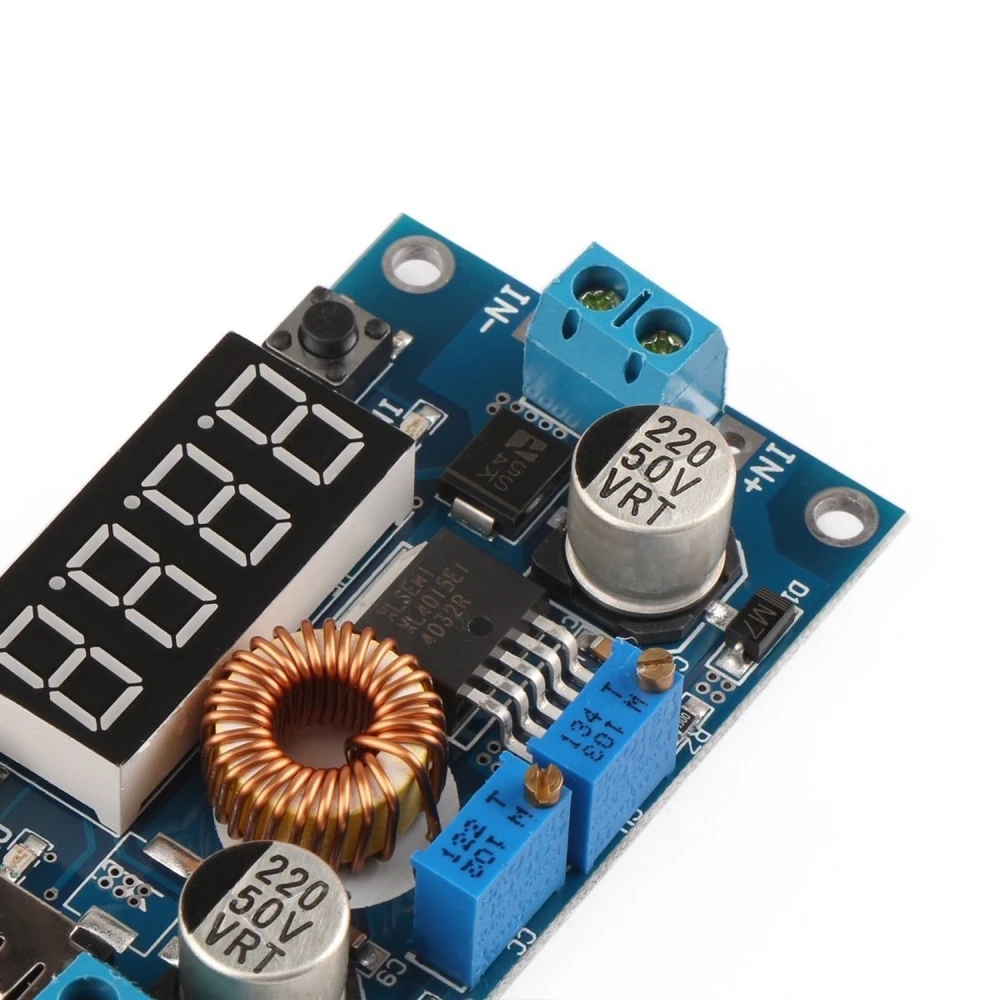

Convertidor DC-DC regulable 5A 1.25V-32V con voltímetro y amperímetro satkit montaje con disipador térmico

Adjustable DC-DC Converter 5A 1.25V-32V with Voltmeter and Ammeter satkit

Name: Adjustable DC-DC Converter 5A 1.25V-32V with Voltmeter and Ammeter satkit
Brand: satkit
SKU: H0X0201-dc-dc-5a-32v-usb-volt-amps
Price: 8.82 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

Save 4% Was: 9.23 €

8.82€

VAT included (Ex VAT: 7.17 €)

Volume Discounts

Quantity	Price	Save
2+	8.86 €	-4%
10+	8.15 €	-12%
20+	7.56 €	-18%

Limited stock

Standard delivery Thu, Apr 30 - Mon, May 4

Express delivery Tue, Apr 28 - Wed, Apr 29

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The Adjustable DC-DC Converter 5A 1.25V-32V with Voltmeter and Ammeter from satkit is an adjustable power module designed to provide precise control of voltage and current in electronics projects, especially useful for applications with Arduino, LED controllers and battery chargers.

Compact size: 68mm x 39mm, ideal for integration into electronics projects.
Input voltage: 5-36V, compatible with various power supplies.
Output voltage: Continuously adjustable between 1.25V and 32V, with default output at 17V.
Output current: Maximum 5A (use below 4.5A is recommended for greater safety).
Maximum power: 75W, with recommended continuous use below 50W to avoid overheating.
Built-in protections: Short-circuit and overheating, which automatically turns off the output if excess temperature is detected.
Conversion efficiency: Up to 96%, ensuring optimal performance and less energy waste.
Operating frequency: 180KHz for stable regulation.
Easy installation: Includes 4 3mm screws for secure mounting.
Clear terminals: V-IN for input and V-OUT for output.

Typical uses:

As a power module with overcurrent protection for electronics projects.
As a battery charger by adjusting the required voltage and current.
LED controller with precise power regulation.

Important note: For outputs above 3A or 35W, it is recommended to install the included heatsink to avoid heat damage.

This converter is a reliable unit for those looking for an adjustable power supply with integrated voltage and current measurement, making real-time monitoring and device protection easier.

Input voltage: 5-36V compatible with various power supplies.
Adjustable output voltage from 1.25V to 32V for maximum flexibility.
Maximum output current of 5A, recommended use below 4.5A.
Maximum power of 75W, with recommended continuous use below 50W.
Automatic short-circuit and overheating protection.
High conversion efficiency up to 96%.
Operating frequency of 180KHz for stability.
Includes screws for secure installation.
Clearly marked V-IN and V-OUT terminals.
Ideal for Arduino projects, LED controllers and battery chargers.

Customer Questions & Answers

What are the main advantages of this DC-DC converter compared with fixed-output models or those without an integrated voltmeter/ammeter?

This converter allows the output to be adjusted between 1.25 V and 32 V with a maximum current of 5 A, which makes it more versatile than fixed-voltage models. It also integrates a digital voltmeter and ammeter, making real-time monitoring easier without the need for external instruments, which improves accuracy and control in laboratory or prototype applications.

What operating limits should I observe to ensure durability and avoid overheating?

For safe, long-term operation, keep the output below 4.5 A and 50 W continuous. If you expect loads above 3 A or 35 W, use the included heatsink. The recommended operating ambient temperature is between -40 °C and 85 °C, although a cool, ventilated environment will extend service life.

How accurate is the integrated voltmeter and ammeter compared with a standard multimeter?

Average accuracy is ±1% for the voltmeter and approximately ±2% for the ammeter under laboratory conditions. If high accuracy is required, it is advisable to calibrate with certified instruments, as slight deviations may occur due to component tolerances.

What is the adjustable output voltage range?

The converter allows the output voltage to be adjusted continuously from 1.25V to 32V.

What protection does the converter offer?

It has short-circuit and overheating protection that automatically turns off the output in case of excess temperature.

Can it be used to charge batteries?

Yes, it can be used as a battery charger by adjusting the appropriate voltage and current.

Is it necessary to install a heatsink?

It is recommended to install the included heatsink if the output exceeds 3A or 35W to avoid overheating.

What is the device's conversion efficiency?

The conversion efficiency can reach up to 96%, ensuring efficient use of energy.
