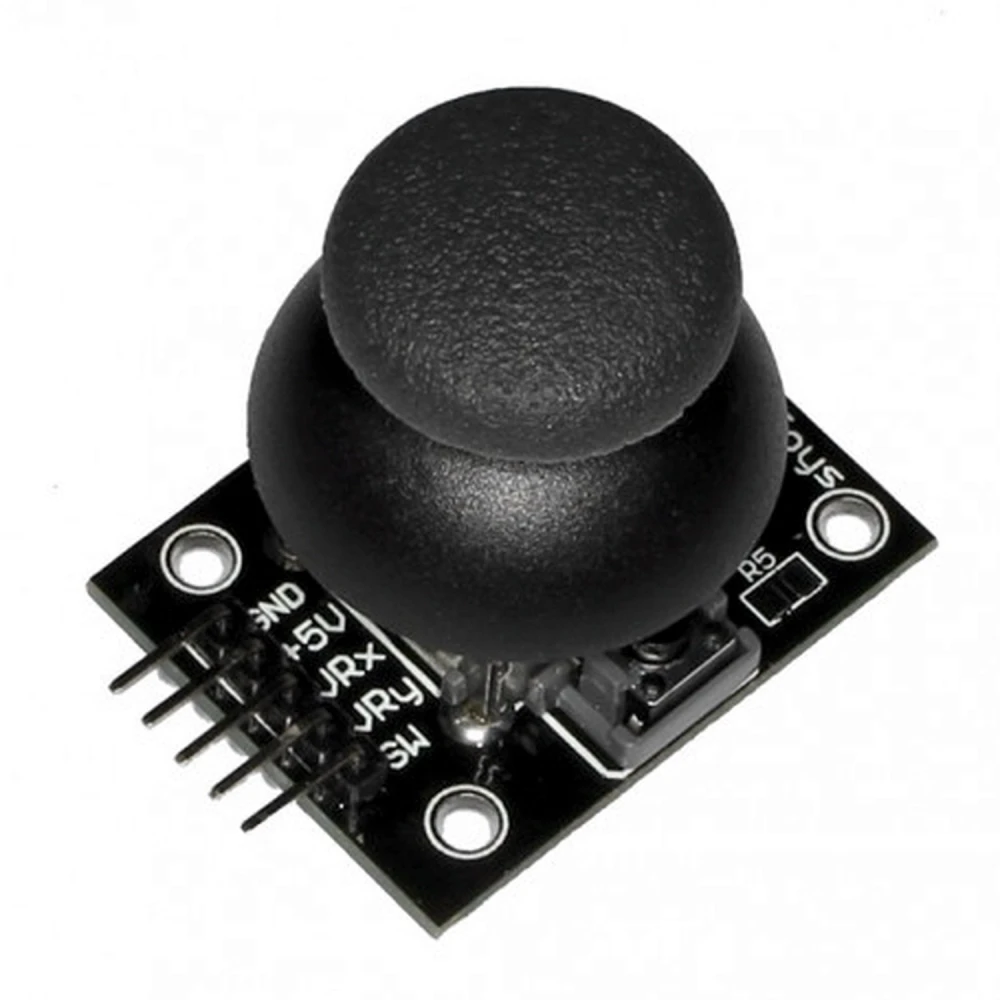

Arduino Joystick: 2-Axis Joystick Module for Arduino Projects
Brand: satkit
Save 4% Was: 2.46 €
2.36€
VAT included (Ex VAT: 1.92 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 2.36 € | -4% |
| 10+ | 2.24 € | -9% |
| 20+ | 1.85 € | -25% |
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The Arduino Joystick is a compact module designed to make it easy to integrate a 2-axis joystick with a push button into Arduino-based electronic projects. This small device provides precise analogue control through its X and Y axes and a central push button, ideal for creating intuitive user interfaces and controls for games or interactive applications.
- Two axes (X-Y): Allows analogue reading of horizontal and vertical movements.
- Self-centring: The joystick automatically returns to the centre position when not being used, ensuring precise control.
- Central push button: Includes a button that can be connected to any digital input/output (IO) pin for additional functions.
- Compact dimensions: 4 cm wide, 2.6 cm long and 3.2 cm high, ideal for projects with limited space.
- Connectors: Includes pins for +5Vcc, GND, VRx (X axis), VRy (Y axis) and SW (push button), compatible with most Arduino boards.
This joystick module is perfect for projects that require analogue control, such as game controllers, user interfaces, robots and navigation systems. Its easy connection to Arduino analogue and digital pins makes it accessible for both beginners and advanced users.
Compatibility: Compatible with any Arduino board that has analogue and digital inputs, making it easy to integrate into a wide range of electronic projects.
With this joystick for Arduino, you can improve the interactivity and control of your projects, adding functionality and precision in a compact, easy-to-use format.
- 2-axis joystick (X-Y) with automatic return to centre
- Integrated central push button for additional functions
- Compact dimensions: 4 x 2.6 x 3.2 cm
- Standard connectors: +5Vcc, GND, VRx, VRy, SW
- Compatible with Arduino boards with analogue and digital pins
Customer Questions & Answers
What benefits does the centre return on the Arduino Joystick axes offer compared with other models without this function?
The centre return ensures that when the lever is released, both axes (X and Y) automatically return to their neutral position. This simplifies programming and improves accuracy in control applications, as the centre value is predictable. Models without centre return require additional handling and calibration to avoid drift or erratic values.
What are the dimensions and weight of the Arduino Joystick, and what is included in the package when purchased?
The Arduino Joystick measures 40 mm wide, 26 mm long and 32 mm high. The typical module weight is around 15-20 g. The package usually includes only the joystick module, with no cables or extra accessories.
Which microcontrollers is this joystick module compatible with, and what supply voltage does it require?
The module is compatible with most microcontrollers that have standard analogue and digital inputs (for example, Arduino, ESP32, STM32, Raspberry Pi Pico). It operates from +5 V DC. It is not recommended for direct use with boards that only support 3.3 V without modifying the voltage divider.
Does the Arduino Joystick require calibration or adjustment to obtain accurate X, Y and push-button readings?
Yes, it is recommended to calibrate the minimum and maximum values of the X and Y axes in software, as the analogue range may vary slightly due to mechanical and electrical tolerances. The centre push-button generally provides a stable digital signal without any additional adjustment.
What is the estimated lifespan of the mechanism and what specific care is required to keep it working optimally?
The joystick has an estimated lifespan of several tens of thousands of cycles, depending on the typical manufacturer of this type of module. To ensure optimal operation, avoid strong impacts, do not apply extreme lateral force to the shaft, and keep the surface free from dust and moisture.
How do I connect the Arduino Joystick to an Arduino board?
It connects using the +5Vcc and GND power pins, and the VRx and VRy pins to analogue inputs to read the axes, while the push button connects to a digital input/output pin.
What are the dimensions of the Arduino Joystick module?
The module measures 4 cm wide, 2.6 cm long and 3.2 cm high.
Is it compatible with all Arduino boards?
Yes, it is compatible with any Arduino board that has analogue and digital inputs to connect the axes and the push button.
What type of projects is this joystick ideal for?
It is ideal for game controller projects, user interfaces, robotics and any application that requires analogue control and a push button.
