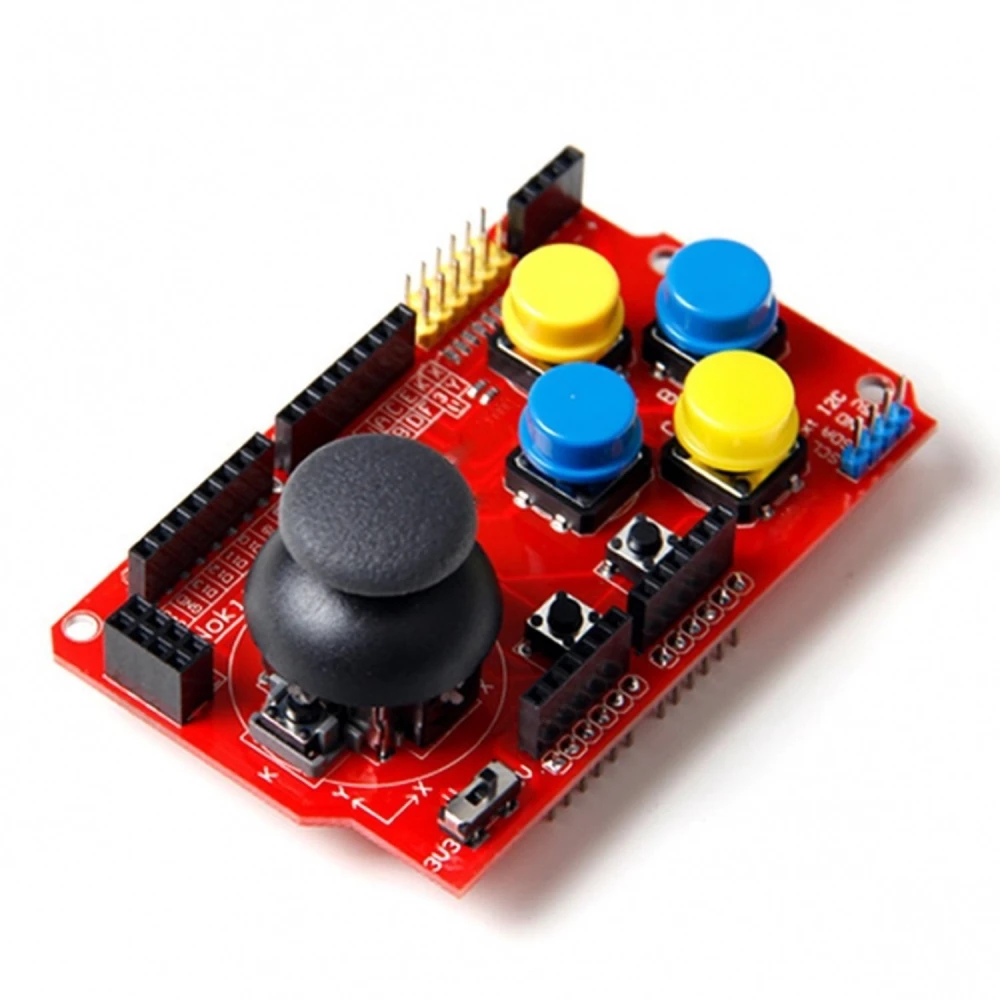

The Arduino Joystick Shield is a board specially designed to make it easier to develop games and interactive projects on Arduino boards. This shield includes an analogue joystick and three buttons that provide precise and versatile control in your applications.

Main features:

Integrated analogue joystick for directional control.
Three additional buttons for custom actions.
Compatible with Arduino Uno and Mega boards, making it easy to integrate into a wide range of projects.
Connections for wireless modules: RF24L01, Bluetooth and I2C communication, expanding wireless communication options.
Selectable operating voltage between 3,3V and 5V to suit different hardware needs.
Compact dimensions of 8.7 cm x 5.4 cm x 1.8 cm, ideal for projects with limited space.

Typical uses:

Development of video games and custom controls in Arduino projects.
Implementation of user interfaces for robots and interactive devices.
Rapid prototyping of control systems with joystick and physical buttons.
Integration into projects that require wireless communication via RF24L01, Bluetooth or I2C.

Compatibility: This shield is compatible with Arduino Uno and Mega boards, ensuring easy connection and use without the need for additional adapters.

With this board, you can add intuitive physical controls to your Arduino projects, making interaction easier and improving the user experience in your developments.

Integrated analogue joystick for directional control
Three buttons for custom actions
Compatible with Arduino Uno and Mega
Connections for RF24L01, Bluetooth and I2C
Selectable voltage of 3,3V or 5V
Dimensions: 8.7 cm x 5.4 cm x 1.8 cm

Customer Questions & Answers

What are the exact dimensions and weight of the Arduino Joystick Shield, and what is included in the package at the time of purchase?

The board dimensions are 87 mm × 54 mm × 18 mm (length × width × height). Approximate weight is 32 g. The standard package includes only the assembled shield, without cables or additional wireless modules.

How is the shield mounted on the Arduino, and are there any recommendations to avoid damage from incorrect connection?

Installation is straightforward: insert the shield into the headers on the Arduino board, making sure all pins match and are fully aligned. It is recommended to check the orientation before powering up and to select the correct voltage to avoid possible damage from overvoltage on connected modules.

What operational limits does the joystick have in terms of accuracy and durability in demanding applications?

The standard analogue joystick supports an approximate functional angular range of ±22° per axis, with an average lifespan of 100,000 cycles. Accuracy is determined by the Arduino board's AD converter (typically 10 bits); for high-precision or intensive-use applications, it may be advisable to consider industrial joysticks.

Which Arduino boards is the Arduino Joystick Shield compatible with?

It is compatible with Arduino Uno and Arduino Mega boards.

What voltage options does this board support?

It supports selectable voltages of 3,3V and 5V.

What wireless connections does the shield include?

It includes connections for RF24L01 modules, Bluetooth and I2C communication.

What is this board mainly used for?

It is used for game development and interactive projects with a joystick and buttons on Arduino.
