6.00 €
In Stock

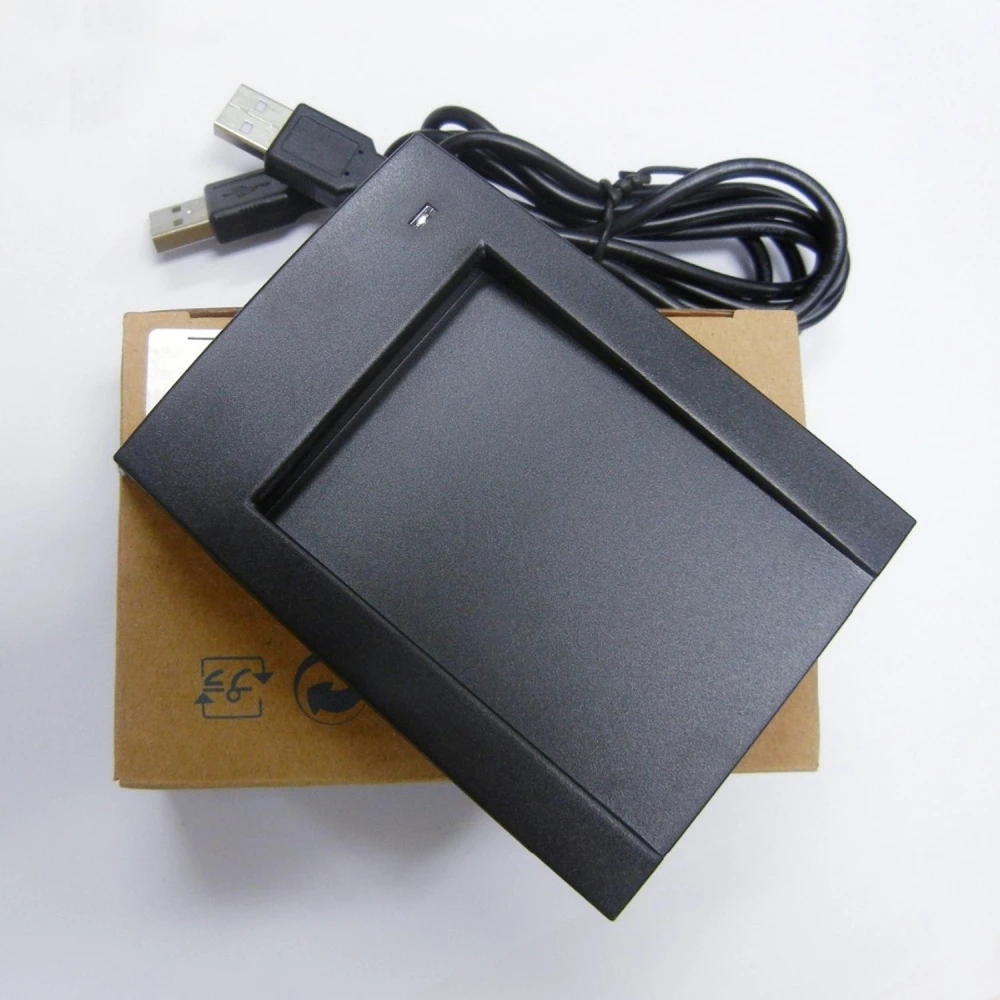

USB RFID Reader 125KHz EM4100 for Access Control and Electronics Projects
Brand: satkit
Save 2% Was: 6.15 €
6.00€
VAT included (Ex VAT: 4.88 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 5.90 € | -4% |
| 10+ | 5.60 € | -9% |
| 20+ | 4.92 € | -20% |
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
USB RFID Reader 125KHz EM4100 is a module designed for reading RFID cards in the 125 KHz band, compatible with EM4100 cards. This reader connects easily to any device via its USB interface with an integrated female A-type connector, offering a practical solution for access control systems, attendance tracking and other electronic projects that require radio frequency identification.
Main features:
- Operating frequency: 125 KHz, compatible with EM4100 cards.
- USB interface with integrated female A connector on the module for direct connection.
- Status indicator LED for easy visual confirmation of reading.
- USB cable included for quick and easy installation.
- Compact format suited to the size of RFID cards, with dimensions of 110 x 80 x 26 mm.
- Operating voltage of 5 VDC supplied through the USB port.
- Low power consumption, less than 100 mA.
- Approximate reading distance of 0 to 8 cm, suitable for proximity applications.
Typical uses:
- Access control in offices, buildings and events.
- Attendance and time tracking in work or educational environments.
- Integration into electronic projects and Arduino-based systems that require RFID identification.
- Development of security and monitoring systems with radio frequency identification.
Compatibility: The USB RFID Reader 125KHz EM4100 is compatible with EM4100 cards and can be easily integrated into systems that support USB connection without the need to install additional drivers, making it easy to use across multiple platforms and projects.
This device is ideal for users looking for an affordable, efficient and easy-to-install RFID reader for their electronic projects or access control systems.
- 125 KHz frequency compatible with EM4100 cards
- USB interface with integrated female A connector
- Status LED for visual confirmation
- Includes USB cable for immediate connection
- 5 VDC operating voltage via USB port
- Less than 100 mA consumption for energy efficiency
- Reading distance of up to 8 cm
- Compact 110 x 80 x 26 mm format suited to RFID cards
Customer Questions & Answers
Which operating systems is the 125 KHz EM4100 USB RFID reader compatible with?
The 125 KHz EM4100 USB RFID reader does not require specific drivers and generally works as a HID keyboard, so it is compatible with standard operating systems such as Windows, macOS and most Linux distributions. However, functionality may vary on embedded systems or very old versions.
What exactly is included in the box, and what are its physical dimensions?
The box includes the USB RFID reader, a USB cable and a basic manual. The reader measures 110 mm x 80 mm x 26 mm, which is a compact format suited to the size of an RFID card.
What maintenance does the reader require, and what service life can be expected under normal conditions?
Maintenance is minimal: simply clean the outer surface periodically to prevent dust build-up and ensure the USB connection is correct. It has no moving parts, so its service life exceeds 100,000 read cycles under standard conditions.
How does this reader compare with higher-frequency models, such as 13.56 MHz units, in terms of security and speed?
125 kHz readers like this one offer similar read speed, but in terms of security, 13.56 MHz readers (for example, MIFARE) usually provide better support for encryption and advanced authentication. This model is suitable for basic access control applications where high encryption standards are not required.
Does the USB RFID Reader 125KHz EM4100 need driver installation?
No, this RFID reader works without needing to install drivers, making it ready to use as soon as it is connected via USB.
What type of cards is this RFID reader compatible with?
It is compatible with EM4100 RFID cards operating at 125 KHz.
What is the maximum reading distance of the reader?
The maximum reading distance is approximately 8 centimetres.
Can this RFID reader be used for Arduino projects?
Yes, it is compatible for integration into electronic projects and Arduino-based systems that require RFID card reading.
What is included in the product package?
It includes the RFID reader module with female A-type USB connector and a USB cable for connection.
