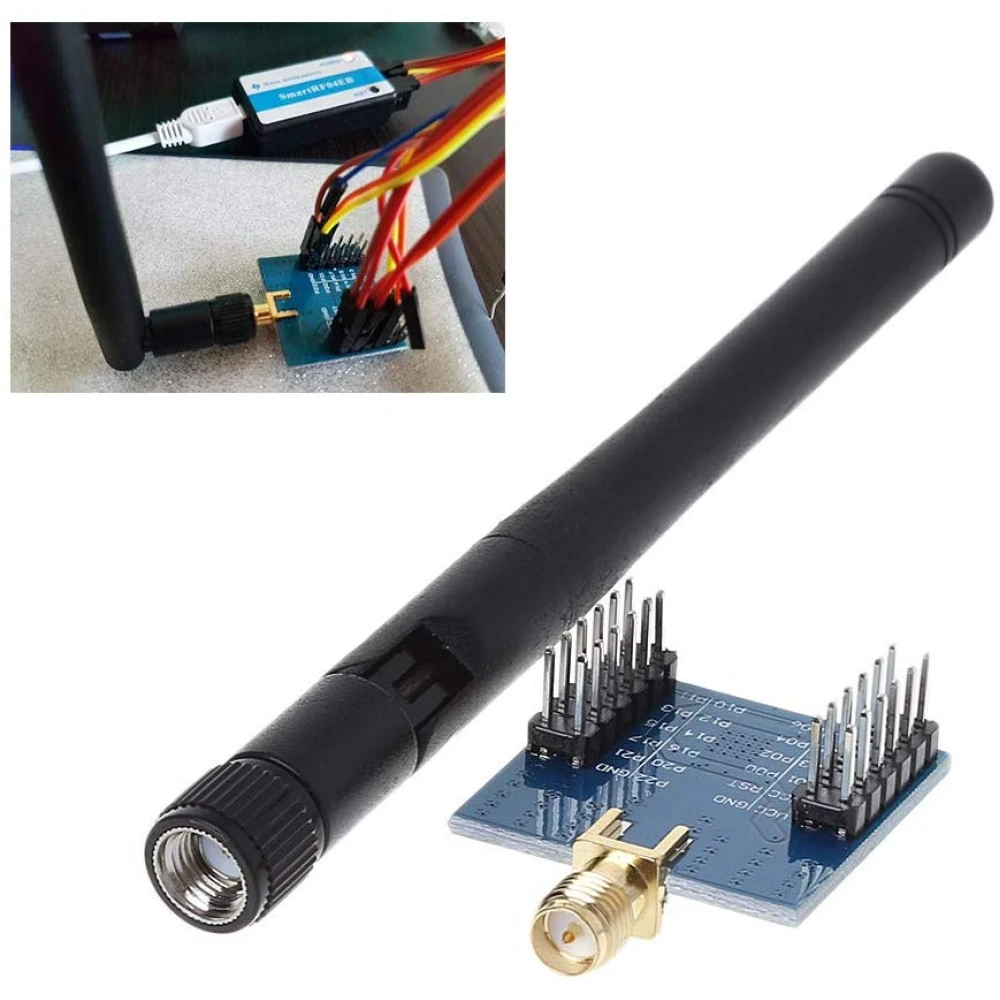

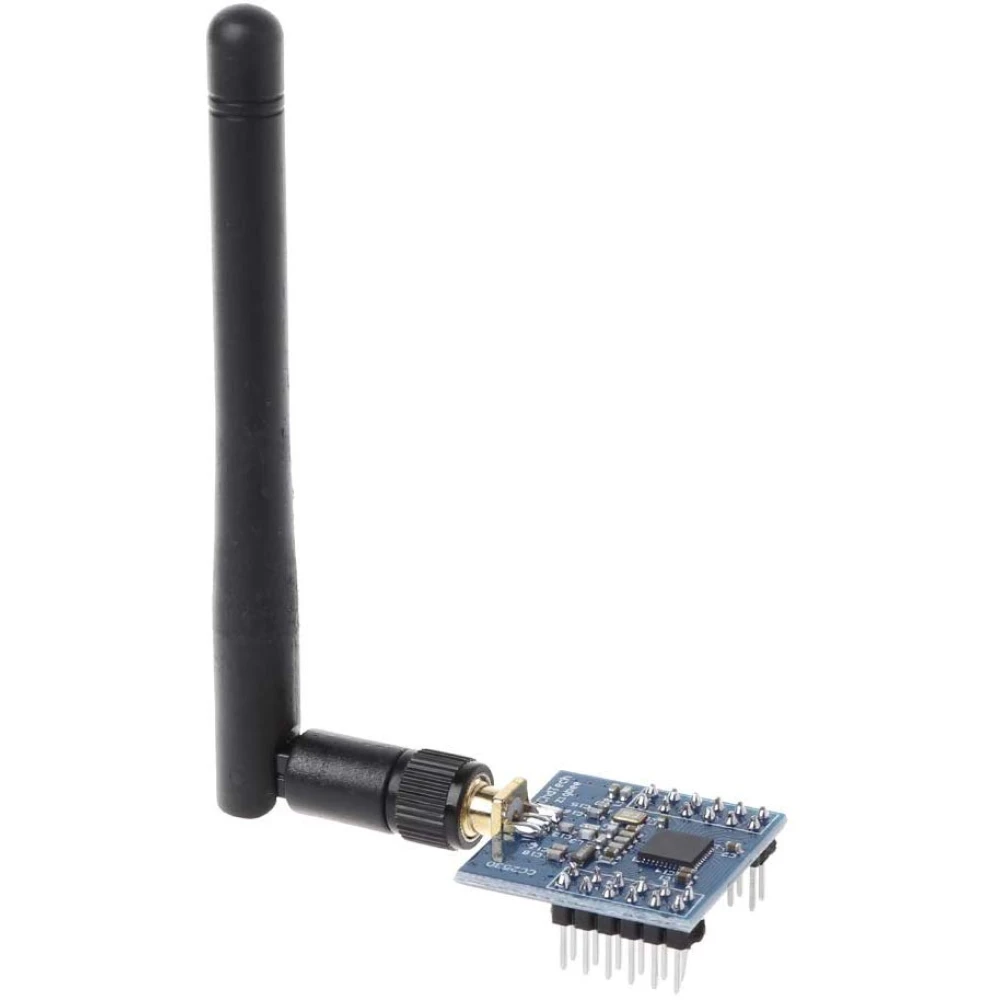

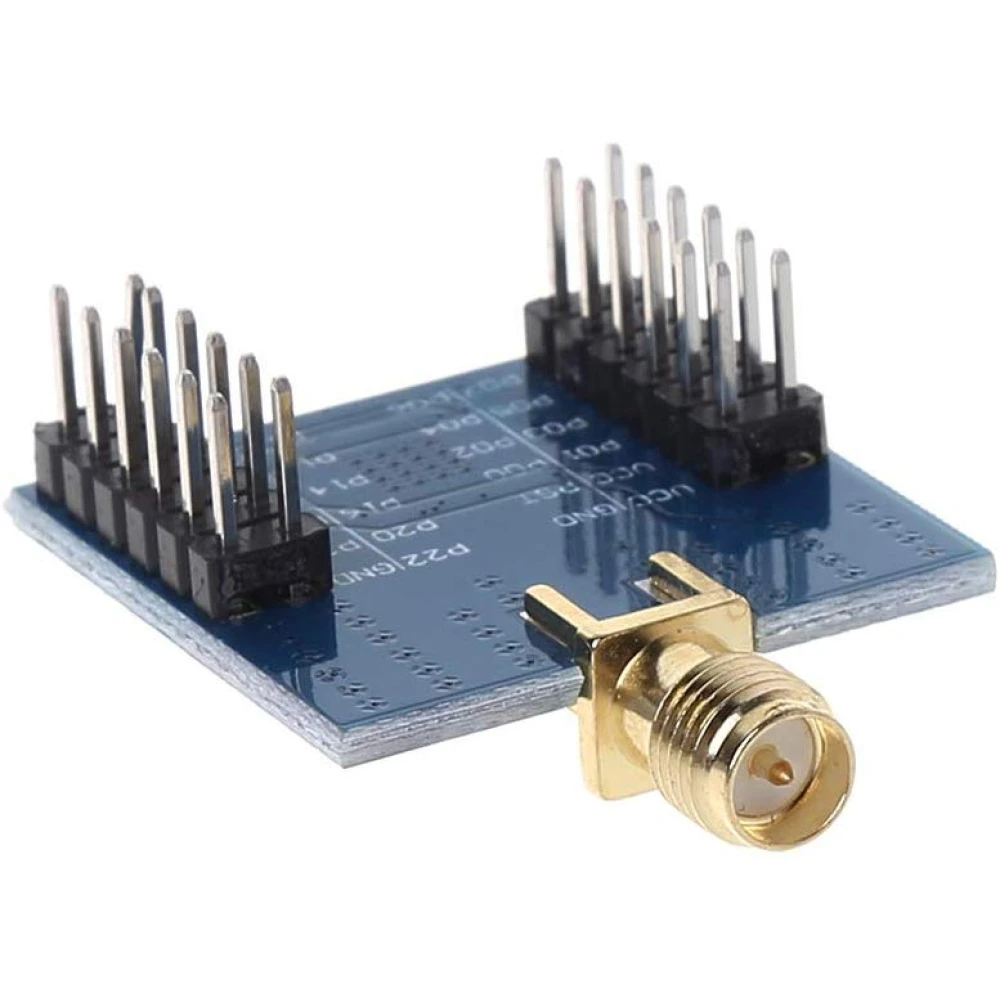

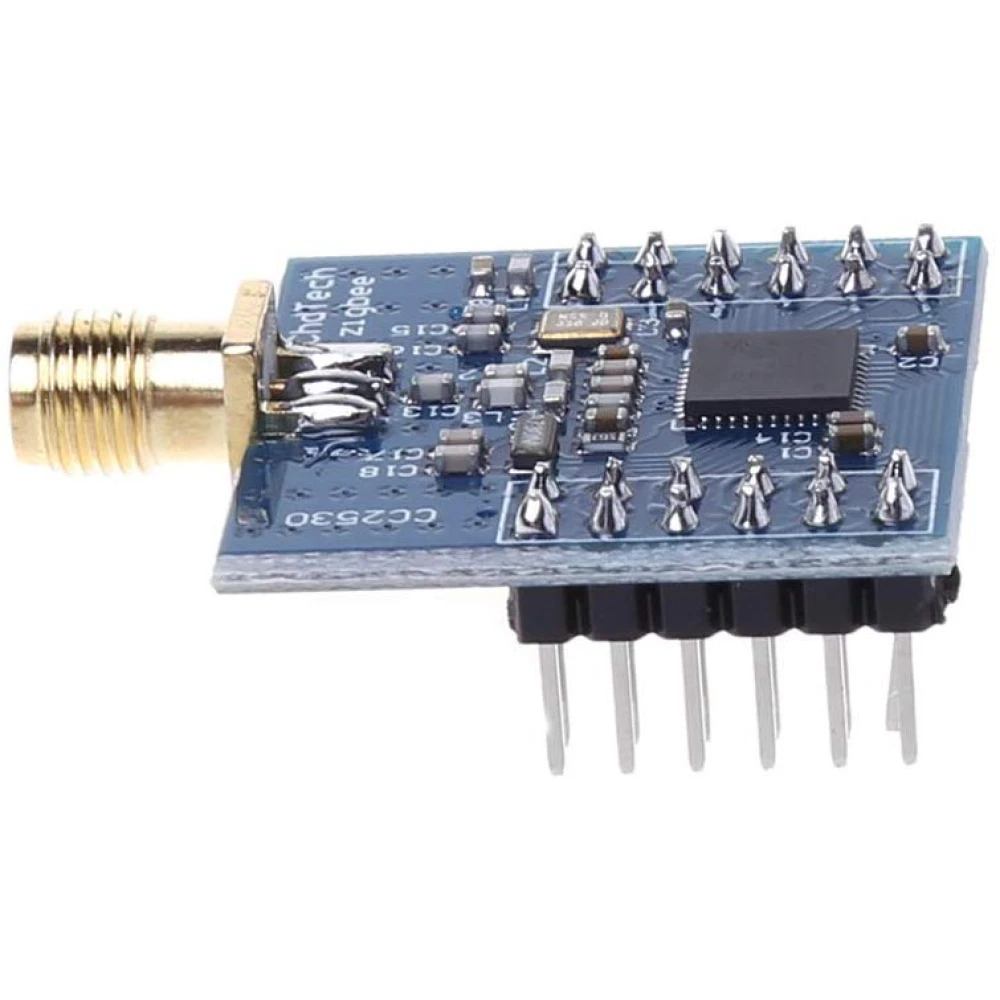

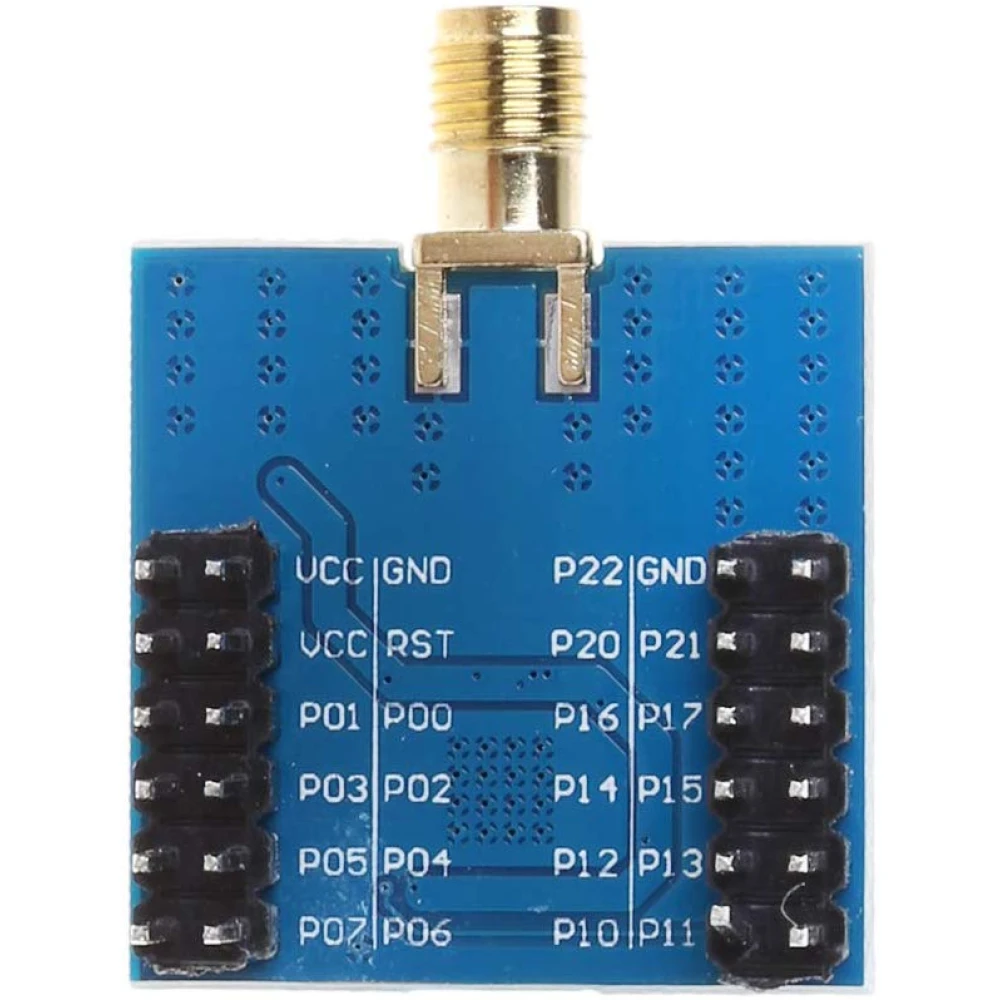

CC2530 Zigbee Development Board for Smart Home Automation

The CC2530 Zigbee development board is a wireless core module designed for applications in smart home automation systems and wireless sensor networks. Compatible with the IEEE 802.15.4 standard at 2.4 GHz, this development kit is perfect for those looking to implement efficient and reliable Zigbee solutions.

Key features:

• RF transceiver compatible with 2.4-GHz IEEE 802.15.4 for robust wireless communications.
• Excellent receiver sensitivity and interference resistance, ensuring a stable signal.
• Programmable output power up to 4.5 dBm to suit different communication ranges.
• Design with very few external components, making it easy to integrate into custom projects.

Technical specifications:

• Operating frequency: 24 MHz.
• Flash memory: up to 256 KB for storing complex programs.
• SRAM memory: 8 KB.
• 21 GPIO pins for multiple connections and sensors.
• Interfaces: 1 SPI, 1 UART for communication with other devices.
• 12-bit ADC with 8 channels for accurate analogue reading.
• Operating voltage: minimum 2V, maximum 3.6V.
• Standby current: 0.4 µA, ideal for low-power projects.
• Wake-up time from standby: 500 µs.
• Operating temperature range: -40°C to 125°C.
• Support for RF standards: ZigBee, 6LoWPAN, 802.15.4 MAC.
• CPU Core: 8051.
• 128-bit AES security for secure communications.

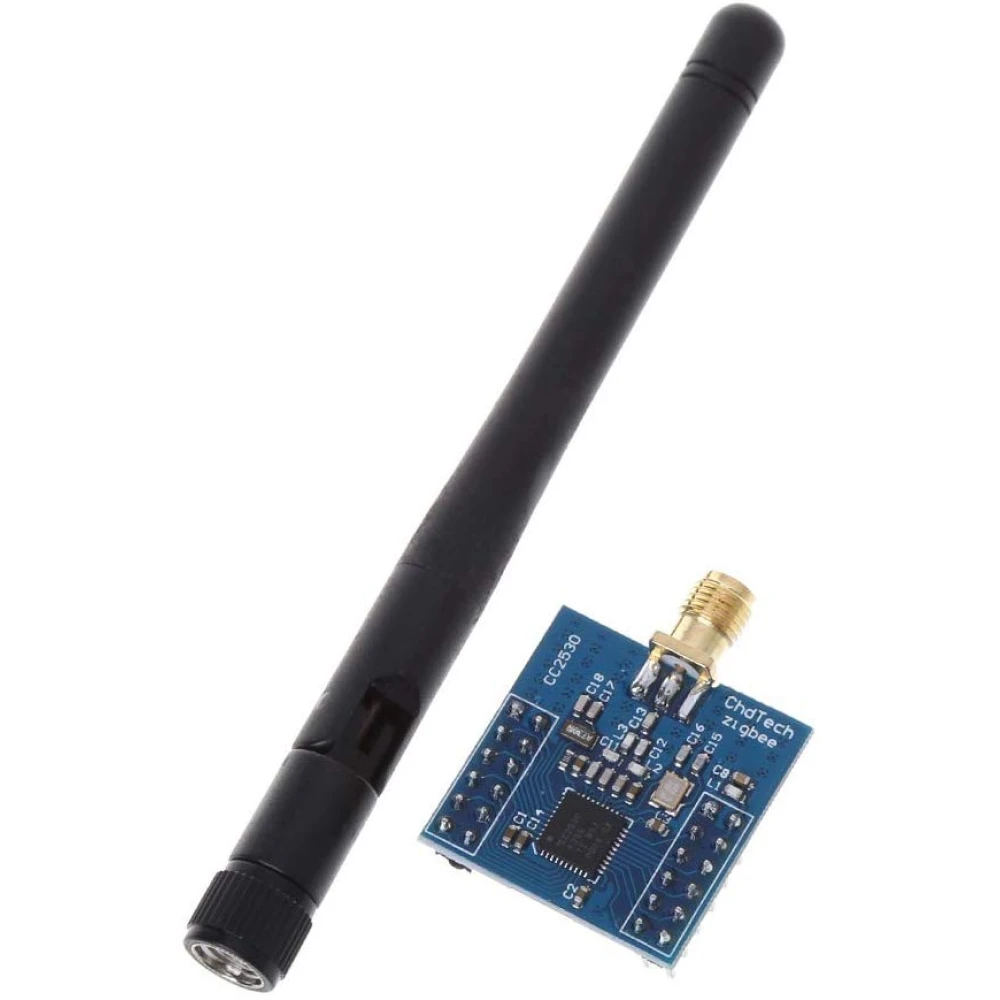

• Antenna connection included.
• Receive current: 20.5 mA in low power.

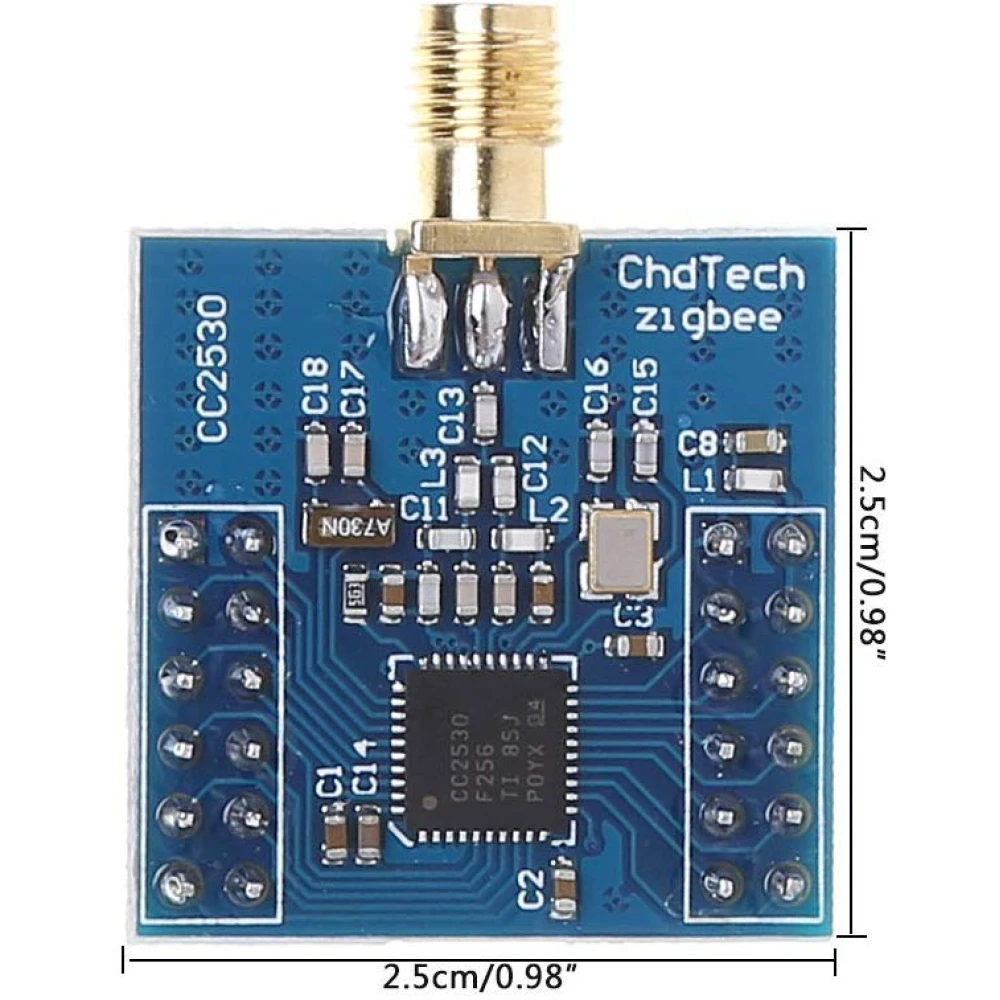

• Compact dimensions: 2.5 x 2.5 cm.

Typical applications:

• Smart home automation.
• Wireless lighting control systems.
• Industrial control and monitoring.
• Low-power wireless sensor networks.
• Consumer electronics and IoT devices.
• Healthcare solutions with wireless communication.

Compatibility and use:

This kit is compatible with Arduino platforms to make integration into development projects easier. It is especially useful for developers who want to implement Zigbee systems for smart homes, remote control and sensor networks. Its compact design and low power consumption make it ideal for portable devices and long-life applications.

Package contents:

• 1 set of CC2530 development board (no retail package).

• RF transceiver compatible with 2.4 GHz IEEE 802.15.4
• Flash memory up to 256 KB and 8 KB SRAM
• 21 GPIO pins and 1 SPI, 1 UART for connections
• 12-bit ADC with 8 channels for analogue readings
• Operating voltage between 2V and 3.6V
• Low standby consumption: 0.4 µA
• Temperature range from -40°C to 125°C
• 128-bit AES security for communications
• Compact dimensions of 2.5 x 2.5 cm
• Ideal for home automation and Zigbee networks
