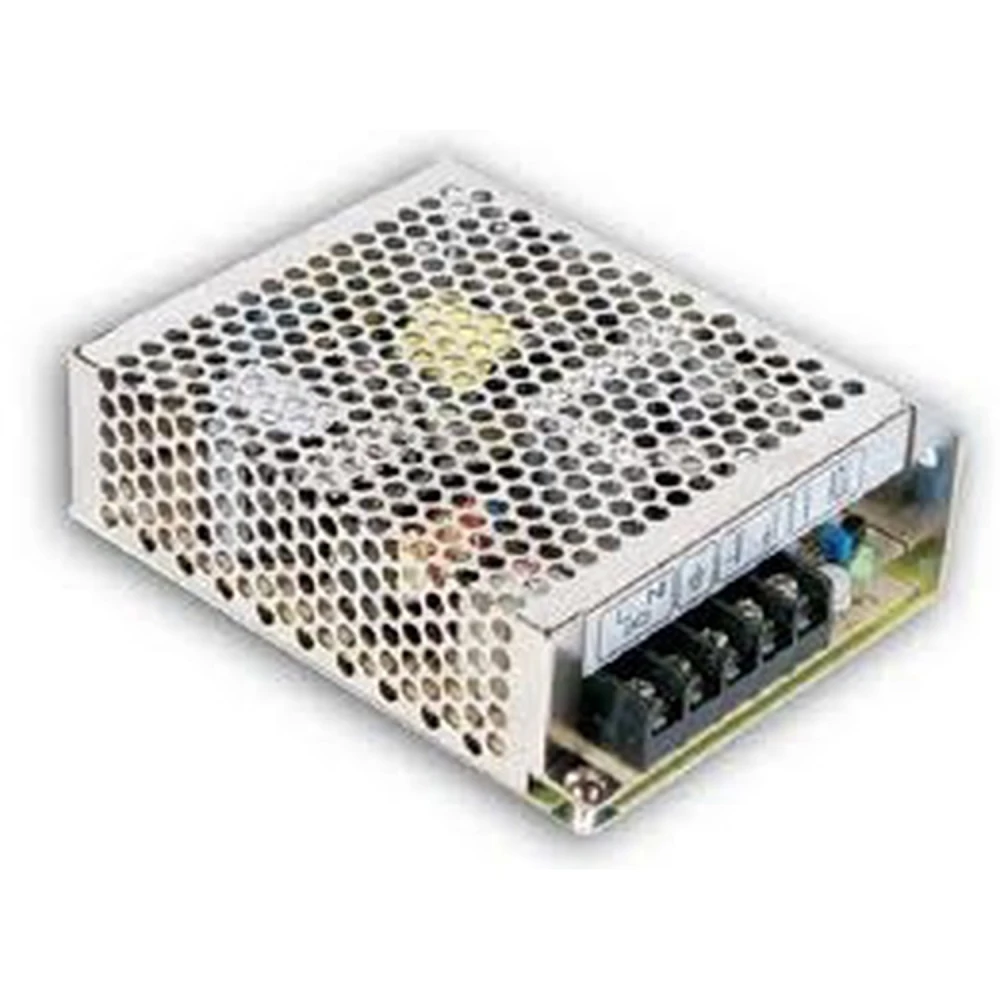

Meanwell NES-50-24 24V 2.2A power supply for soldering stations
Brand: satkit
VAT included (Ex VAT: 15.00 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 17.71 € | -4% |
| 10+ | 17.16 € | -7% |
| 20+ | 15.31 € | -17% |
Meanwell NES-50-24 (24V-2.2A) power supply is a device designed to provide stable and efficient power to electronic equipment, especially soldering and reballing stations. This switched-mode power supply offers a single 24V output and a maximum current of 2.2A, with a maximum output power of 52.8W, making it suitable for applications that require a reliable power supply.
Main features:
- Family: NES-50
- Maximum output power: 52.8W
- Typical efficiency: 86%
- Number of outputs: 1
- Minimum isolation voltage: 3000V
- Input frequency: 47Hz to 63Hz
- Approvals: UL, CUL, CE, CB
- Operating temperature range: -20°C to 60°C
- Output connector: Screw terminal block
- Dimensions: 38mm (high) x 129mm (long) x 98mm (wide)
- Product type: Switched AC to DC power supply
- Input voltage: 85V to 264V
- Output voltage: 24V
- Maximum output current: 2.2A
- Maximum input current: 1.1A (typical)
This power supply is ideal for use in soldering stations and electronic equipment that require a reliable and efficient power source. Its compact and robust design allows easy integration into existing systems. In addition, it includes international certifications that guarantee safety and quality.
Typical uses:
- Power supply for soldering and reballing stations.
- Power for electronic equipment and devices that require 24V DC.
- Industrial and laboratory applications where a stable and efficient power supply is needed.
Compatibility: Compatible with any equipment that requires a power supply with a 24V output and current up to 2.2A, especially soldering stations and electronic tools.
Note: This product is currently out of stock. Please check availability or alternatives in our store.
*** image for illustration only ***
- Maximum output power: 52.8W
- 86% typical efficiency for energy savings
- Single 24V output and maximum current of 2.2A
- Wide input voltage range: 85V to 264V
- UL, CUL, CE and CB certifications for quality and safety
- Compact design: 38mm x 129mm x 98mm
- Operating temperature from -20°C to 60°C
- Screw terminal block output connector
Customer Questions & Answers
What electrical protections does it include and under which safety standards is it certified?
The NES-50-24 includes standard protections: overload, short circuit and output overvoltage, as well as a minimum 3000V isolation. It is certified under UL, CUL, CE and CB, complying with international safety regulations for industrial power supplies.
What are the operating limits in extreme conditions and how does temperature affect performance?
It operates in a range of -20 °C to 60 °C. Above 50 °C, the maximum output current may require derating (linear reduction) to avoid overheating and efficiency losses. At extreme temperatures, efficiency and service life may be affected.
What maintenance is required and are spare parts available for critical components?
Recommended maintenance is visual inspection, dust cleaning and periodic checking of connections. No active maintenance is required. Spare parts for internal components are not usually commercially available; the complete unit is replaced if a critical component fails.
What is the maximum output current of the Meanwell NES-50-24 power supply?
The maximum output current is 2.2 amps.
What output voltage does this power supply provide?
It provides an output voltage of 24 volts.
Is this power supply suitable for soldering stations?
Yes, it is specially designed for soldering stations and similar electronic equipment.
What are the product dimensions?
It measures 38 mm high, 129 mm long and 98 mm wide.
Is this product currently available?
The product is currently out of stock. It is recommended to check alternatives or future availability.
