Variable output variac transformer 0-250V 2A TDGC2-0.5KVA for industrial and lab use

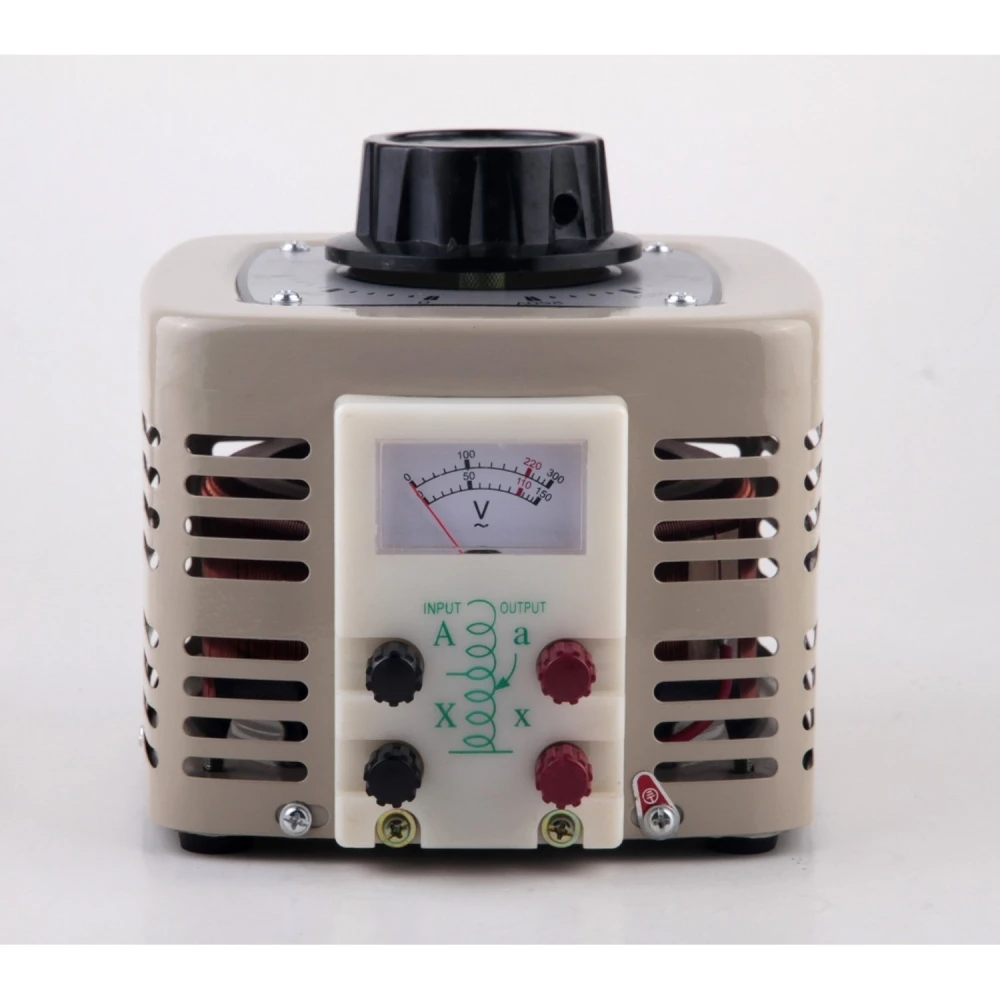

Variac transformador de salida variable 0-250V 2A TDGC2-0.5KVA vista lateral con bornes de conexión

Variac transformador de salida variable 0-250V 2A TDGC2-0.5KVA vista trasera con bornes y panel de control

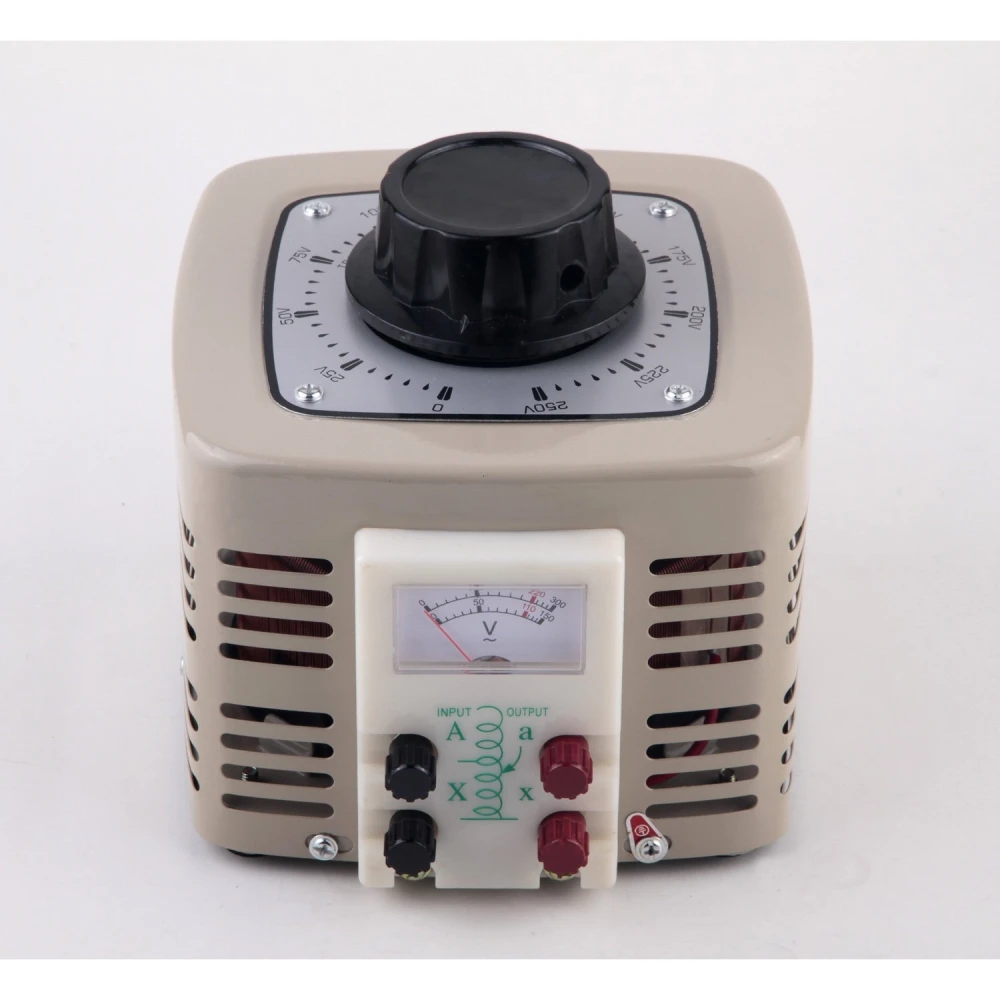

Variac transformador de salida variable 0-250V 2A TDGC2-0.5KVA en uso en laboratorio

Variable output variac transformer 0-250V 2A TDGC2-0.5KVA for industrial and lab use

Name: Variable output variac transformer 0-250V 2A TDGC2-0.5KVA for industrial and lab use
Brand: satkit
SKU: A010106-VARIAC-TDGC2-0.5K
Price: 40.50 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

Save 9% Was: 44.28 €

40.50€

VAT included (Ex VAT: 32.93 €)

Volume Discounts

Quantity	Price	Save
2+	42.51 €	-4%
10+	41.18 €	-7%
20+	37.64 €	-15%

Only 1 left in stock - order soon!

Standard delivery Fri, May 1 - Tue, May 5

Express delivery Wed, Apr 29 - Thu, Apr 30

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The Variac transformer variable output 0-250V 2A TDGC2-0.5KVA is a variable output transformer designed for industrial and laboratory applications, allowing you to adjust the output voltage precisely and safely. With a capacity of 0,5 KVA and a maximum current of 2 amperios, this variac is an essential tool for testing and controlling electronic equipment.

On the front panel, it features an analogue voltmeter that makes it easy to read the output voltage in real time, as well as two sets of terminals compatible with spade connectors for simple and secure connection to both the power supply and the equipment under test. Please note that the product does not include power or connection cables.

Main features:

Maximum output of 2 amperios for efficient current control.
Variable output transformer with rated power of 500VA (0,5 KVA).
Standard input voltage of 220VAC with frequency of 50Hz.
Adjustable output voltage from 0 to 250VAC.
Analogue voltage meter for accurate monitoring.
On/off switch with LED indicator for easy operation.
Approximate weight of 3,5 kg and compact dimensions of 160mm x 130mm x 130mm.

Typical applications:

Testing power supplies and electronic equipment.
Speed control in electric motors.
Industrial automation and control.
Testing telecommunications and satellite equipment.
Use in laboratories for experimentation and development.
Vacuum tube guitar amplifiers and hi-fi amplifiers.
Lighting control and dimming stages.
Applications in coffee grinders and other equipment that require voltage regulation.

Compatibility and use

This variac is compatible with any equipment operating within the specified voltage and current range, making it especially useful in environments where variable and safe control of the supply voltage is required. Its robust and functional design makes it suitable for continuous use in laboratories and technical workshops.

For installation, it is recommended to use cables and connectors suitable for the maximum current of 2 amperios and to ensure that the power supply is 220VAC at 50Hz.

Maximum output of 2 amps for efficient control.
Rated power of 500VA (0,5 KVA).
Input voltage: 220VAC, 50Hz.
Adjustable output voltage from 0 to 250VAC.
Built-in analogue voltmeter.
On/Off switch with LED indicator.
Approximate weight: 3,5 kg.
Dimensions: 160mm x 130mm x 130mm.

Customer Questions & Answers

What are the dimensions, weight and construction materials of the Variac TDGC2-0.5KVA?

The approximate dimensions of the Variac are 160 mm x 130 mm x 130 mm and it weighs 3.5 kg. The chassis is metal, providing robustness and better heat dissipation. The transformer core and internal windings are made of silicon steel and standard enamelled copper used in the industry.

For which specific applications is this transformer not recommended, considering its current and voltage limits?

It is not recommended for equipment exceeding 2 A continuous consumption at 220-250 VAC (maximum power 500 VA). It is also not suitable for high inrush inductive loads such as large motors, industrial power tools, high-power ovens or three-phase systems. Using it beyond its limits may cause overheating and damage.

How should the Variac TDGC2-0.5KVA be connected and installed correctly to ensure safety and proper operation?

It should be installed on a stable, well-ventilated surface. The input is connected to 220 VAC via fork-type terminals (not included). The variable output is taken from the front panel terminals. It is advisable to use connectors and cables rated at least 2.5 mm² (minimum 2 x 2.5 mm²) and protect the input with a suitable fuse (2.5-3 A). The user must ensure the specified load is not exceeded and that all connections are secure.

What maintenance does this Variac require, and how is it handled if spare parts are needed?

The Variac requires regular dust cleaning, checking of connections and inspection of the brush to ensure proper contact. It is not sealed against dust/water (IP not specified). If the brush or fuses fail, they should be replaced with equivalent references, usually available as spare parts. Internal repair is not recommended without knowledge, as it involves electrical risk.

What is a variable output variac transformer used for?

It is used to adjust and control output voltage in electrical and electronic equipment, allowing testing and precise regulation in laboratories and industry.

What is the maximum current this variac can handle?

This variac supports a maximum output current of 2 amps.

What output voltage range does this transformer offer?

It offers a variable output voltage range from 0 to 250VAC.

Does it include power or connection cables?

No, the product does not include power or connection cables.

Is it suitable for laboratory use?

Yes, it is specially designed for industrial use and in laboratories for testing and controlling electronic equipment.
