LC200A Portable Digital Capacitance and Inductance Meter LCR Meter

The LC200A digital capacitance and inductance meter is a portable tool designed to provide accurate and reliable measurements of capacitance and inductance in electronic components. This LCR meter combines ease of use with a compact, durable design, ideal for technicians, engineers and hobbyists who need a dependable instrument for their projects and repairs.

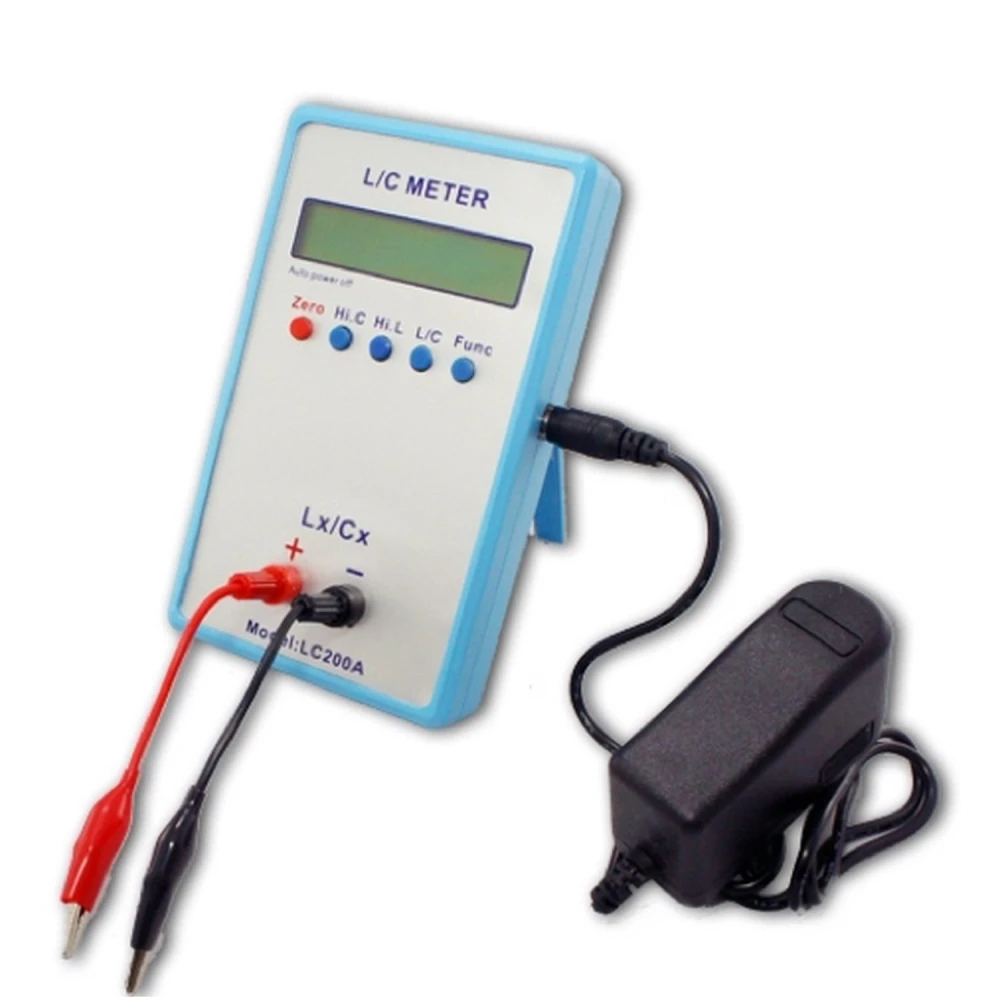

With a blue plastic case made from high-quality components, the LC200A ensures durability and comfortable handling. Its 4-digit 1602 LCD display clearly shows measured values, making them easy to read even in low-light environments.

Main features

• High accuracy: maximum measurement error of only 1%.
• Wide capacitance measurement range: from 0.01 picofarads to 10 microfarads and extended range from 1 microfarad to 100 millifarads.
• Inductance measurement range: from 0.001 microhenries to 100 millihenries, with extended range up to 100 henries.
• Minimum resolution: 0.01 picofarads for capacitance and 0.001 microhenries for inductance.
• Test frequency: L/C over 500 kHz and large inductance over 500 Hz, showing the current test frequency.
• Power supply: 4 x 1.5V batteries or miniUSB cable connection for continuous power.
• Automatic power-off function: switches off after 5 minutes of inactivity to save battery.

Typical uses

The LC200A is ideal for measuring electronic components in soldering stations, repair workshops, laboratories and electronics projects. It allows you to check the capacitance and inductance of capacitors, coils and other elements, making diagnostics easier and helping ensure quality in electronic installations.

Package contents

• 1 x LC200A Portable Digital Capacitance and Inductance Meter
• 1 x crocodile clip test lead

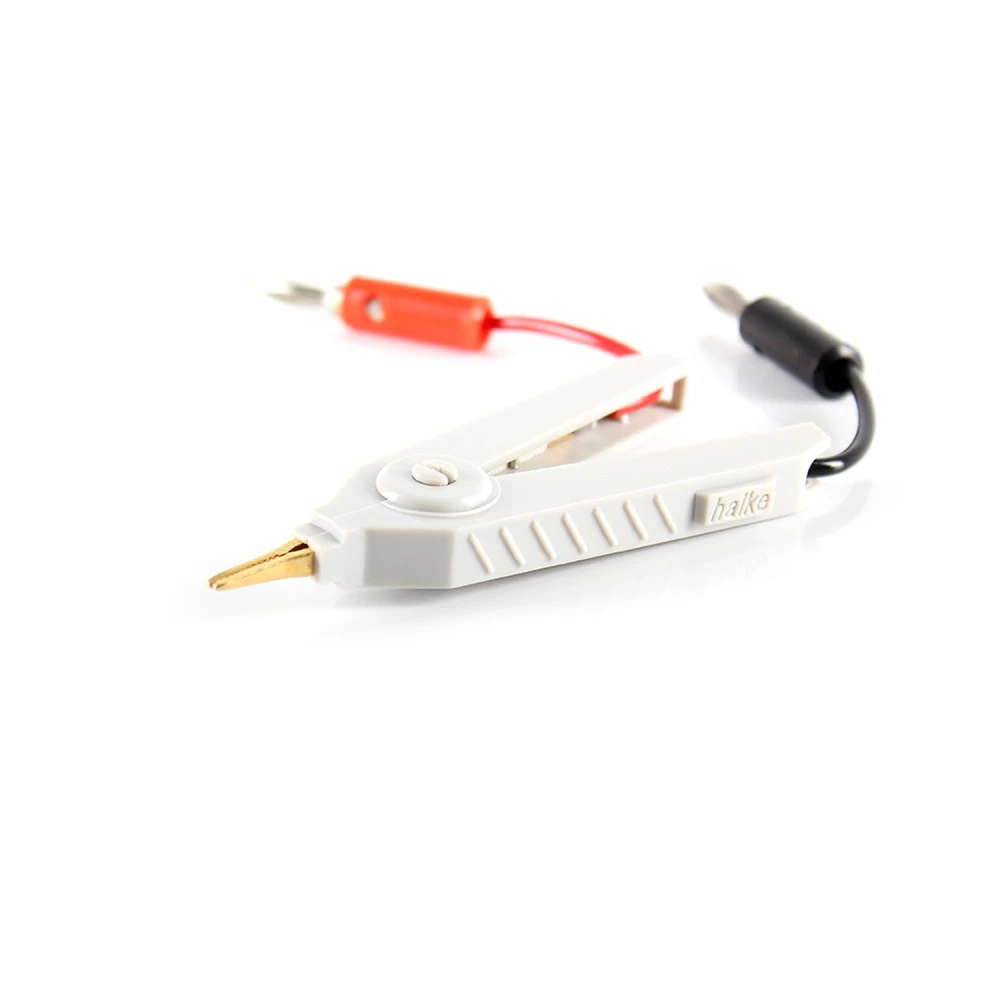

• 1 x SMD test lead (included, unlike other sellers)
• 1 x miniUSB USB cable for power
• 1 x 5V power adapter

Compatibility and recommendations

Before measuring capacitance or inductance, it is recommended to re-zero the meter to obtain accurate results. For extended use, it is preferable to use USB power to avoid battery wear. This meter is compatible with a wide variety of electronic components, making it an essential tool for professional and hobby electronics.

In short, the LC200A is a portable, accurate and versatile meter, perfect for anyone looking for a reliable device for capacitance and inductance measurements in electronics.

• High accuracy with a maximum measurement error of 1%.
• Capacitance range: 0.01 pF to 10 µF, with extended range up to 100 mF.
• Inductance range: 0.001 µH to 100 mH, with extended range up to 100 H.
• 4-digit 1602 LCD display for clear reading.
• Automatic power-off after 5 minutes of inactivity.
• Powered by 4 x 1.5V batteries or miniUSB connection.
• Includes crocodile clip and SMD test leads, miniUSB cable and 5V adapter.
