12V 5A 60W Transformer - High-Quality AC to DC Power Supply

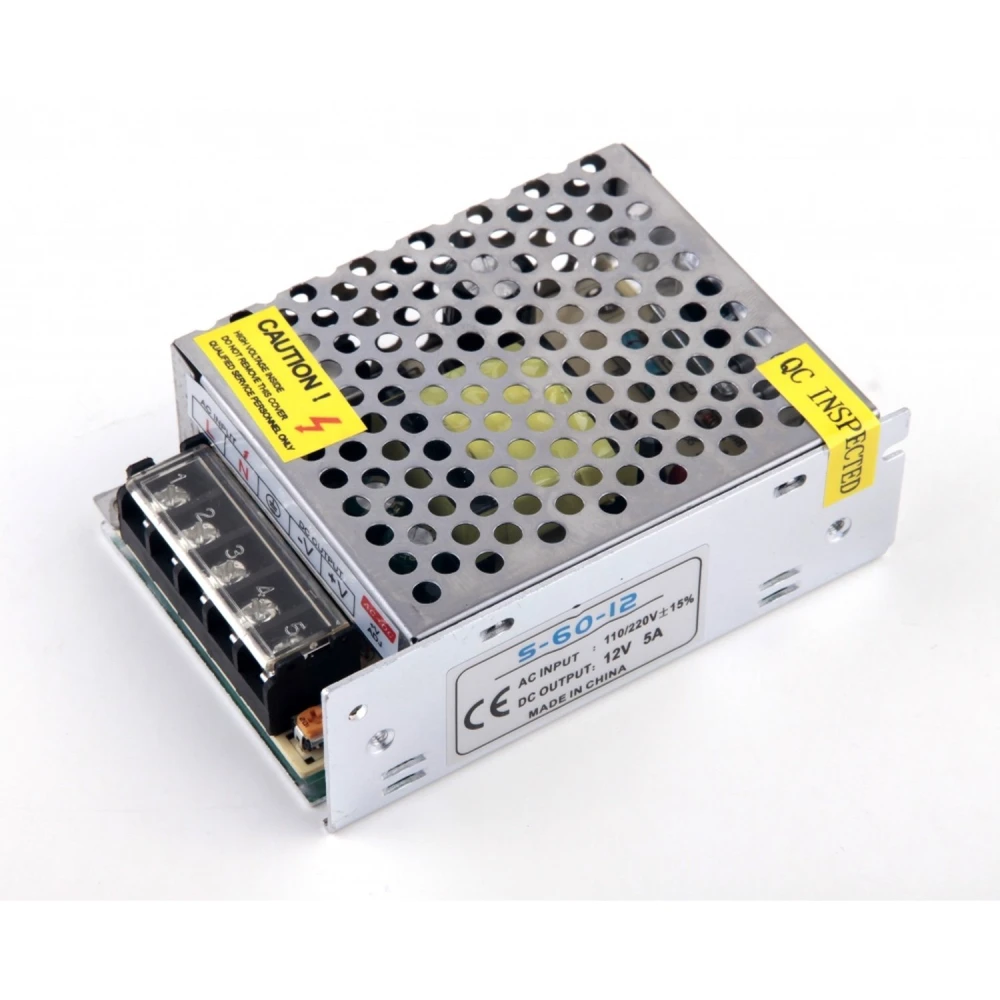

Fuente de alimentación AC a DC 220V a 12V 5A para tiras LED y cámaras

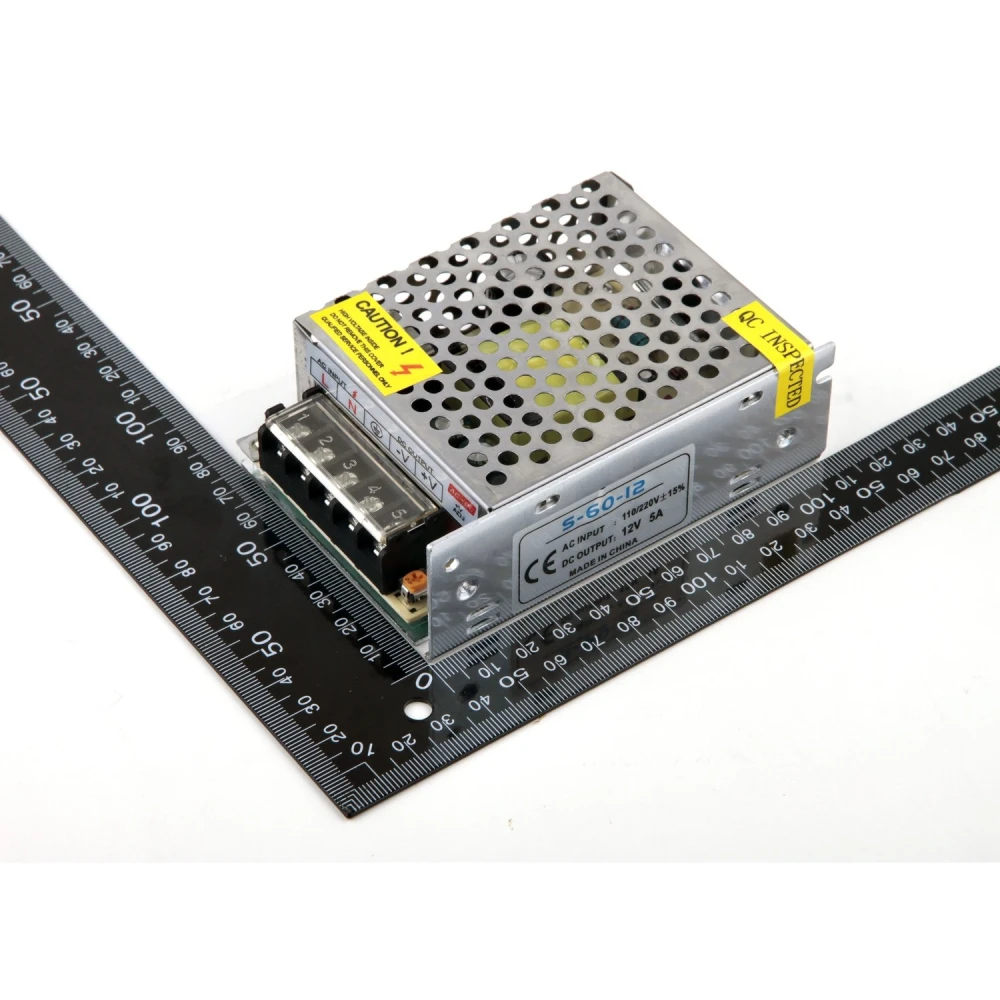

Transformador YourLed para equipos electrónicos y sistemas de seguridad

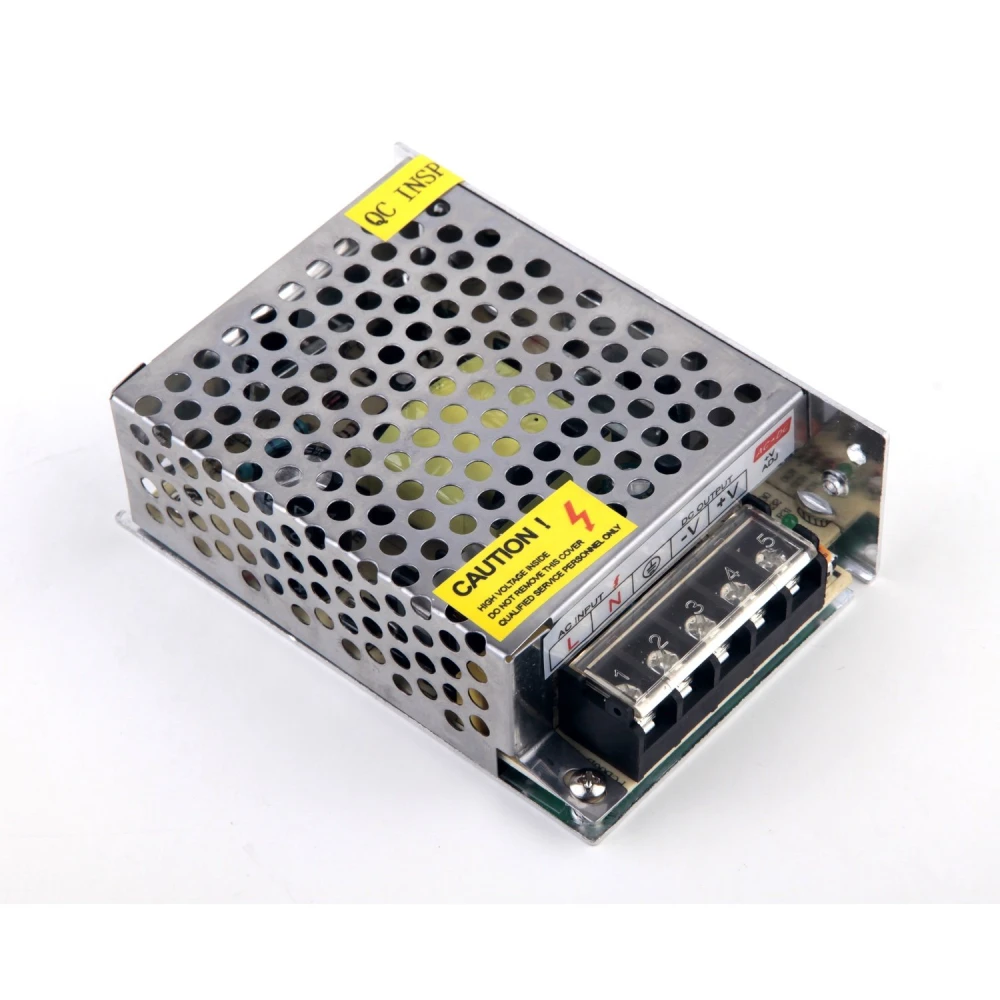

Vista lateral del transformador 12v 5a 60w con terminal de tornillo

Detalle del potenciómetro para regulación de voltaje en transformador 12v 5a

12V 5A 60W Transformer - High-Quality AC to DC Power Supply

Name: 12V 5A 60W Transformer - High-Quality AC to DC Power Supply
Brand: YourLed
SKU: X020105-12V-5A
Price: 9.72 EUR
Availability: InStock

Brand: YourLed

Be the first to review this product

9.72€

VAT included (Ex VAT: 7.90 €)

Limited stock

Standard delivery Thu, Apr 30 - Mon, May 4

Express delivery Tue, Apr 28 - Wed, Apr 29

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

12V 5A 60W transformer from the YourLed brand, designed to provide a reliable and efficient power supply for a wide range of electronic devices.

This transformer converts 220V AC mains power to a 12V DC output with a maximum current of 5 amps, delivering up to 60W of power. Its metal housing helps with better heat dissipation, extending the device's service life compared with models with plastic casing.

Main features:

Model: S-60-12
Input: 100-120V AC or 200-220V AC
Output: 12V DC adjustable between 10V and 13,2V by potentiometer
Maximum current: 5A
Maximum power: 60W (continuous use at maximum not recommended)
Protection against short circuits, overloads and overvoltage
Output connector: Screw terminal block (Type Screw Terminal Block)
Metal housing for better thermal dissipation
Dimensions: 37mm x 110mm x 79mm (height x length x width)
Weight: 240 grams
Operating temperature range: -20°C to 60°C

Typical uses:

Powering LED strips (it is recommended to use a power supply with a higher rating than the total consumption of the strips; for example, 4 metres x 12W = 48W, so this 60W power supply is suitable)
Wireless and ADSL routers
Security cameras
Audio and video equipment
Security systems and other electronic devices that require 12V DC and up to 5A

Thanks to its voltage regulation, it can be adjusted to better suit the specific needs of each device, ensuring a stable and safe supply.

This transformer is compatible with any device that operates at 12V and consumes less than 60W, offering a versatile and efficient solution for electronic projects and LED lighting systems.

Adjustable 12V DC output between 10V and 13,2V
Maximum current of 5 amps and maximum power of 60W
Protection against short circuits, overloads and overvoltage
Metal housing for better heat dissipation and greater durability
Screw terminal output connector for secure connections
Compact dimensions: 37mm x 110mm x 79mm
Lightweight at 240 grams, easy to install
Compatible with LED strips, security cameras, routers and more

Customer Questions & Answers

What are the dimensions and weight of the transformer, and what exactly is included in the box?

The typical dimensions of the S-60-12 model are approximately 160 mm x 98 mm x 40 mm and it weighs around 0.4 kg. The box includes the transformer with a metal casing and screw terminals for connection, with no additional cables or manual; mounting accessories are not included.

Is it compatible with 110V and 220V mains, and how do I select the correct input voltage?

This model operates with a 100-120V AC or 200-220V AC input, and usually has a physical selector (slide switch) to choose the correct range before installation. Always check the selector before connecting to the mains to avoid damage.

How does heat dissipation in its metal casing compare with other plastic models, and what benefit does it bring to durability?

The metal casing allows more efficient heat dissipation than plastic, enabling the internal components to operate at a lower temperature and extending the transformer’s service life under regular loads. In well-ventilated environments, this reduces the failure rate compared with plastic models under similar conditions.

What procedure is recommended if the transformer stops delivering the expected output voltage?

Check the following: 1) make sure the input and output are connected correctly, 2) measure the load to rule out overload or short circuit, 3) check the internal fuse if fitted, and 4) adjust the voltage potentiometer if necessary. If the fault persists, internal repair is not recommended without technical knowledge; contact after-sales service.

Which devices is this 12V 5A 60W transformer suitable for?

It is ideal for powering LED strips, wireless routers, security cameras, audio equipment, video systems and other devices that require 12V DC and consume less than 60W.

How do I choose a transformer for LED strips?

You should choose a power supply with a rating higher than the total consumption of the LED strips. For example, if a strip uses 12W per metre and is 4 metres long, the consumption is 48W, so a 60W transformer is suitable.

Can I adjust the output voltage?

Yes, this transformer includes a potentiometer that allows the output voltage to be adjusted between 10V and 13,2V to suit different needs.

What protection does this transformer offer?

It has protection against short circuits, overloads and overvoltage to ensure the safety of the equipment and the transformer.

Is it recommended to use the full 60W continuously?

It is not recommended to use the maximum power continuously to avoid overheating and extend the transformer's service life.
