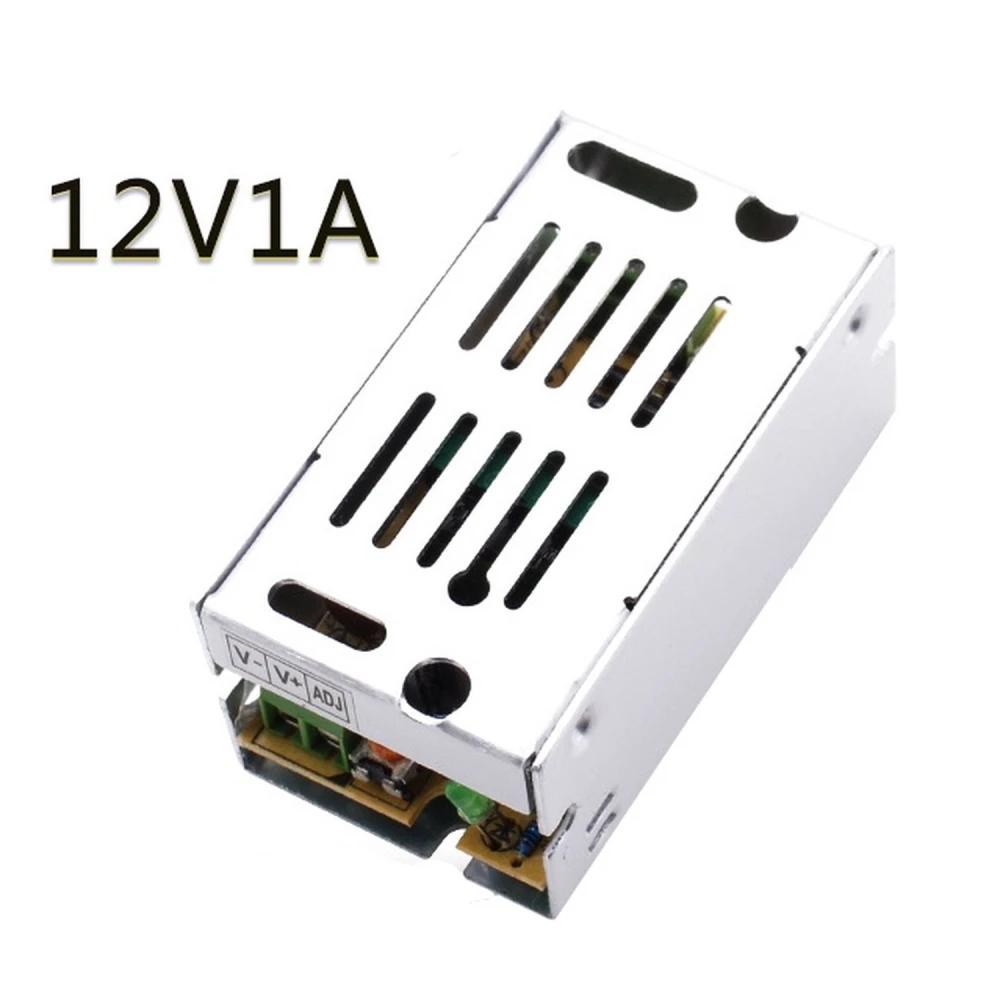

The 12v 1a power supply YourLed is an AC to DC power supply designed to deliver a maximum power of 12W, ideal for electronic projects that require a stable and safe 12V power supply. Its compact size makes it easy to fit into tight spaces without compromising performance.

Main applications:

Power supply for 12V LED strips.
Electronic equipment with consumption below 12W.
Wireless routers and ADSL devices.
Security cameras and video systems.
Audio equipment and security systems.

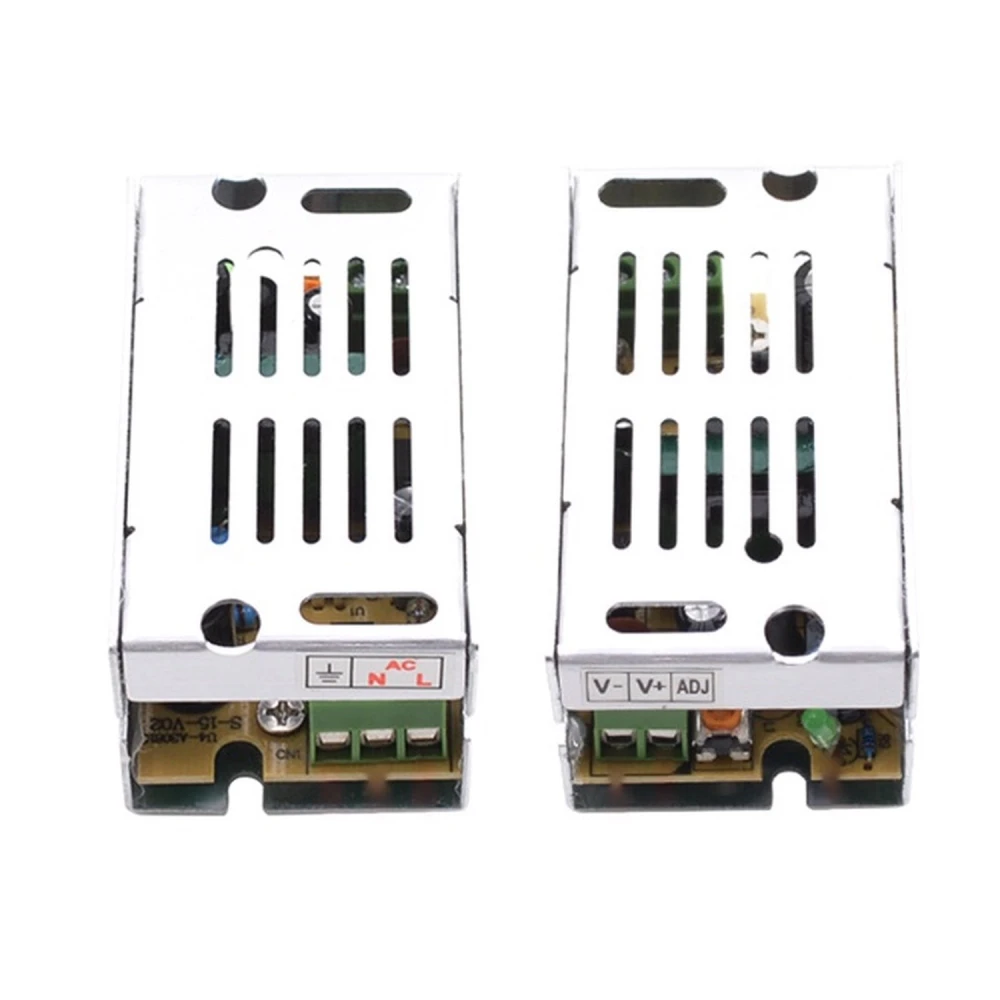

Thanks to its metal casing, this power supply offers better heat dissipation, which extends its service life compared with models with a plastic casing. It also includes a potentiometer that allows the output voltage to be adjusted between 10V and 13.2V, adapting to the specific needs of each device.

Technical features:

Model: S-12-12
Input: 100-120V AC or 200-220V AC
Output voltage: 12V DC adjustable between 10V and 13.2V
Maximum current: 1A
Maximum power: 12W (continuous use at maximum is not recommended)
Number of outputs: 1
Operating temperature range: -20°C to 60°C

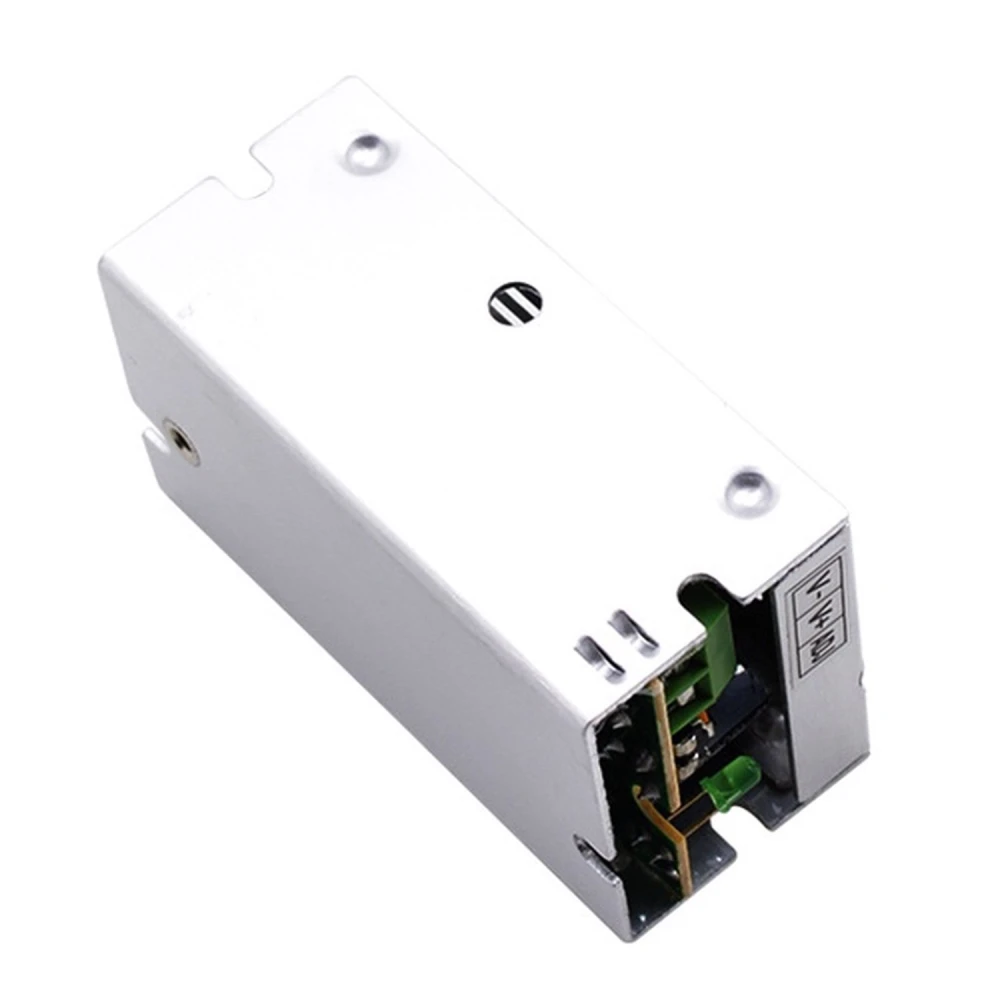

Output connector: Screw terminal block (Type Screw Terminal Block)
Casing material: Metal
Protections: against short circuits, overloads and overvoltage

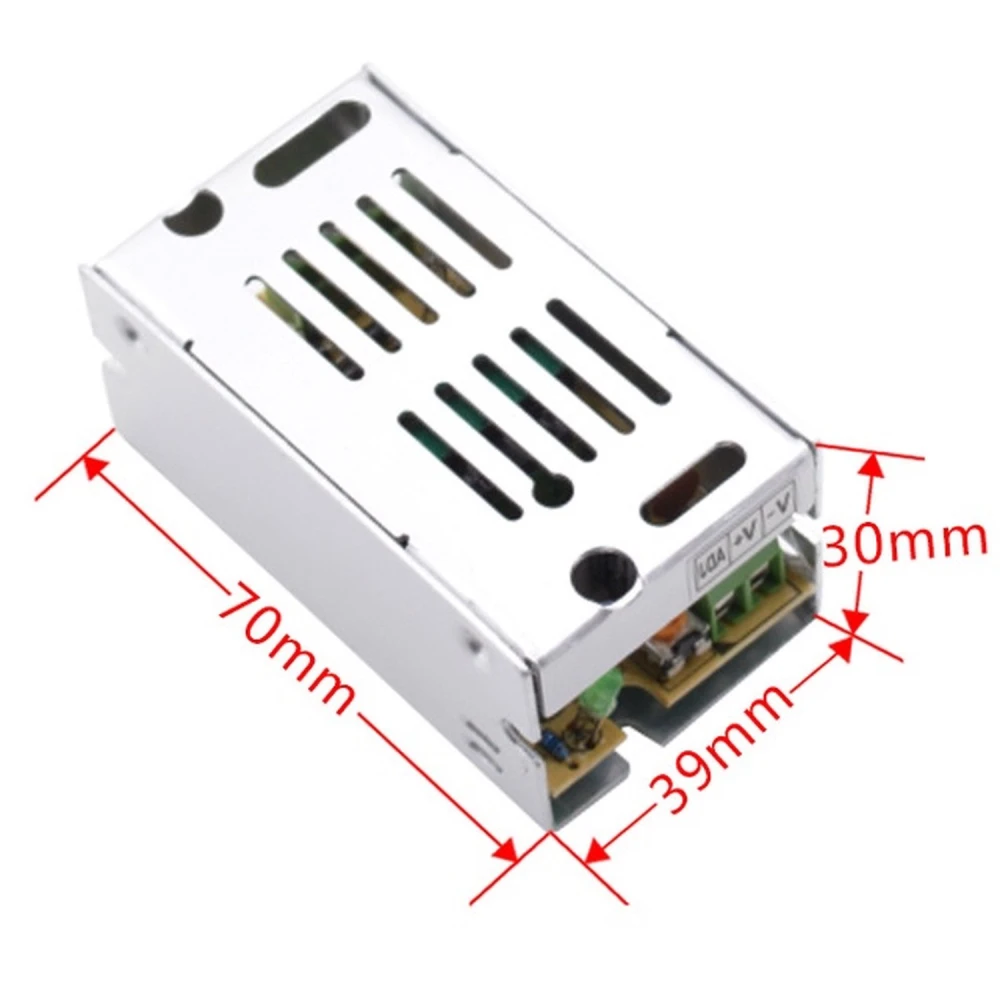

Dimensions: 70mm x 39mm x 90mm (height x length x width)
Weight: 60 grams

This power supply is ideal for those looking for a reliable, adjustable power supply for electronic devices that operate at 12V and draw up to 1 amp. Its compact and robust design makes it suitable for soldering stations, LED lighting, security systems and audio and video equipment.

Maximum power of 12W with 1A output current
Adjustable output voltage between 10V and 13.2V via potentiometer
Metal casing for better heat dissipation and greater durability
Protection against short circuits, overloads and overvoltage
Screw terminal output connector for easy connection
Compact dimensions: 70mm x 39mm x 90mm
Compatible with LED strips, cameras, routers, audio and video equipment

Customer Questions & Answers

What are the exact dimensions and weight of the transformer, and what is included in the box when you buy it?

The dimensions are 70 mm high, 39 mm long and 90 mm wide, with a weight of 60 g. Generally, the box includes only the transformer-power unit; cables and additional fixing items are not supplied unless stated by the seller.

What protection systems does this transformer include and under what electrical safety standards does it operate?

It includes protection against short circuits, overloads and overvoltage. Although the exact standard is not specified in the listing, this type of power supply usually complies with CE and RoHS standards for low-voltage electronic equipment, but it is advisable to consult the manufacturer’s technical sheet to confirm specific compliance.

Which devices is this 12V 1A power supply suitable for?

It is ideal for powering electronic equipment with consumption below 12W, such as LED strips, security cameras, wireless routers, audio equipment and video systems.

Can the output voltage be adjusted?

Yes, it includes a potentiometer that allows the output voltage to be adjusted between 10V and 13.2V to suit different needs.

What type of protection does this power supply offer?

It has protection against short circuits, overloads and overvoltage to ensure safe operation.

What type of output connector does it have?

The output connector is a screw terminal block (Type Screw Terminal Block), which makes cable connection easier.

Is this power supply suitable for continuous use at maximum power?

It is not recommended to use it continuously at maximum power (12W) to avoid damage or a reduction in service life.
