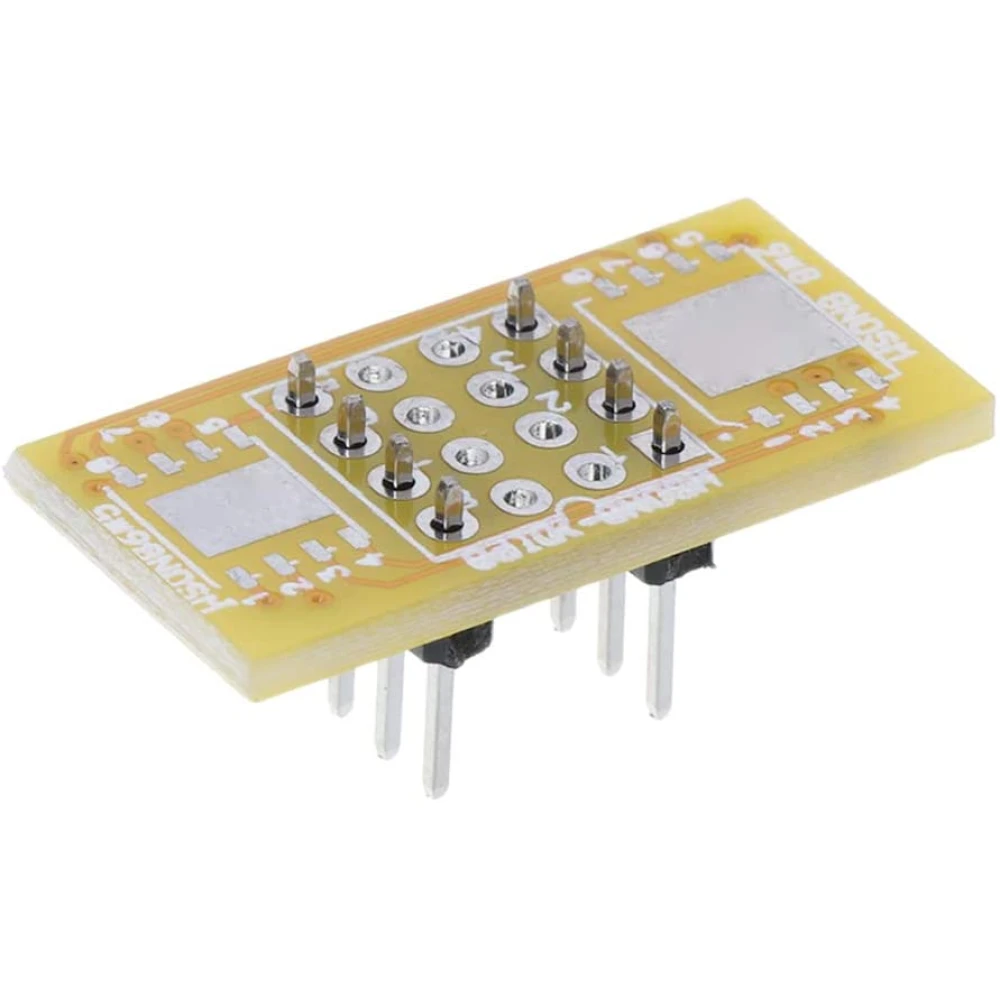

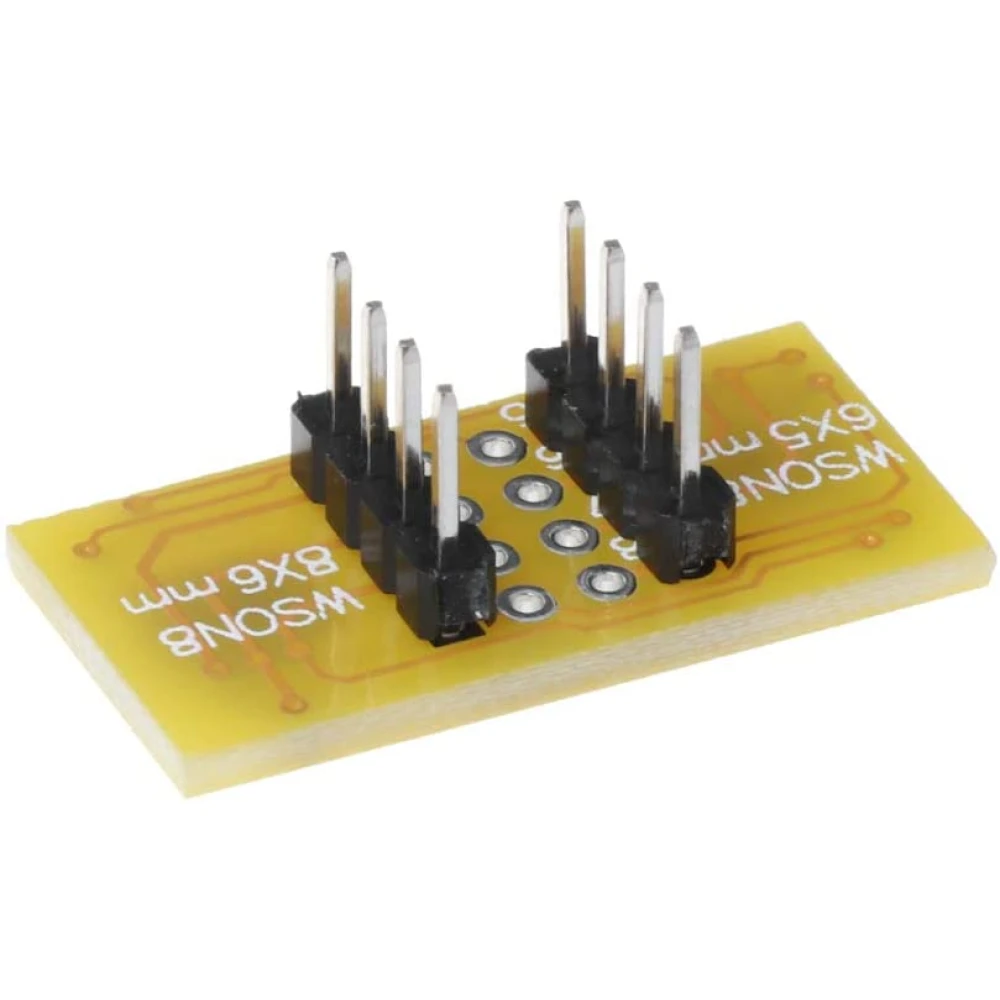

The WSON8 to DIP8 adapter board is an essential tool for technicians and hobbyists working with chip programming in QFN8, DFN8 and WSON8/MLF8 packages. This board adapts these formats to a standard DIP8 socket, making connection and programming easier with compatible programmers.
Main features:
- Compatible with two WSON8 to DIP chip specifications in line with pin header.

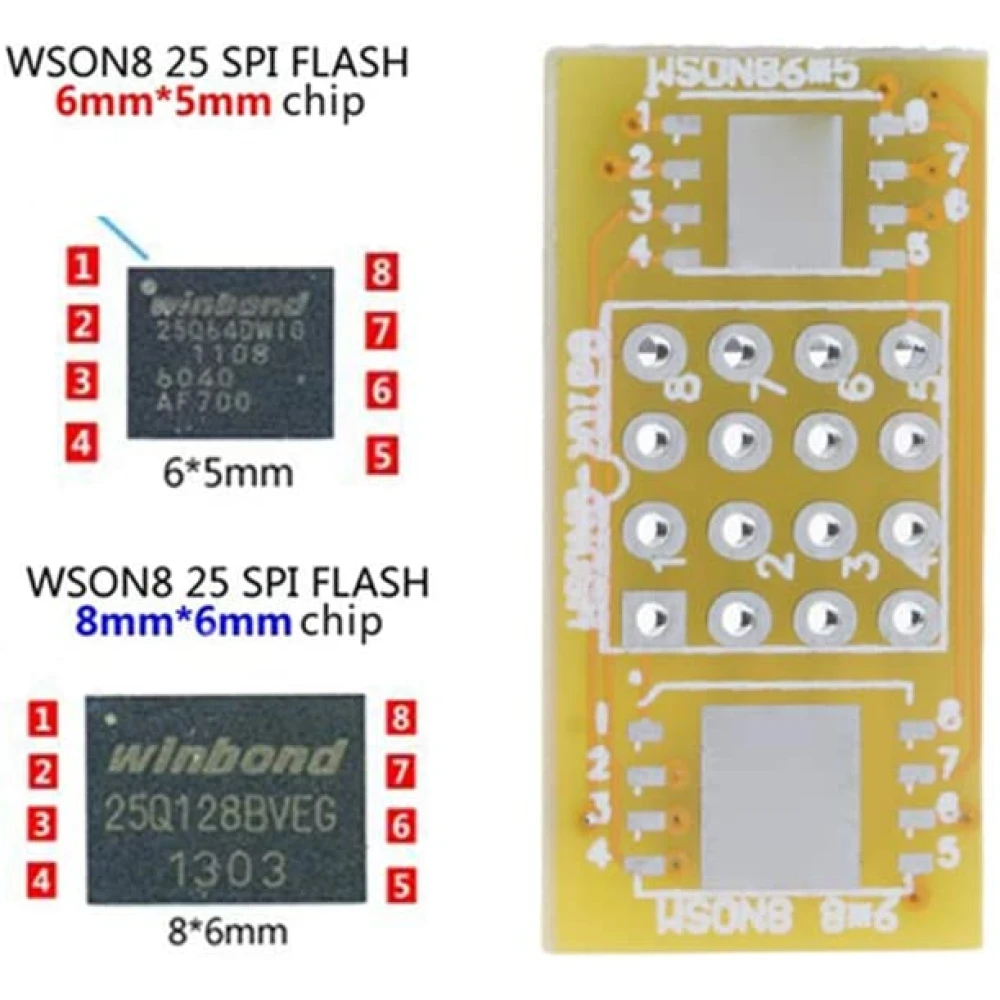

- Supports QFN8/WSON8 packages of 8mm x 6mm and 6mm x 5mm.

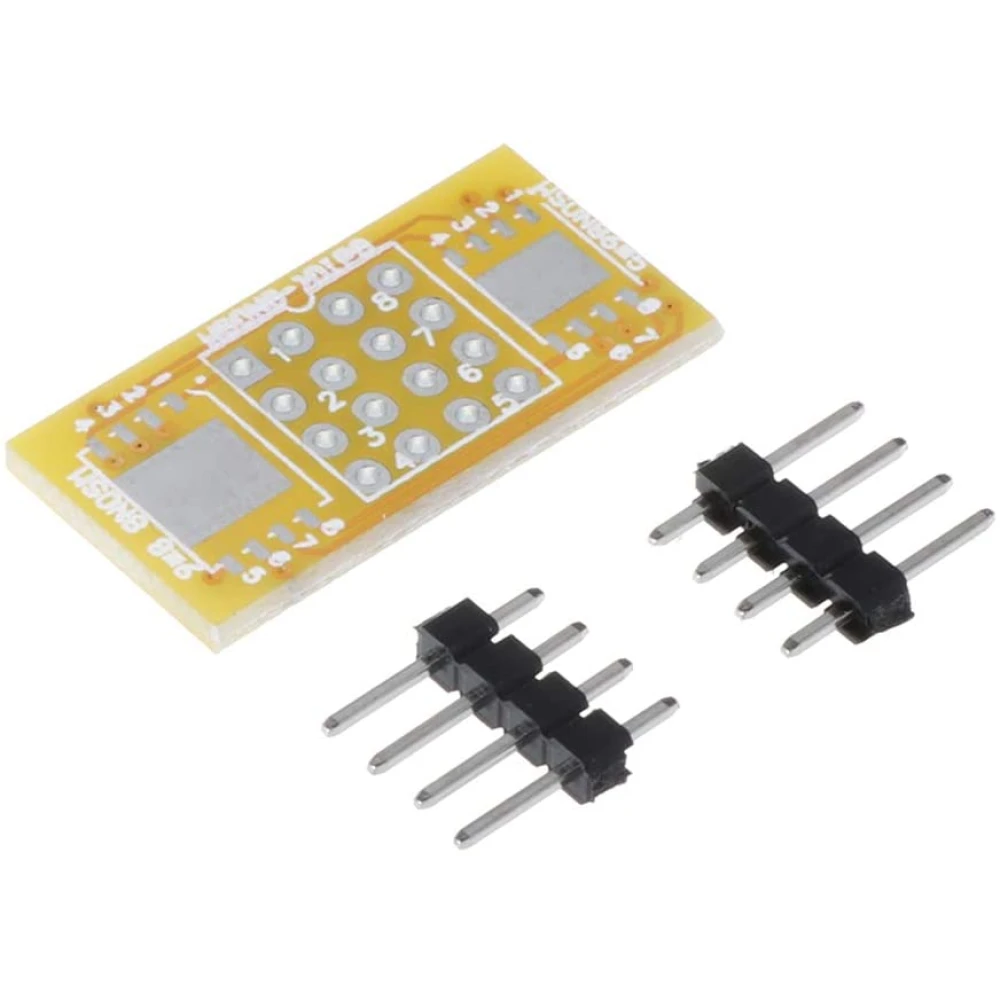

- Features 8 pins for connection.

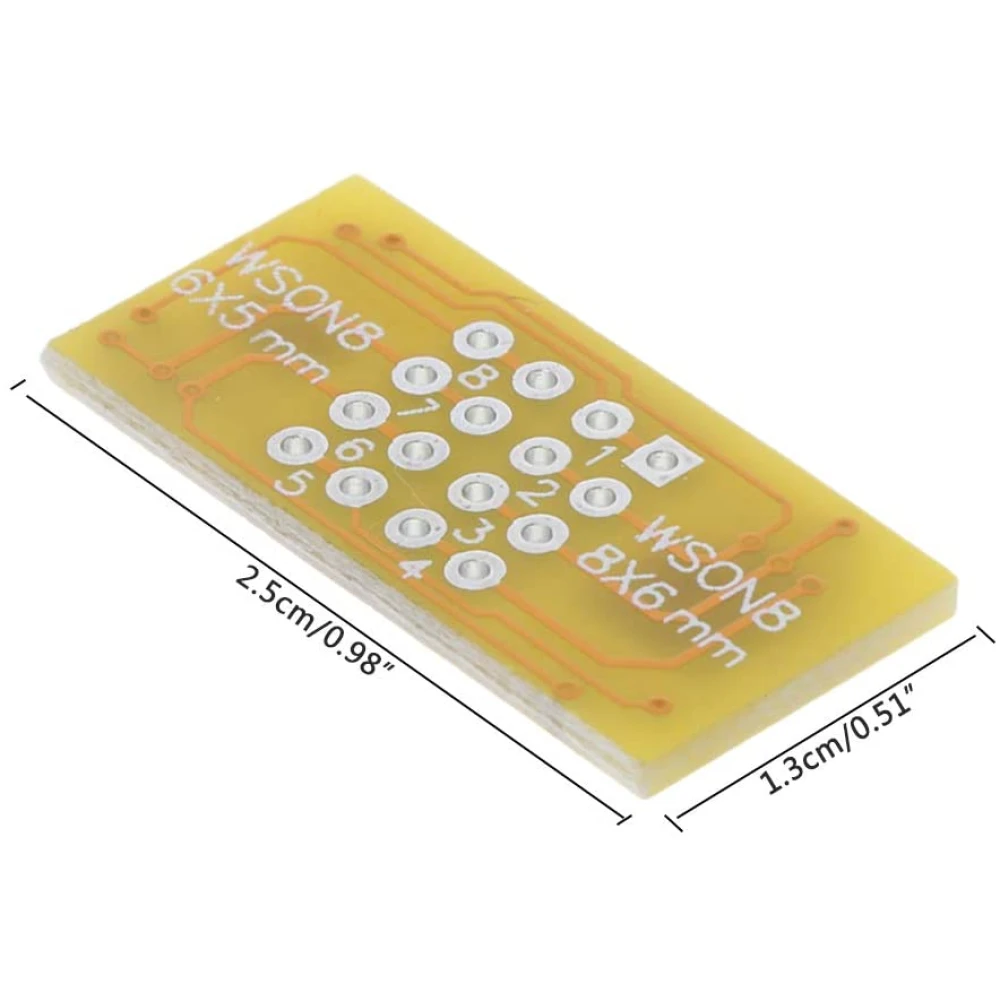

- Compact dimensions of 1.3 x 2.5 cm (0.51 x 0.98 inches).
- Lightweight at approximately 1 gram.
- Allows one FLASH chip to be soldered at a time for precise programming.
- Compatible with TL866II Plus, RT809H, RT809F programmers and others like them.
Typical uses:
- Adapting WSON8, QFN8, DFN8 and MLF8 chips for programming in DIP8 sockets.
- Repair and maintenance of electronic devices that use these packages.
- Precision electronics projects that require programming specific chips.
Compatibility:
This adapter board is suitable for programmers such as the TL866II Plus, RT809H, RT809F and others that support DIP8 sockets. It is important that the user checks specific compatibility with their equipment before purchase.
Package contents:

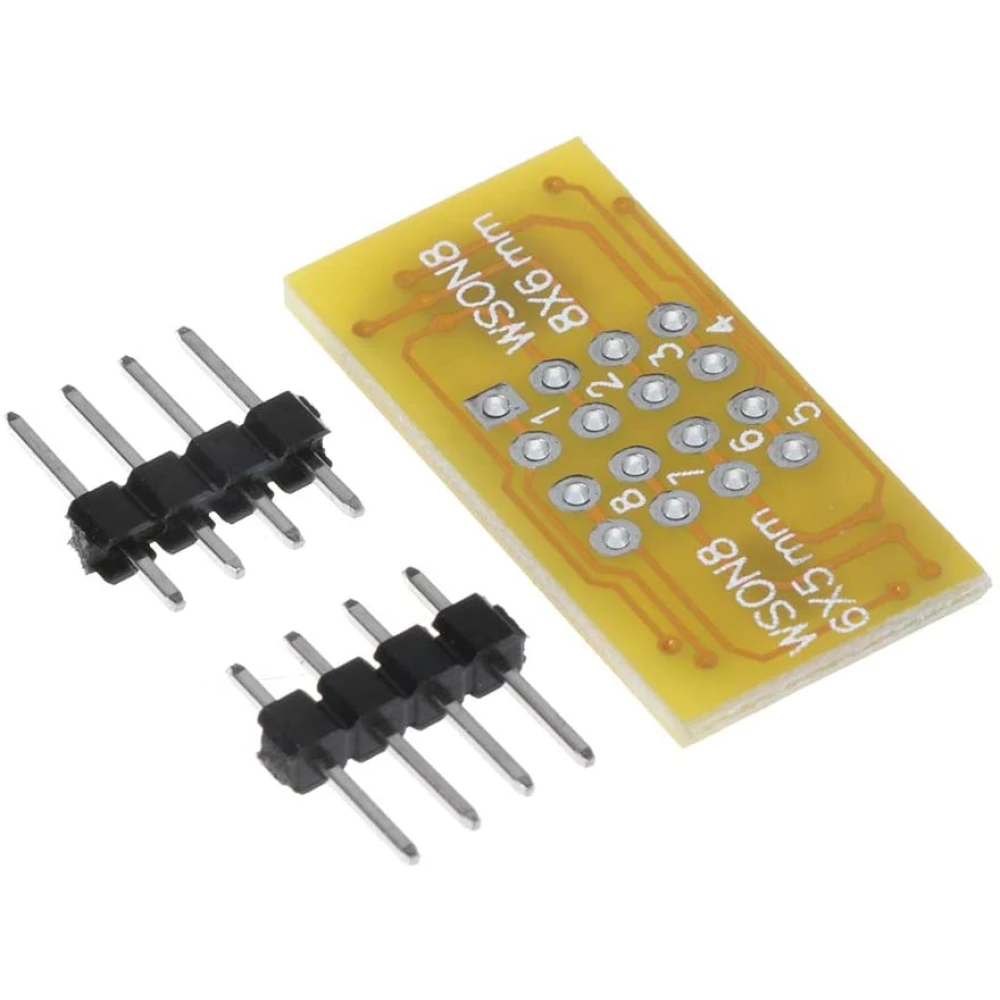

- 1 x WSON8 to DIP8 programmer adapter board.
This board is a practical solution for anyone needing to adapt WSON8, QFN8, DFN8 and MLF8 chip packages to a DIP8 format, making it easier to program and handle these electronic components with standard equipment.
- Compatible with QFN8/WSON8 chips 8mmx6mm and 6mmx5mm
- Features 8 pins for DIP8 connection
- Compact dimensions: 1.3x2.5 cm
- Lightweight: 1 gram
- Allows one FLASH chip to be soldered at a time
- Compatible with TL866II Plus, RT809H, RT809F programmers
Customer Questions & Answers
What type of physical and electrical connection does the board offer to the programmer or emulator?
This board converts the WSON8/QFN8/DFN8 package to a standard DIP8 format via a row of 2.54 mm pitch pins, compatible with sockets and prototyping boards for DIP8. It does not alter the chip's original electrical pinout.
Are there any electrical limitations such as maximum voltage, current or ESD during use of the adapter board?
The board has no active components or added ESD protection. The trace supports up to 1 A and 24 V under standard conditions, but it is recommended to work in ESD-free environments and to check the limits of the connected chips, as the board does not provide additional electrical protection.
Which programmers is this adapter board compatible with?
It is compatible with programmers such as TL866II Plus, RT809H, RT809F and others that support DIP8 sockets.
How many chips can be soldered at once on this board?
The adapter board only allows one FLASH chip to be soldered at a time.
Which packages does this adapter board support?
It supports QFN8, DFN8, WSON8 and MLF8 packages in 8mmx6mm and 6mmx5mm sizes.
What are the dimensions of the adapter board?
The dimensions are 1.3x2.5 cm (0.51x0.98 inches).
Is this board suitable for electronic repair projects?
Yes, it is ideal for repair and maintenance of devices that use chips with compatible packages.
