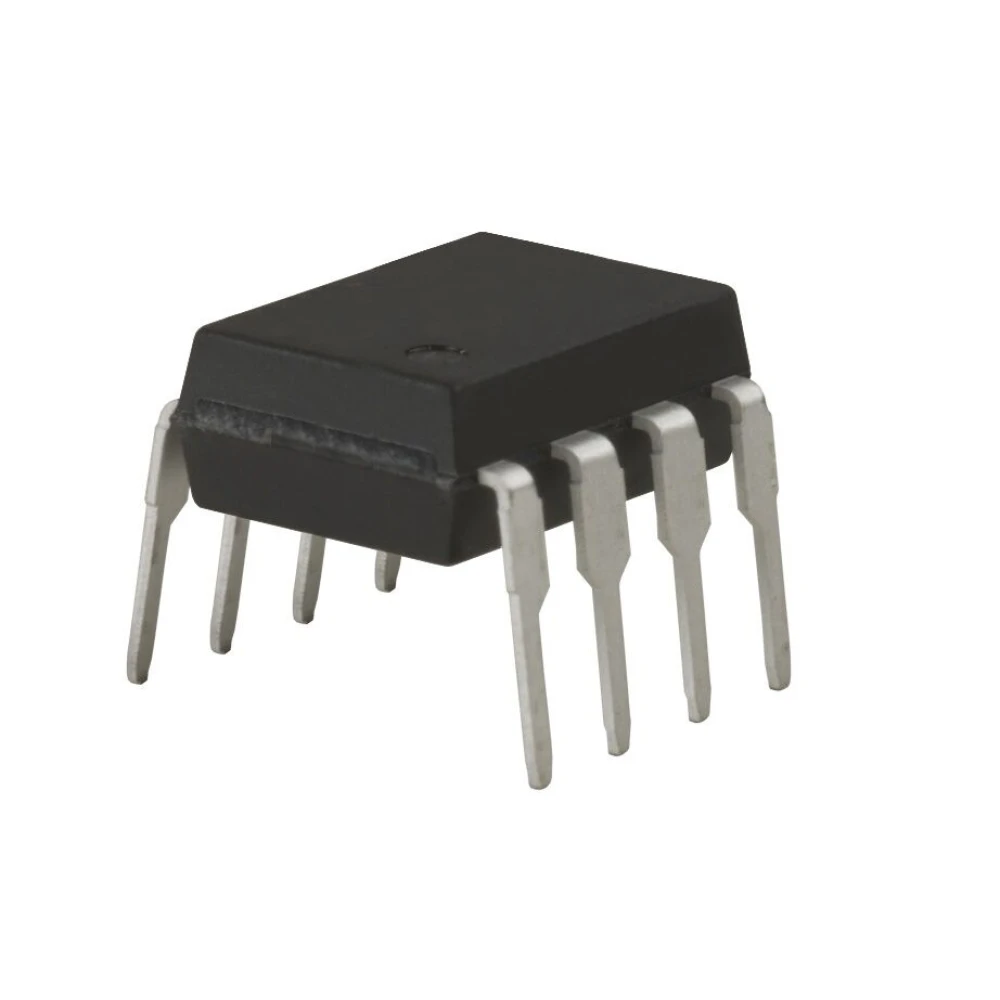

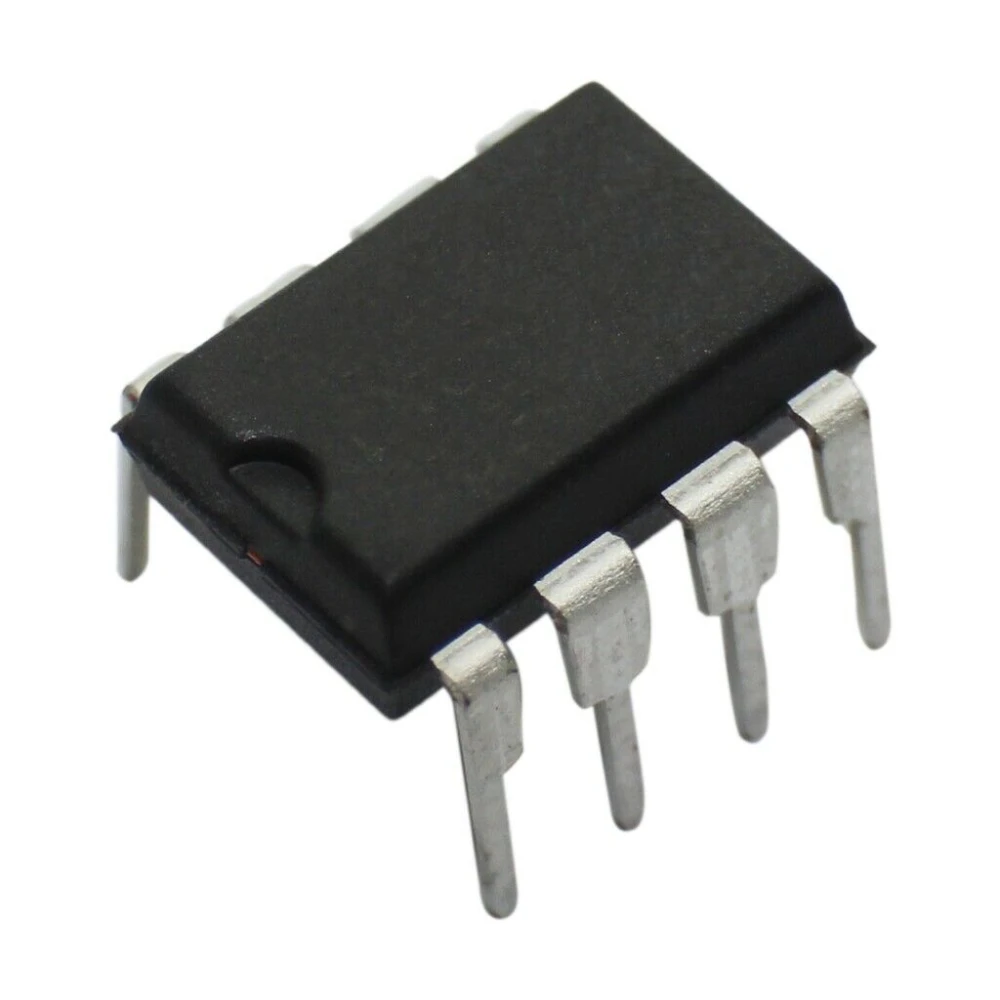

5pcs Microchip 24LC64-I/P EEPROM DIP-8 Series for Electronic Applications
Brand: satkit
2.46€
VAT included (Ex VAT: 2.00 €)
In Stock - Ships immediately
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The 5pcs Microchip 24LC64-I/P EEPROM DIP-8 set is an ideal solution for those looking for high-quality, reliable EEPROM memory for their electronic projects. This component is especially suitable for applications that require low voltage and efficient power consumption, such as battery-powered devices.
Key features:
- EEPROM memory with 64Kbit capacity organised in 8k x 8 bits.
- I2C interface that makes communication with microcontrollers and other devices easy.
- Operating voltage between 2,5 and 5,5V, compatible with a wide range of electronic systems.
- Maximum frequency of 400kHz for fast and efficient data transfer.
- THT (Through-Hole Technology) mounting with DIP-8 package for easy integration into printed circuit boards.
- Operating temperature from -40 to +85°C, ensuring stability in different environments.
- Maximum write cycles of 1 million, ensuring durability and resistance.
- Access time of 5ms and low operating current of 100uA to optimise performance and consumption.
Typical uses:
These EEPROM chips are perfect for electronic projects that require non-volatile data storage, such as settings, calibrations, or status records in portable devices, embedded systems and low-voltage industrial applications.
Compatibility:
The Microchip 24LC64-I/P is compatible with any system that uses I2C communication and operates within the specified voltage range. Its DIP-8 format makes it easy to use in prototypes and series production.
Package contents:
- 5 units of Microchip 24LC64-I/P EEPROM DIP-8 Series
This product is an excellent choice for those looking for reliable, efficient and affordable EEPROM memory for their electronic projects.
- 64Kbit EEPROM memory organised as 8k x 8bit
- I2C interface for simple communication
- Operating voltage: 2,5 - 5,5V, ideal for low-voltage use
- Maximum frequency of 400kHz
- THT mounting with DIP-8 package
- Operating temperature: -40 to +85°C
- Durability with 1 million write cycles
- Fast access time of 5ms
- Low power consumption with operating current of 100uA
- Includes 5 units of Microchip 24LC64-I/P
Customer Questions & Answers
What advantages does the 24LC64-I/P EEPROM offer compared with Flash memory for low-voltage applications?
The 24LC64-I/P is simpler to write to and does not require block erasure beforehand, unlike Flash. It offers a higher number of write cycles (up to 1 million) and data retention typically above 200 years. At low voltages (2.5–5.5 V), it is more energy-efficient, although its access speed (5 ms) is lower than that of typical Flash memory.
Does it require any special formatting or initialisation before first use?
No formatting or initialisation is required for the 24LC64-I/P before use; the memory leaves the factory in an erased state (all bits set to '1'). It is only recommended to verify I2C communication and set the device address correctly if there are other EEPROMS on the bus.
What is the safe operating range in terms of ambient temperature and are there any long-term durability considerations?
The specified operating range is -40°C to +85°C. For maximum durability, it is recommended not to exceed 1 million write cycles per cell and to operate within the stated voltage (2.5–5.5 V) and temperature ranges. At extreme temperatures, data retention and reliability may be reduced.
What is the memory capacity of the Microchip 24LC64-I/P?
The memory capacity is 64Kbit organised in 8k x 8 bits.
What type of interface does this EEPROM use?
It uses an I2C interface for communication with other devices.
What is the operating voltage range?
It operates with a voltage between 2,5 and 5,5 volts.
What applications is this product suitable for?
It is suitable for low-voltage battery-powered applications and other electronic systems that require EEPROM memory.
What type of mounting does this component have?
It has THT mounting with a DIP-8 package.
