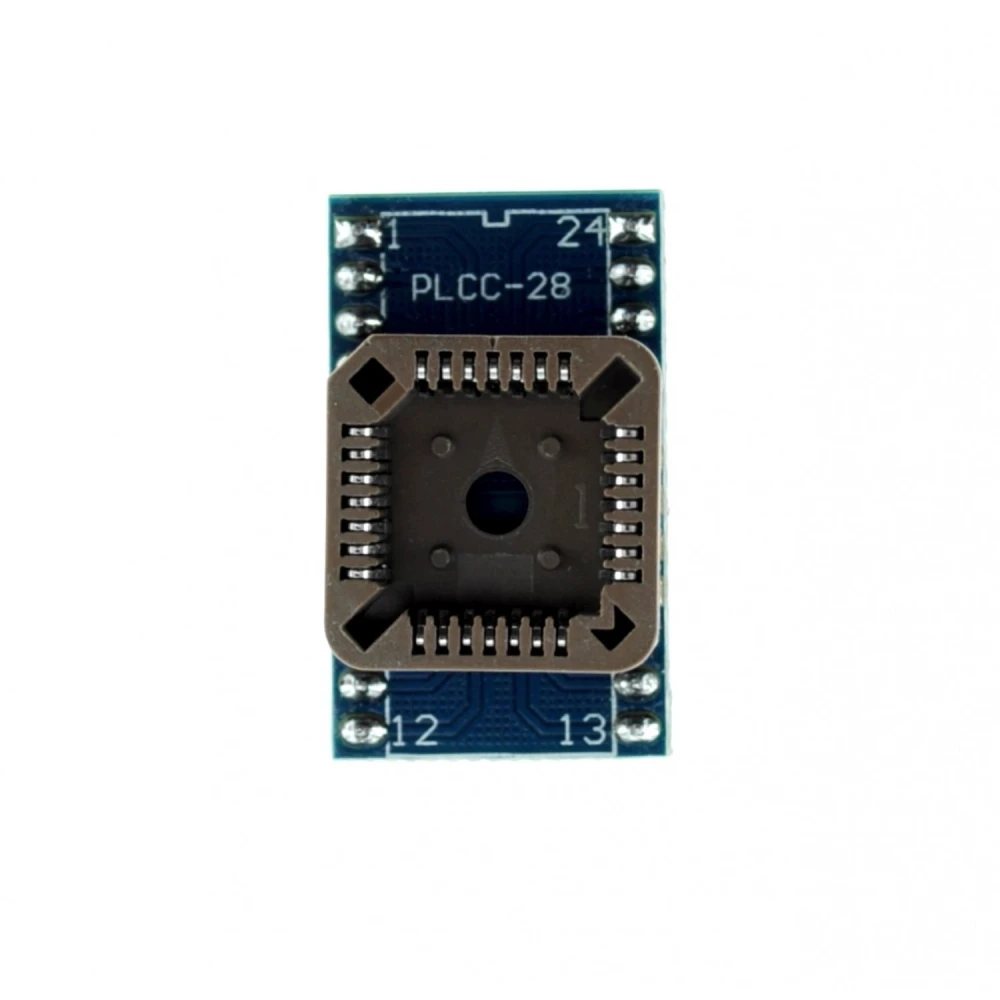

The PLCC28 to DIP24 programmer socket is an adapter designed to make it easier to program integrated circuits with a PLCC28 package using programmers that have a DIP24 socket. This accessory is essential for technicians and electronics hobbyists who need a practical and safe solution for programming chips in different formats.

Main features:

PLCC28 to DIP24 socket adapter, ideal for IC programmers.
Compatible with all programmers we offer in our store.
Allows easy and fast programming of PLCC28 chips using DIP24 sockets.
Robust and reliable design to ensure a stable connection during programming.

Technical specifications:

Supported package type: PLCC28.
Output socket type: DIP24.
Compatibility: All programmers available in our store.

Typical uses:

Programming PLCC28 integrated circuits in electronics labs and workshops.
Repair and maintenance of electronic equipment that uses PLCC28 chips.
Development and testing of electronic prototypes that require IC programming.

Compatibility and recommendations:

This socket is compatible with all IC programmers we sell, ensuring straightforward and hassle-free integration. It is recommended to check that the programmer used supports the PLCC28 package to ensure optimal operation.

With this adapter, technicians can expand the functionality of their DIP24 programmers to work with PLCC28 chips, avoiding the need to buy specific programmers for each package type.

PLCC28 to DIP24 socket adapter for IC programmers.
Compatible with all Satkit store programmers.
Makes it easier to program PLCC28 packaged chips.
Robust design for a stable and secure connection.

Customer Questions & Answers

What are the main applications of the PLCC28 to DIP24 programmer socket, and what advantages does it offer over other adapters?

This socket allows you to programme integrated circuits in a 28-pin PLCC package using programmers designed for 24-pin DIP. It is useful for repair, prototyping and recycling EEPROMs, microcontrollers and similar devices. Its main advantage is the ease of adaptation without requiring soldering or special tools, compared with manual wiring solutions or more complex universal adapters.

What are the physical dimensions and main materials of this adapter?

The adapter typically measures 45 mm x 20 mm x 18 mm (length x width x height), and is mainly made from durable ABS plastic and internal nickel-plated copper alloy contacts to ensure good conductivity and moderate mechanical strength.

Are there any voltage requirements or electrical compatibility issues I should consider when using this socket?

The socket is passive and does not introduce its own voltage or current requirements. Its electrical compatibility depends on the range supported by the contacts (typically up to 1 A, 0 to 50 VDC), and on the correct pin alignment between PLCC28 and DIP24. It is compatible with the vast majority of standard universal programmers.

What maintenance does the socket require to ensure durability and reliable operation?

It is recommended to clean the contacts periodically with dry compressed air and avoid contact with moisture or grease. Do not exceed the maximum mechanical cycle rating (generally 500 insertions guaranteed by the factory). Storing it in a dry environment at temperatures between 0 and 50 °C helps extend its service life.

Does this adapter comply with any safety standards or have any quality certifications?

It does not usually include formal certifications such as CE or UL, as it is a low-risk passive component. However, reputable manufacturers maintain tolerances and materials in line with basic industrial standards for electronic components.

Which programmers is the PLCC28 to DIP24 programmer socket compatible with?

It is compatible with all programmers sold in the Satkit store, especially those with a DIP24 socket.

What is a PLCC28 to DIP24 programmer socket used for?

It is used to adapt chips with a PLCC28 package so they can be programmed in programmers with a DIP24 socket.

Do I need any additional equipment to use this adapter?

No, you only need a compatible programmer with a DIP24 socket to use this adapter.

Is this socket suitable for professional programming?

Yes, it is designed to provide a stable and secure connection, suitable for professional and technical use.
