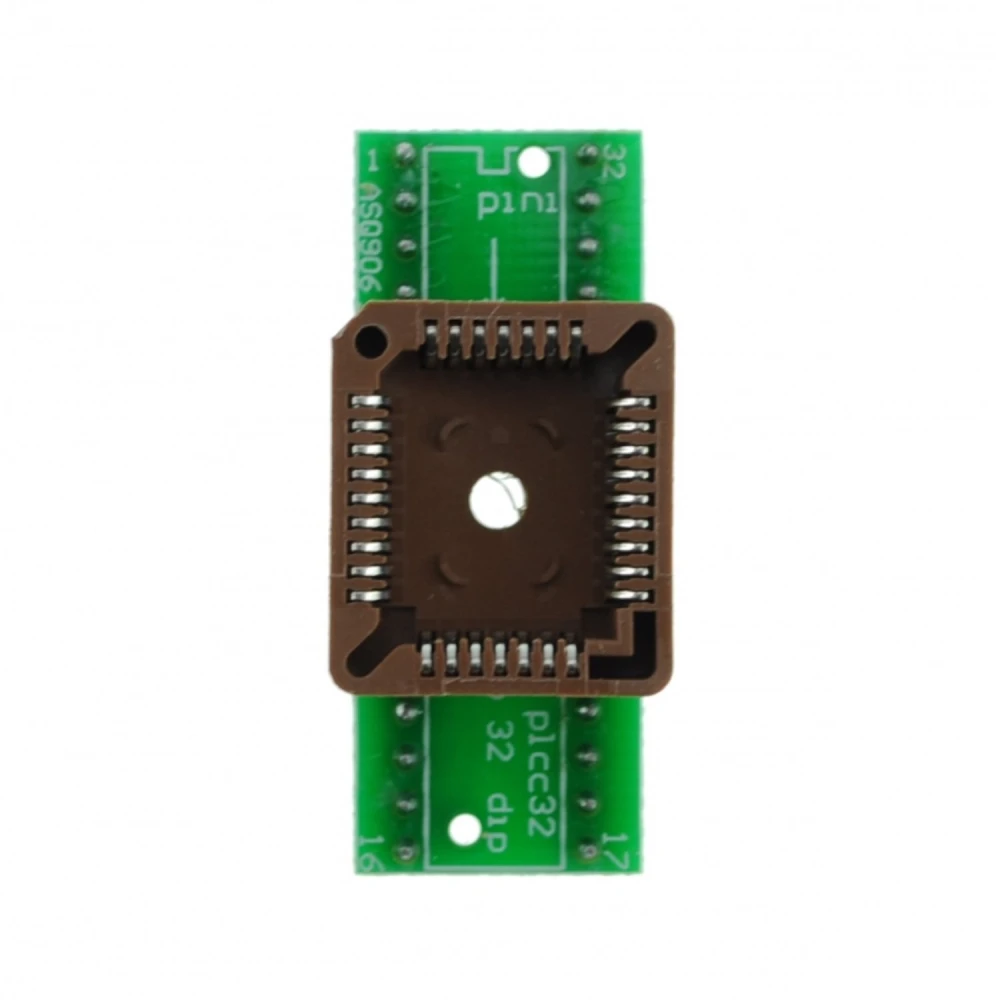

PLCC32 to DIP32 programmer socket for IC chip adapter
Brand: satkit
Save 7% Was: 3.69 €
3.44€
VAT included (Ex VAT: 2.80 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 3.54 € | -4% |
| 10+ | 3.36 € | -9% |
| 20+ | 2.95 € | -20% |
In Stock - Ships immediately
Standard delivery
Mon, May 4 - Wed, May 6
Express delivery
Thu, Apr 30 - Fri, May 1
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
PLCC32 to DIP32 programmer socket is an adapter designed to make it easier to program integrated circuits (IC) with PLCC32 packaging in programmers that use DIP32 sockets. This accessory is essential for technicians and hobbyists working with different types of chips and who need a practical and reliable solution for programming and testing.
Main features:
- PLCC32 to DIP32 socket adapter, compatible with standard IC programmers.
- Allows secure and stable connection of PLCC32 chips in DIP32 sockets.
- Made from durable materials to ensure longevity and good electrical contact.
- Easy to use, ideal for electronics labs and workshops.
Technical specifications:
- Socket type: PLCC32 to DIP32
- Compatibility: IC programmers that accept DIP32 sockets
- Recommended use: Programming and testing PLCC32 integrated circuits
Typical uses:
- Programming PLCC32 chips in programmers with a DIP32 socket.
- Testing and diagnosing integrated circuits in development and repair environments.
- Adaptation for electronics projects that require flexibility in handling package types.
Compatibility and recommendations:
This socket is compatible with most IC programmers that use DIP32 sockets, making it easier to program PLCC32 chips without the need for additional equipment. It is recommended to check specific compatibility with the programmer before use to ensure a proper fit.
With this PLCC32 to DIP32 programmer socket, users can expand the capabilities of their programming equipment, streamlining their workflow and ensuring reliable connections for accurate programming.
- PLCC32 to DIP32 socket adapter for IC programmers
- Allows PLCC32 chips to be programmed in DIP32 sockets
- Durable material for longevity and good contact
- Ideal for electronics technicians and professionals
- Compatible with standard IC programmers using DIP32
Customer Questions & Answers
What is the main function of a PLCC32 to DIP32 programmer socket, and what advantages does it offer over other adapters?
Its main function is to allow a PLCC32 chip to be inserted into a programmer or motherboard with a DIP32 socket, making it easier to programme, test and replace memory chips or other PLCC integrated circuits in DIP-compatible equipment. Its main advantage over other adapters is the reduction of errors caused by poor connections and the physical compatibility between packages, which improves performance in development and repair tasks.
What materials is the socket made from, and what are its approximate dimensions and weight?
The socket is typically made from high heat-resistant plastic (such as PPS) with nickel-plated copper contacts or gold-plated contacts to improve conductivity and durability. Approximate dimensions: 20 mm x 25 mm base and 10 mm height; estimated weight: 15 to 20 grams. This may vary slightly depending on the manufacturer.
Is this socket compatible with all DIP32 chip programmers, and are there any limitations regarding device versions or voltage?
The socket is mechanically compatible with most standard 2.54 mm pitch DIP32 programmers. However, for electrical compatibility, it is essential that the programmer handles the same voltage ranges and signals required by the PLCC chip being used. It is not compatible with PLCC devices with a different pin count or devices requiring voltages outside the usual 3.3 V to 5 V range.
What are the recommendations for safely installing the socket, and how can damage to the chip or adapter be avoided?
It is recommended to carefully align the PLCC32 chip with the pin 1 mark on the socket before pressing down evenly to avoid bending pins. When removing it, using the proper tool (a PLCC extractor) helps prevent damage to both the chip and the socket. Avoiding static electricity by using an anti-static wrist strap is also good practice.
What service life can be expected from the socket, and how should it be maintained to ensure reliable connections?
The typical service life exceeds 500 insertion/removal cycles if used properly. For maintenance, clean the contacts occasionally with compressed air and, if necessary, with electronic component cleaning solution. Avoid excessive force during use and prolonged exposure to moisture to prevent corrosion.
What is the PLCC32 to DIP32 programmer socket for?
It is used to adapt PLCC32 packaged chips to programmers that use DIP32 sockets, making programming easier.
Is it compatible with all IC programmers?
It is compatible with most programmers that use DIP32 sockets, but it is recommended to check compatibility with the specific programmer model.
How do you use this programmer socket?
Insert the PLCC32 chip into the adapter socket and then connect the adapter to the programmer's DIP32 socket to carry out programming.
Does the product include instructions for use?
The product is a simple accessory and does not include detailed instructions, but its use is intuitive for technicians with experience in IC programming.
Can I use this socket to program other types of chips?
No, this socket is specifically designed for PLCC32 chips and DIP32 programmers.
