5.90 €
In Stock
St-Link V2 Mini Programmer Emulator for STM8 STM32 - Downloader
Brand: satkit
5.90€
VAT included (Ex VAT: 4.80 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 5.67 € | -4% |
| 10+ | 5.37 € | -9% |
| 20+ | 4.72 € | -20% |
Limited stock
Standard delivery
Fri, May 1 - Tue, May 5
Express delivery
Wed, Apr 29 - Thu, Apr 30
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The St-Link V2 Mini STM32 Programmer is an essential tool for developers and technicians working with STM8 and STM32 microcontrollers. This device works as a programmer and emulator, making it easier to download and debug firmware on target boards.

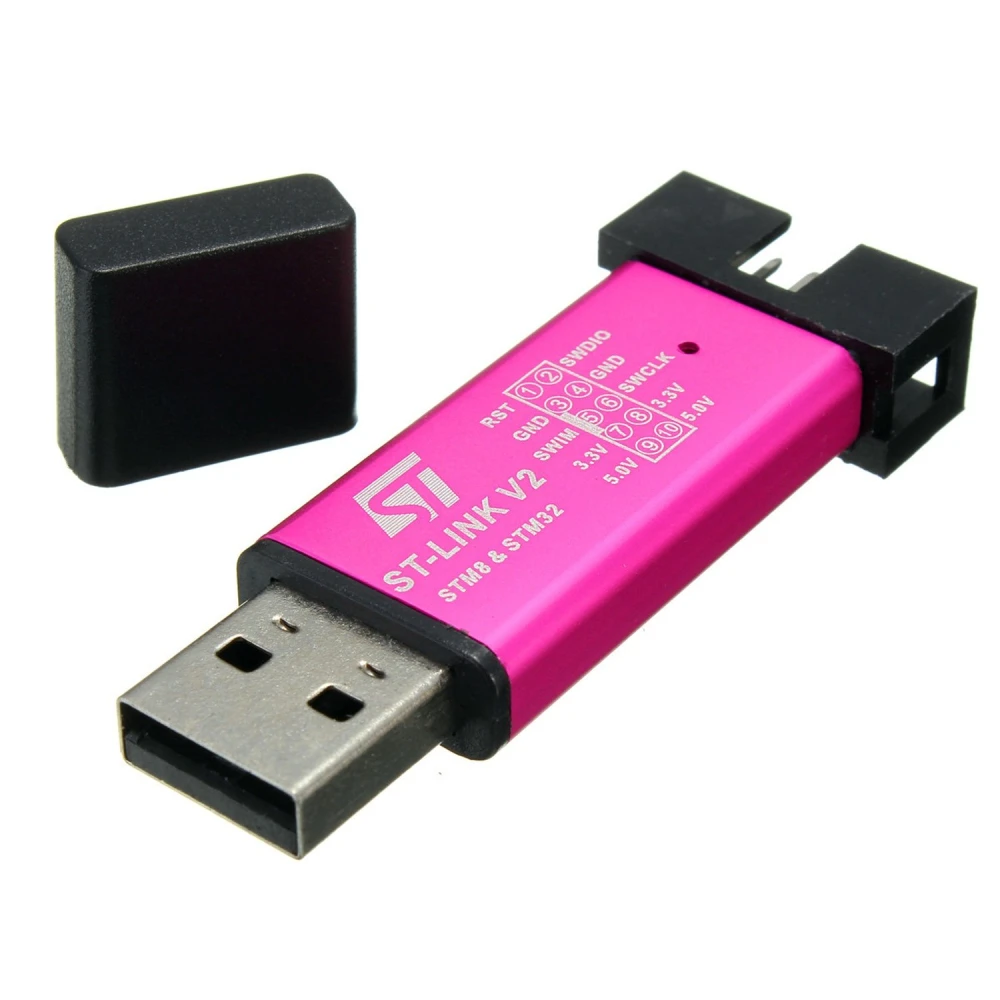

With an aluminium U-shaped case that protects the internal base board, this programmer is portable, safe and reliable. Its design includes a clearly marked interface on the shell for simple and practical connection.
- Supports 5V and 3.3V voltages simultaneously, compatible with target boards operating at both levels.
- Permanent laser engraving on the shell for long-lasting identification.
- Internal base board with a 500 mA resettable fuse that protects against overcurrent damage.
- Red and blue LED indicators to monitor the device operating status.

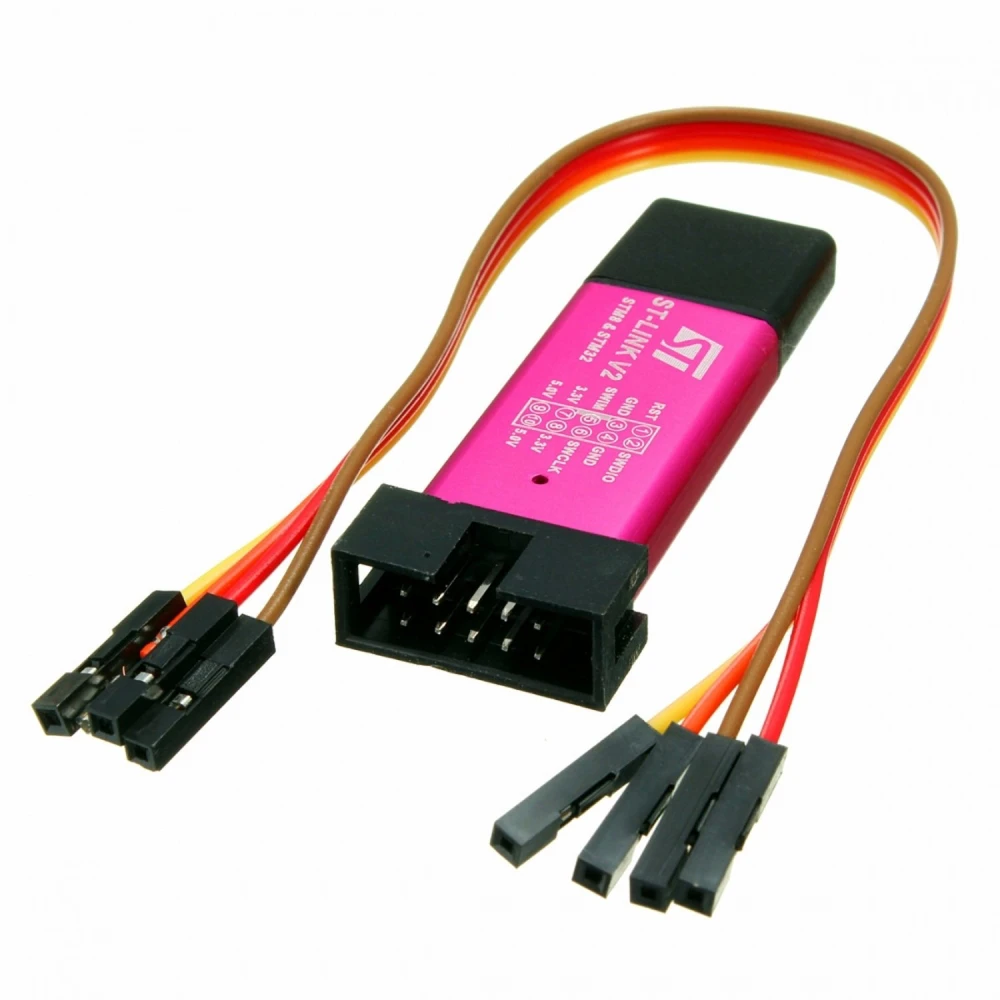

- 4-line DuPont cable distribution for flexible connections adaptable to different setups.
- Anti-static and sealed packaging to protect against static electricity and moisture.
Functions and technical features:
- Full support for the STM32 4-wire SWD debugging interface, with clear definition on the shell for easy use.
- Compatible with SWIM debugging and downloading for STM8, supporting software versions such as ST-LINK Utility 2.0 and above, STVD, STVP 3.2.3 and above, IAR EWARM V6.20+, IAR EWSTM8 V1.30+, and KEIL RVMDK V4.21+.
- Automatic firmware update, with the latest V2.J17.S4 version preinstalled from the factory.
- Improved 5V output protection to prevent damage from operating errors on the input/output port.
- Interface with a 0.54" pitch single connector, equipped with DuPont cable to adapt to different connection sequences.
- Robust aluminium case that protects the device, making it easy to carry without risk of damage from static electricity or impacts.
This programmer is ideal for development, programming and debugging tasks in projects based on STM8 and STM32 microcontrollers, and is compatible with multiple development environments and software tools.
- Supports programming and debugging for STM8 and STM32 with SWD and SWIM interfaces.
- Aluminium U-shaped case for protection and portability.
- Simultaneous 5V and 3.3V output voltages for compatibility with a range of boards.
- 500 mA resettable fuse for overcurrent protection.
- Red and blue LED indicators for working status monitoring.
- Compatible with ST-LINK Utility, STVD, STVP, IAR EWARM, IAR EWSTM8 and KEIL RVMDK software.
- Automatic firmware update with V2.J17.S4 preinstalled.
- 0.54" connector with DuPont cable for flexible connections.
- Anti-static sealed packaging for protection against static electricity and moisture.
Customer Questions & Answers
What are the dimensions, weight and exact contents of the package?
The ST-Link V2 Mini usually measures 50 mm x 15 mm x 10 mm and weighs approximately 20 g. The package includes the programmer with an aluminium casing, a set of 4 DuPont cables for connection and a sealed anti-static bag. It does not include a physical manual or additional adapters.
What warranty coverage is provided, and can spare parts such as cables or the casing be obtained separately?
The product normally offers a warranty against manufacturing defects for 3 to 6 months, depending on the supplier. Original spare parts for the casing or internal components are not available, but the DuPont cables are standard and easy to replace. In the event of a fault, support will usually replace the entire programmer within the warranty period.
What is the St-Link V2 Mini STM32 programmer used for?
It is used to program and debug STM8 and STM32 microcontrollers via SWD and SWIM interfaces.
Which software is it compatible with?
It is compatible with ST-LINK Utility, STVD, STVP, IAR EWARM, IAR EWSTM8 and KEIL RVMDK, among others.
What voltages does it support?
It supports simultaneous 5V and 3.3V output voltages for different target boards.
Does it have protection against electrical damage?
Yes, it has a 500 mA resettable fuse to protect the base board and the device.
Is the device portable?
Yes, its U-shaped aluminium case offers protection and makes it easy to carry.
