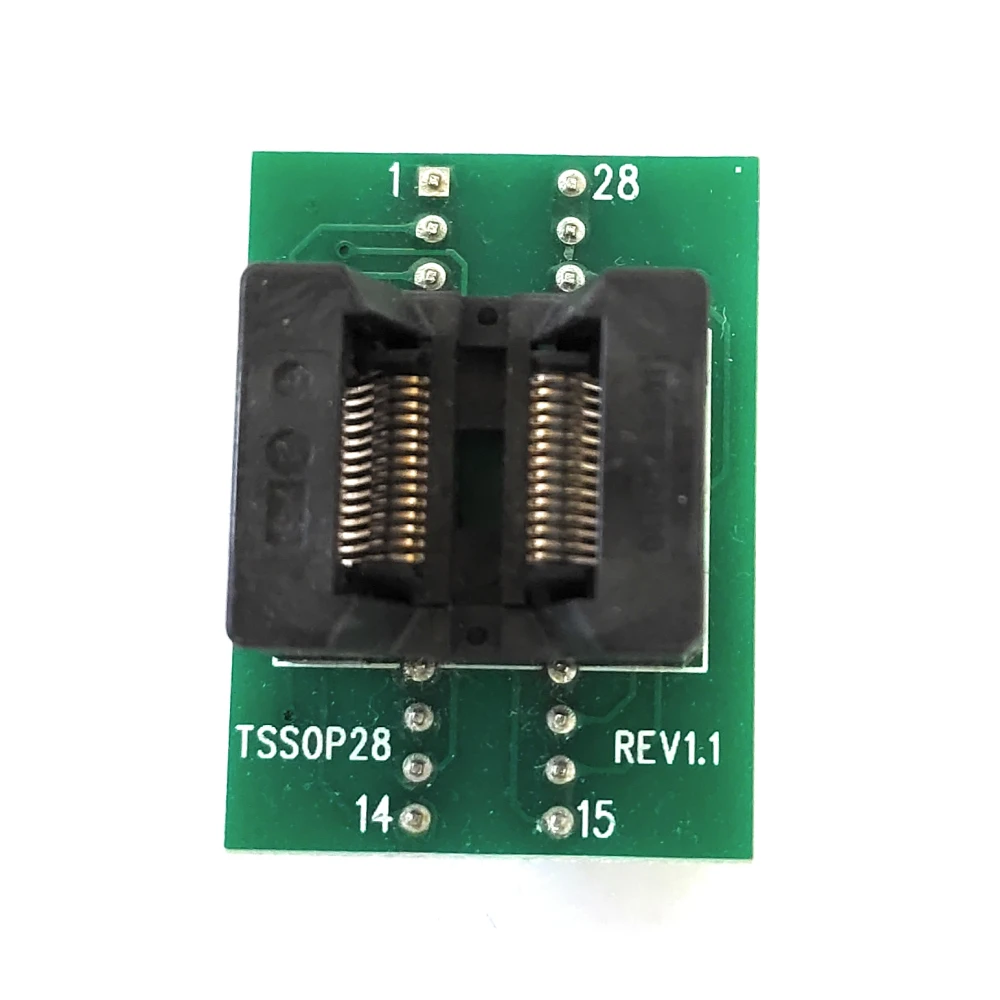

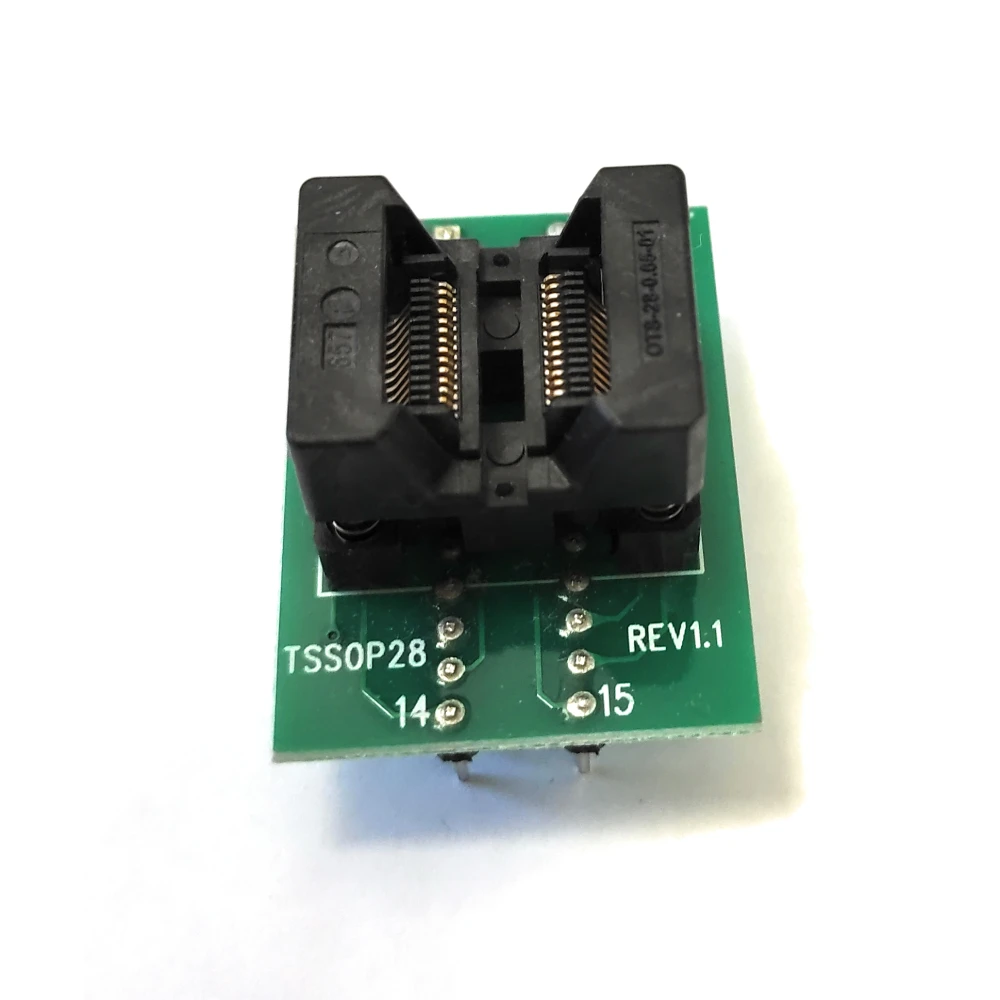

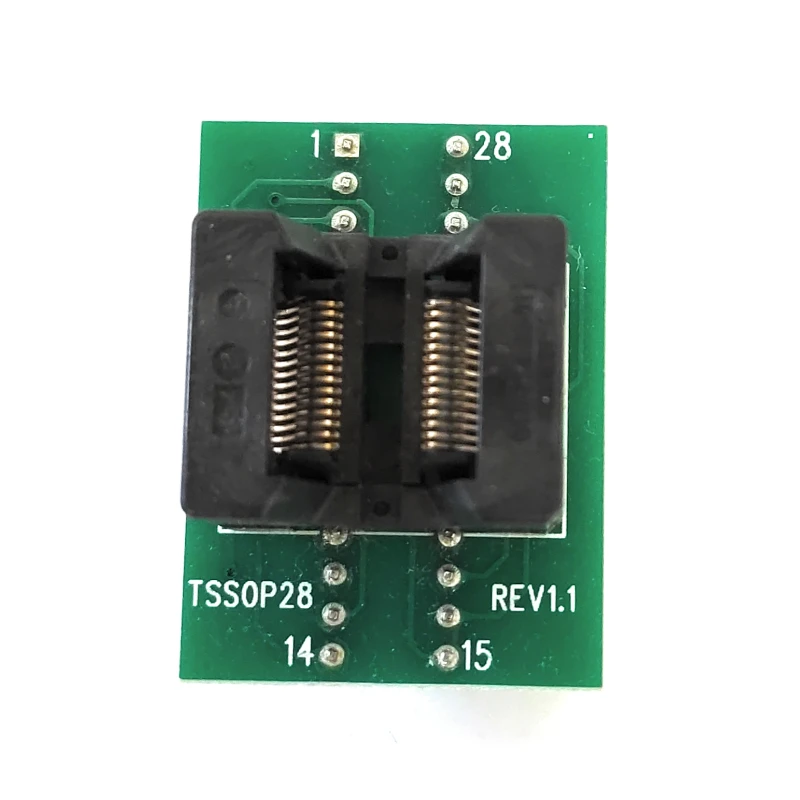

TSOP28 to DIP28 programming socket with easy insertion for satkit programmers
Brand: satkit
6.77€
VAT included (Ex VAT: 5.50 €)
Volume Discounts
| Quantity | Price | Save |
|---|---|---|
| 2+ | 6.49 € | -4% |
| 10+ | 5.97 € | -12% |
| 20+ | 5.55 € | -18% |
In Stock - Ships immediately
Standard delivery
Fri, May 1 - Tue, May 5
Express delivery
Wed, Apr 29 - Thu, Apr 30
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
The TSOP28 to DIP28 programming socket is an adapter designed to make it easier to insert and program TSOP28 components in programmers that use DIP28 format. This socket provides a secure and reliable connection, ensuring correct data transfer during the programming process.
Main features:
- TSOP28 to DIP28 adapter for electronic programmers.
- Easy insertion allows components to be fitted and removed without effort.
- Compatible with all satkit programmers available in our store.
- Robust construction to ensure durability and stability during use.
Technical specifications:
- Input format: TSOP28
- Output format: DIP28
Typical uses:
- Programming memories and microcontrollers in TSOP28 format using programmers with a DIP28 socket.
- Adaptation for programming equipment that does not have direct support for TSOP28.
Compatibility:
This socket is compatible with all satkit programmers that support DIP28 format, making it easier to program TSOP28 components without needing to change equipment.
This product is ideal for electronics technicians and hobbyists who need a practical and efficient solution for programming TSOP28 chips.
- TSOP28 to DIP28 adapter for electronic programmers.
- Easy insertion for fitting and removing components without effort.
- Compatible with all satkit programmers.
- Robust construction for durability and stability.
- Allows TSOP28 chips to be programmed in DIP28 programmers.
Customer Questions & Answers
What is the main function of the TSop28 to Dip28 programmer socket and what type of integrated circuits is it recommended for?
This socket allows TSOP28-packaged integrated circuits to be adapted to a DIP28 configuration, making them easier to insert into standard universal programmers. It is recommended for flash memory or EEPROM chips with a TSOP28 layout that require frequent programming or testing.
What are the physical dimensions of the socket and what are its main materials?
The socket usually measures approximately 45 mm x 16 mm x 20 mm (length x width x height). It is made from durable technical plastic (such as PBT) and nickel-plated copper alloy internal contacts for optimum conductivity and mechanical durability.
Does it require soldering for installation, or is it direct insertion into the programmers?
The design is 'easy insertion', meaning no soldering is required: the TSOP28 chip is inserted into the socket and the assembly is connected directly to the programmer with a DIP28 base.
How many insertion cycles can it withstand and what precautions are recommended to extend its service life?
The socket is typically designed to withstand between 200 and 300 insertion/removal cycles. To maximise its lifespan, avoid forcing the pins, keep the contacts clean and store the socket in dry environments.
What differences does it have compared with other TSOP28 to DIP28 adapters in terms of availability or mechanical tolerances?
This model stands out for its easy insertion mechanism and precise chip guidance, reducing the risk of bent pins compared with alternatives that require more pressure. Mechanical tolerances are standard (<±0.1 mm), but it is recommended to check exact compatibility with the TSOP28 package of the chip to be used.
Which programmers is the TSOP28 to DIP28 socket compatible with?
It is compatible with all satkit programmers that use DIP28 format.
Is it easy to insert and remove TSOP28 components in this socket?
Yes, the design makes insertion and removal quick without damaging the components.
Can I use this socket to program any TSOP28 chip?
Yes, as long as the programmer supports DIP28 format and is compatible with satkit.
