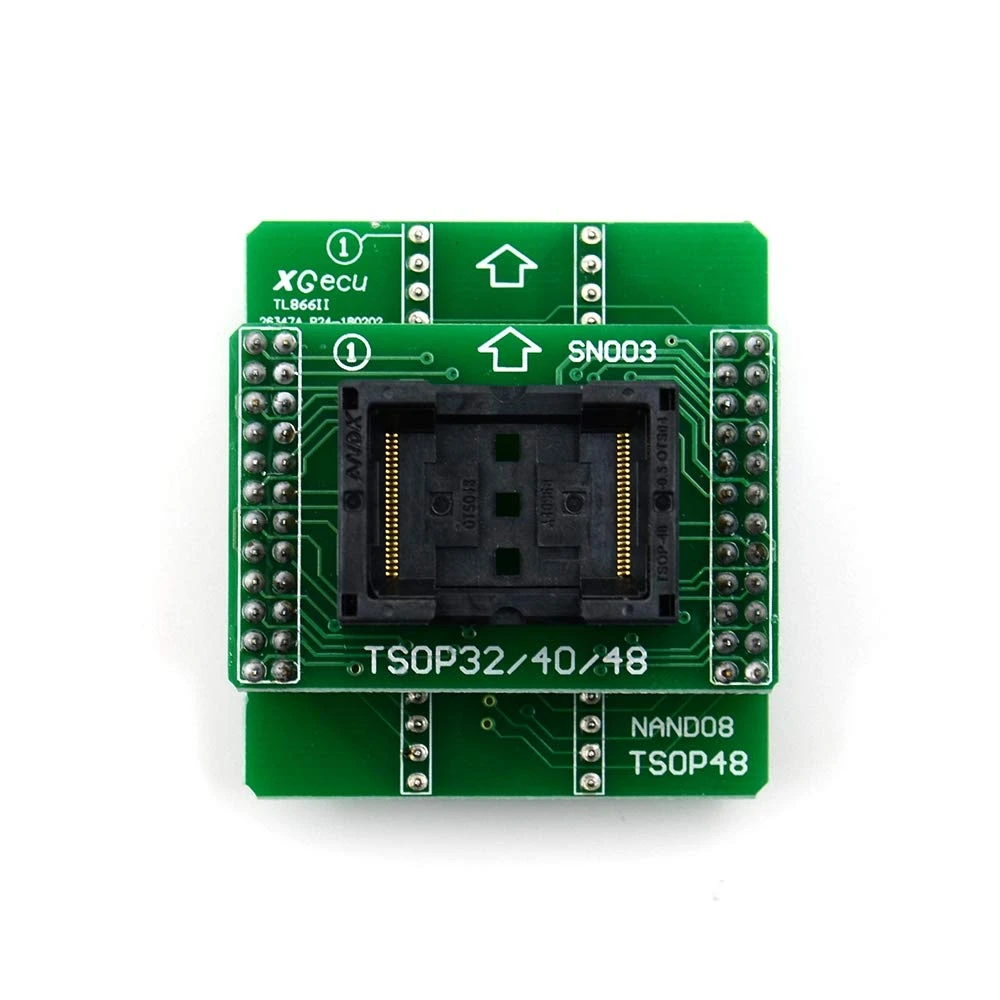

High-quality TSOP48 NAND08 adapter for Xgecu Minipro TL866II
Brand: satkit
Save 10% Was: 11.07 €
9.96€
VAT included (Ex VAT: 8.10 €)
Limited stock
Standard delivery
Wed, Apr 29 - Fri, May 1
Express delivery
Mon, Apr 27 - Tue, Apr 28
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only

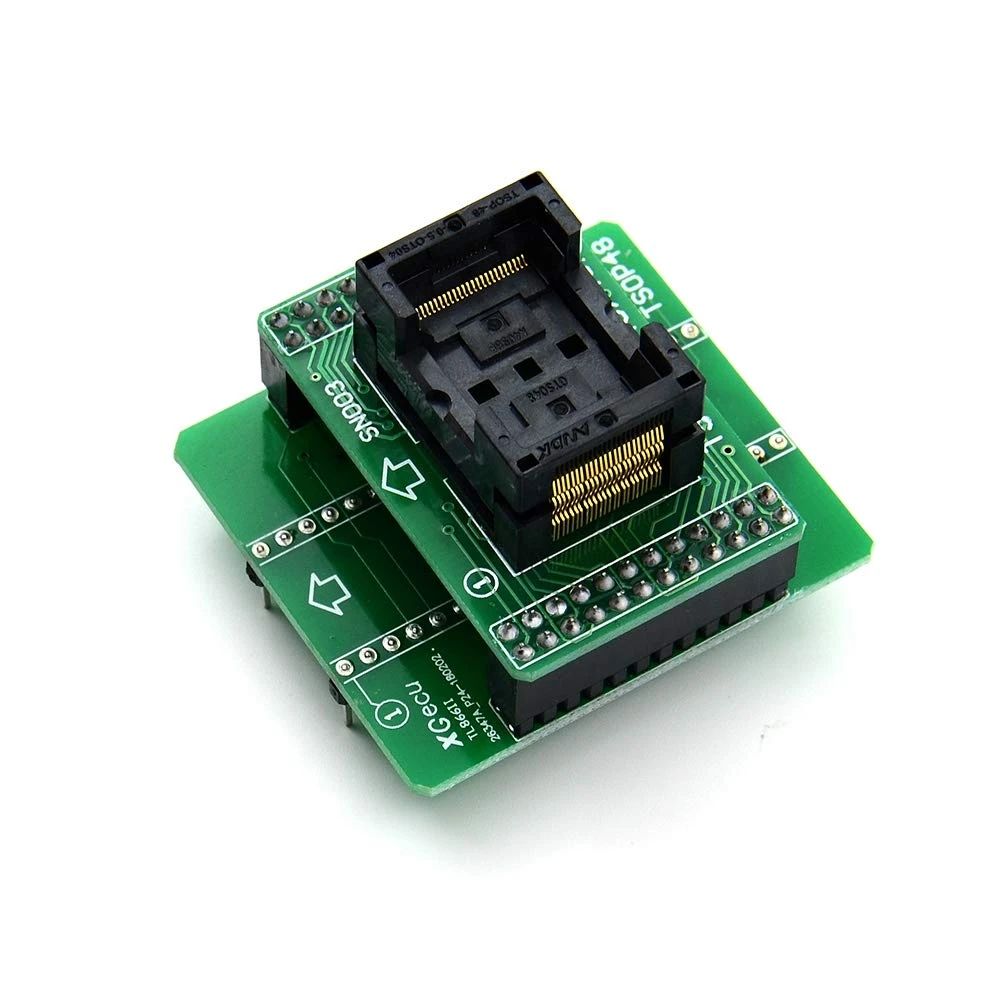

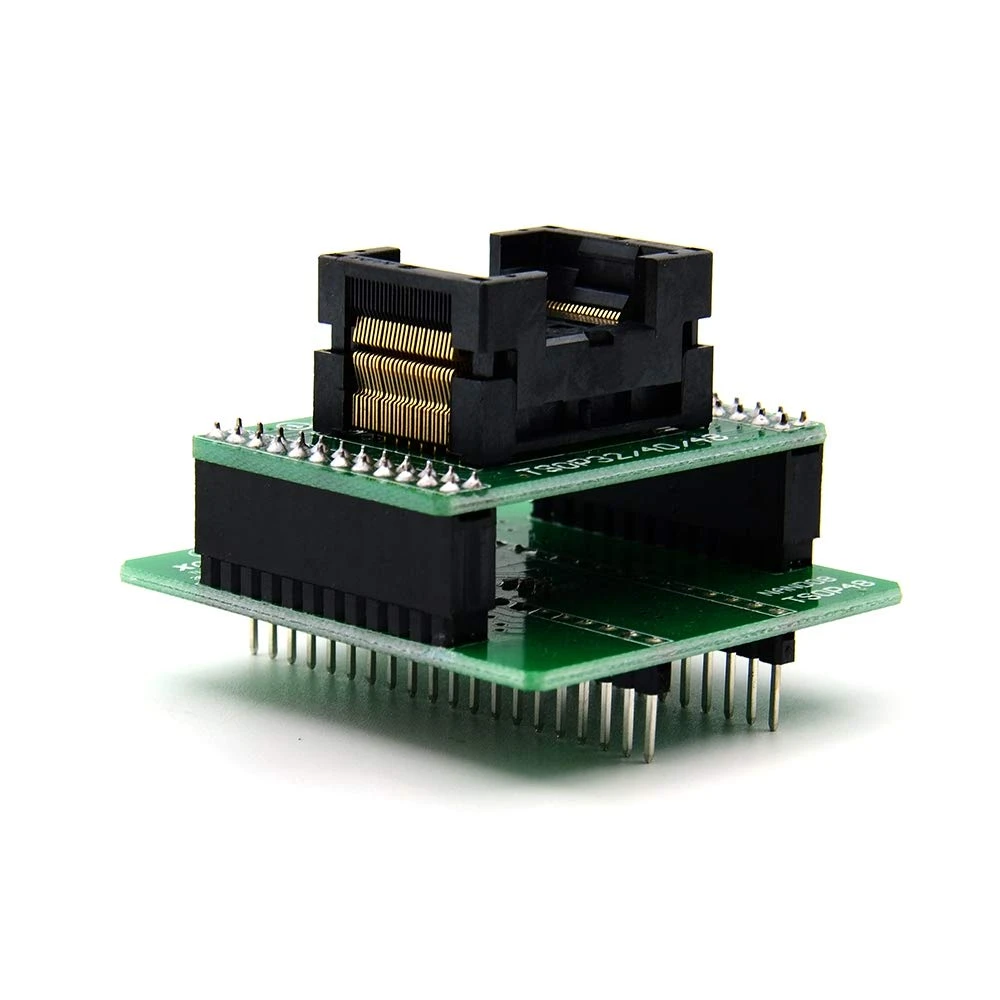

The TSOP48 NAND08 adapter for Xgecu Minipro TL866II programmer is a specialised component designed to make programming TSOP48 and NAND08 chips easier on compatible devices such as Xgecu Minipro and TL866II programmers. This adapter is ideal for technicians and electronics hobbyists who need a reliable and efficient solution for programming memories and microcontrollers.
Key features:
- Compatibility: Works with Xgecu Minipro and TL866II programmers, ensuring a perfect fit for TSOP48 and NAND08 chips.
- Compact design: Overall size of 5 x 5 x 4 cm, with a TSOP48 board of 3 x 3 x 3 cm, making it easy to integrate into tight spaces.
- Dual power supply: Provides a stable and safe supply for chip programming, improving process reliability.
- Quality material: Made from green PCB, ensuring durability and resistance in electronic work environments.

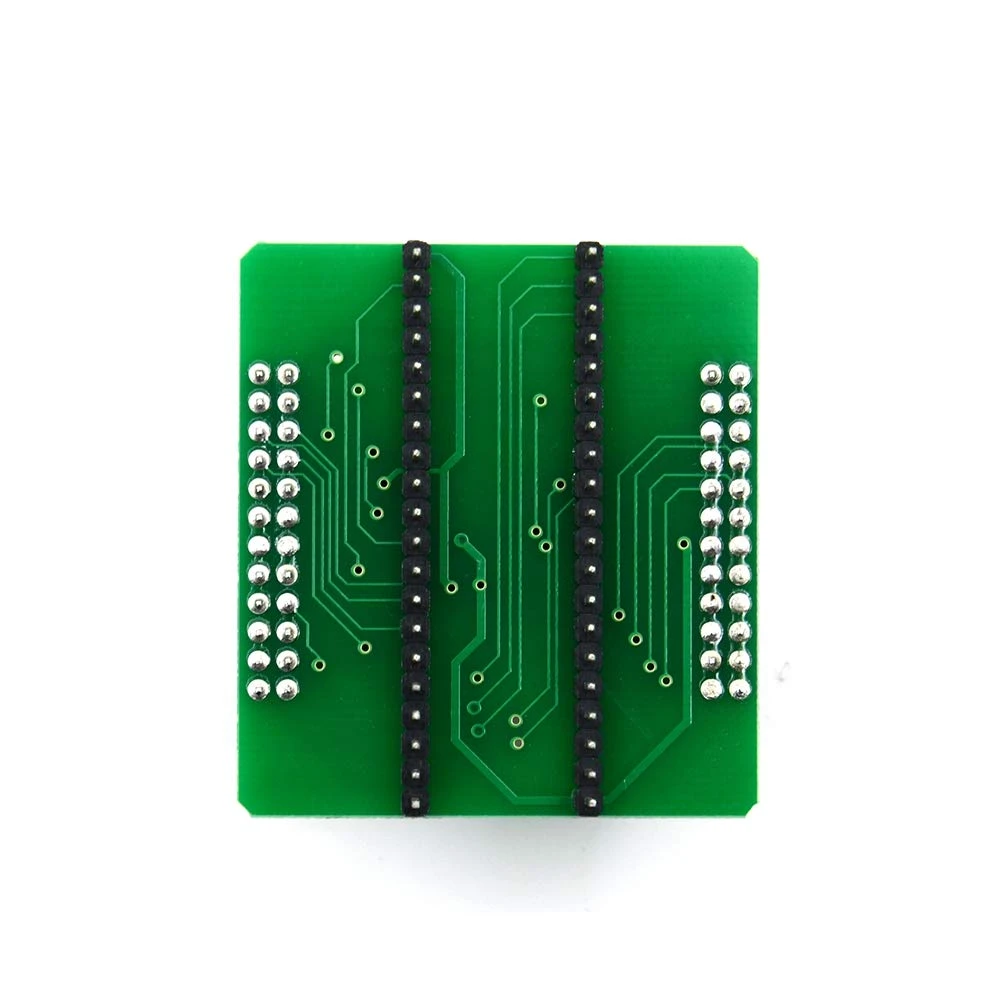

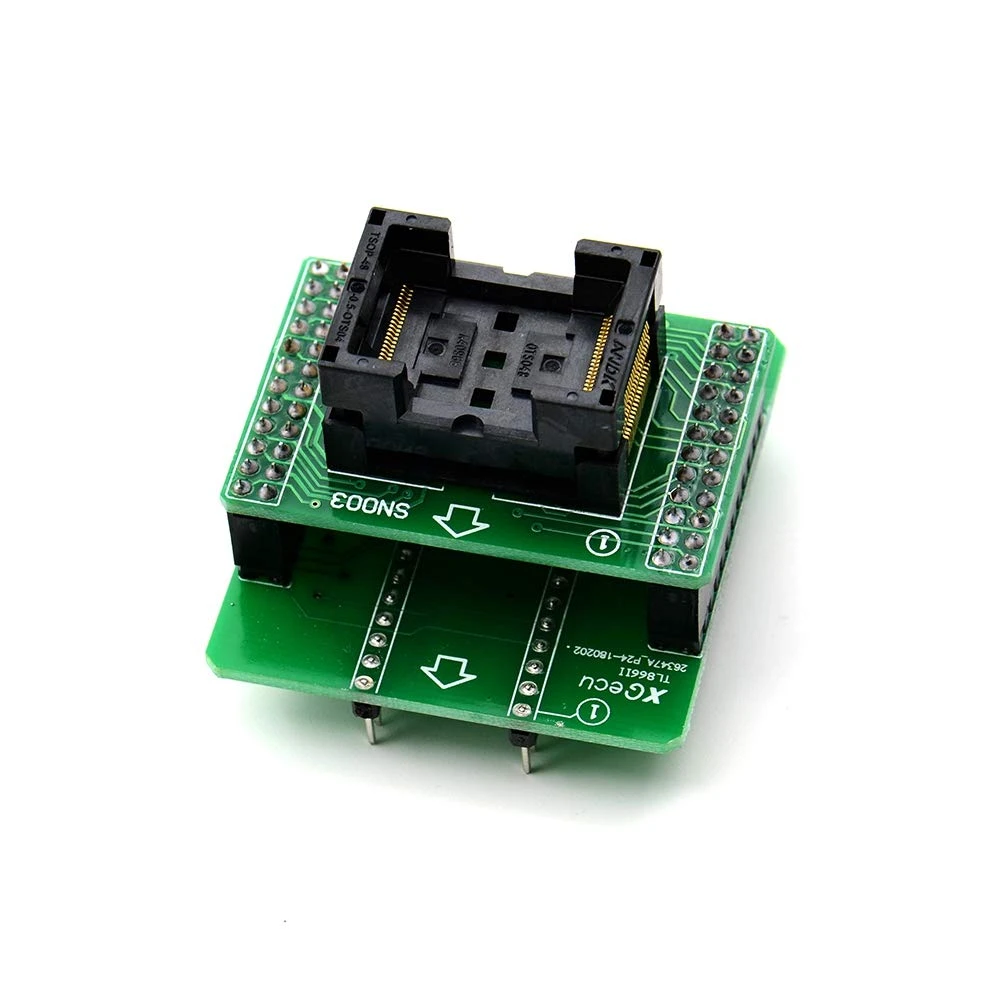

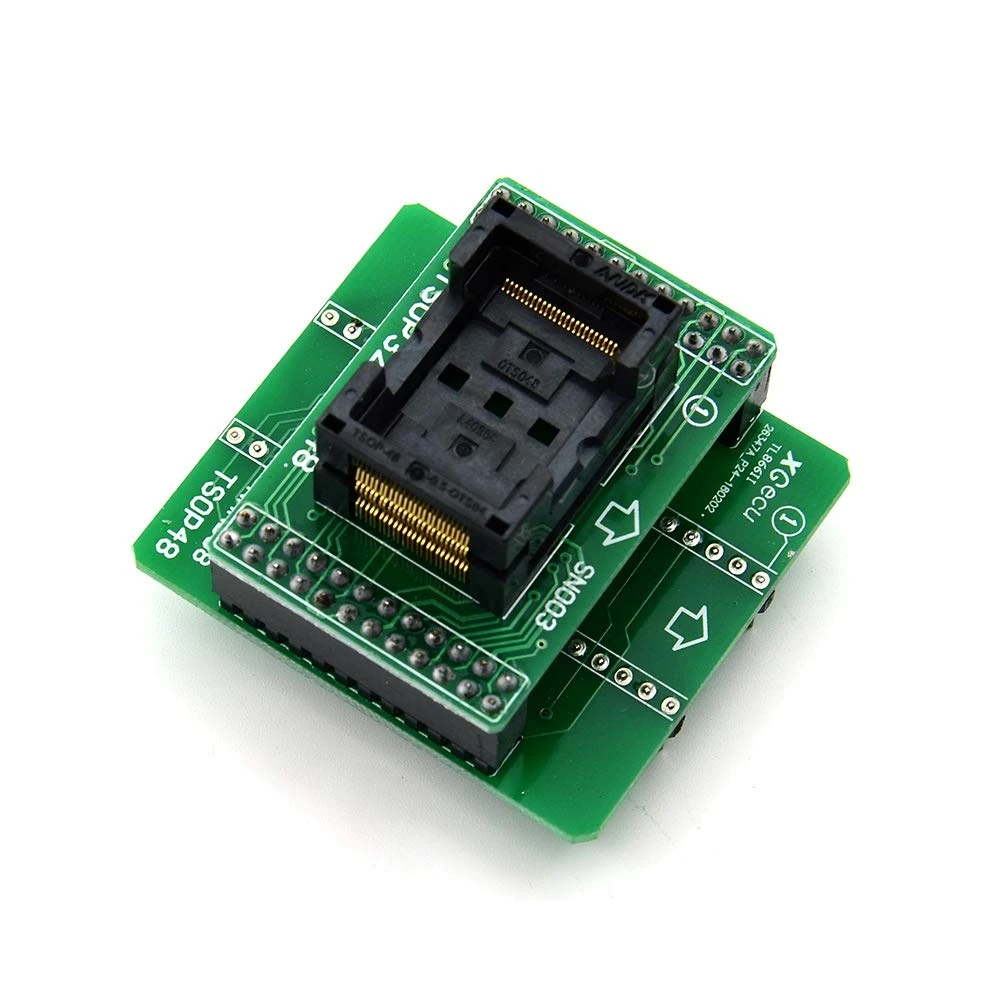

- Includes components: 1 TSOP48 socket top board and 1 NAND08 base board for immediate installation and use.
- Maximum capacity: Supports up to 16 digits, suitable for a wide range of electronic applications.
Typical uses:
- Programming NAND memories and TSOP48 chips in electronics repair and development projects.
- Integration into workstations for technicians who need reliable adapters for Xgecu and TL866II programmers.
- Applications in consumer electronics, automation and prototype development.
Compatibility and accessories:
This adapter is compatible exclusively with Xgecu Minipro and TL866II programmers, making it an essential accessory for expanding the capabilities of these devices. Its modular design allows easy installation and replacement in electronic workstations.
In summary, the TSOP48 NAND08 adapter for Xgecu Minipro TL866II programmer is an essential tool for electronics professionals and enthusiasts looking for a reliable, compact and efficient adapter for their chip programming projects.
- Compatible with Xgecu Minipro and TL866II programmers
- Dual power supply for greater stability
- Durable and resistant green PCB material
- Compact size: 5 x 5 x 4 cm
- Includes TSOP48 top board and NAND08 base board
- Supports up to 16 digits for various applications
Customer Questions & Answers
Which NAND Flash memories is the TSOP48 NAND08 adapter compatible with when used with the Xgecu Minipro TL866II programmer?
The adapter is designed for NAND Flash memories in TSOP48 package and is mainly used for 8-bit devices. It is compatible with most 48-pin NAND Flash chips read or programmed via the Xgecu Minipro TL866II programmer, but for specific models it is recommended to check the supported list for the TL866II, as there may be pinout or voltage variants.
Does installation on the TL866II programmer require any special tools or steps, and how is correct chip insertion ensured?
No additional tools are required. Simply fit the NAND08 base board into the programmer's ZIF socket and then place the TSOP48 chip in the top socket. It is advisable to align the chip polarity correctly using the reference marks to avoid damage from incorrect insertion.
What is the expected socket durability and how many insertion cycles can it withstand before showing wear?
The TSOP48 socket is usually rated for at least 200 to 500 insertion/removal cycles under normal use, although service life depends on handling and on avoiding dust build-up or contamination on the contacts.
What technical advantages does this adapter offer over other universal TSOP48 models?
This adapter is optimised for NAND08 and specific programmers such as the TL866II, which reduces compatibility issues and ensures correct pin mapping. Unlike universal sockets, it minimises the risk of incorrect connection and improves reliability when working with 8-bit NAND Flash chips.
Which programmers is the TSOP48 NAND08 adapter compatible with?
It is compatible with Xgecu Minipro and TL866II programmers.
What is included in the adapter package?
It includes a TSOP48 socket top board and a NAND08 base board.
What is the size of the adapter?
The overall size is 5 x 5 x 4 cm, and the TSOP48 board measures 3 x 3 x 3 cm.
What type of power supply does this adapter use?
It uses a dual power supply to ensure stability during programming.
What type of chips is this adapter designed for?
It is designed to program TSOP48 and NAND08 chips.
