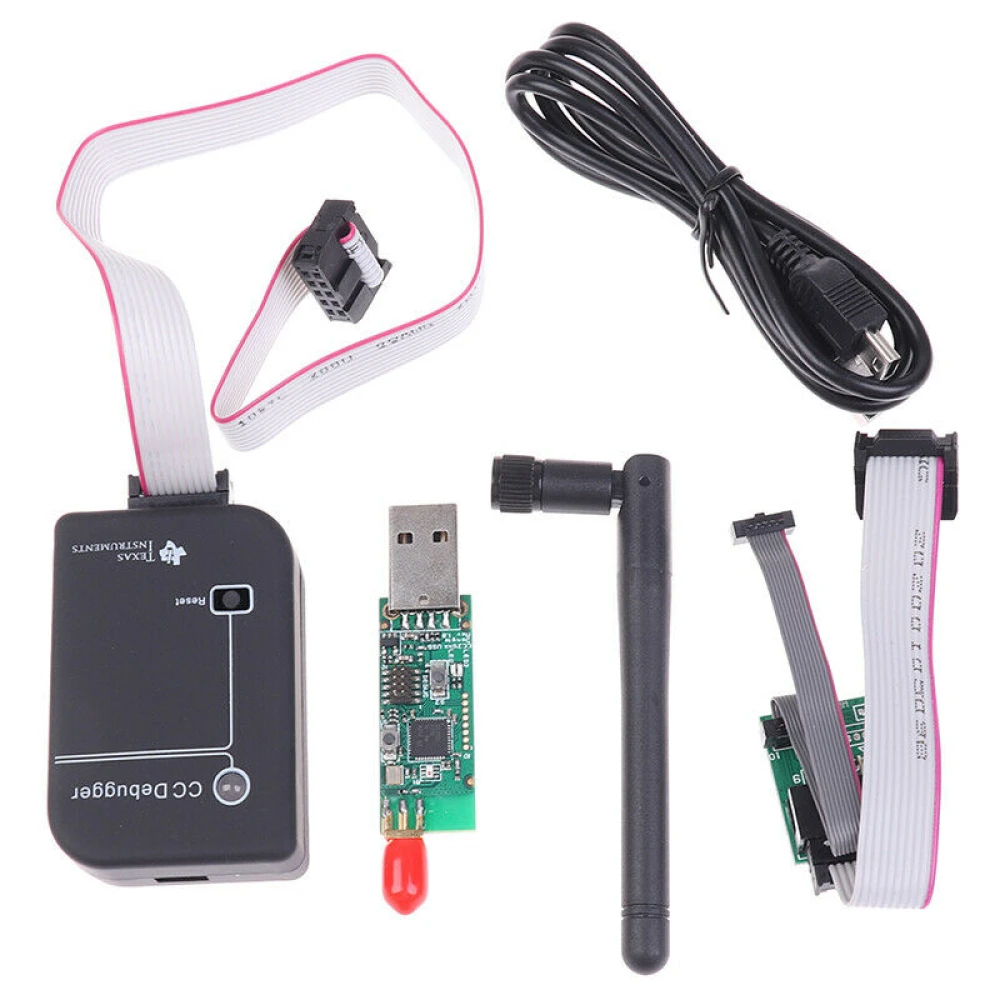

CC Debugger Zigbee CC2531 Programmer for Protocol Analysis
Brand: satkit
19.07€
VAT included (Ex VAT: 15.50 €)
Only 5 left in stock - order soon!
Standard delivery
Thu, Apr 30 - Mon, May 4
Express delivery
Tue, Apr 28 - Wed, Apr 29
30-day returns
Free returns within 30 days
Secure transaction
Share:
Free Delivery
Shipping from €4.99
Easy Returns
30 day return policy
Secure Payment
100% secure checkout
Quality Guarantee
Original products only
CC Debugger Zigbee CC2531 Programmer is an advanced tool designed for Zigbee protocol simulation and analysis, ideal for developers and technicians working with wireless systems based on Texas Instruments chips with an 8051 core.
Product description:
- Compact programmer and debugger for TI low-power RF System-on-Chips (SoC).
- Compatible with IAR Embedded Workbench for 8051 (version 7.51A or later) for debugging tasks.
- Uses SmartRF Flash Programmer for efficient flash programming.
- Allows control of selected devices via SmartRF Studio.
Compatible software:
- SmartRF Studio and SmartRF Flash Programmer.
- IEEE address programmer and PacketSniffer for traffic analysis.
- PurePathWireless and multiple versions of IAR for 8051, including version 8.10 used by the Z-Stack protocol stack.
Supported operating systems:
- Windows XP and Windows 7, 32-bit and 64-bit versions.
TI chip compatibility:
- Programming and simulation: CC1110, CC1111, CC2430, CC2431, CC2510, CC2511, CC2530, CC2531, CC2533, CC2540, CC2541, CC2543, CC2544, CC2545.
- Control via SmartRF Studio: CC1120, CC1121, CC1125, CC1175, CC1100, CC1101, CC110L, CC113L, CC115L, CC2500, CC2520.
- PurePath wireless chip programming: CC8520, CC8521, CC8530, CC8531.
Technical specifications:
- Board thickness: 1,6 mm.
- Operating frequency: 2.405-2.485 GHz.
- Wireless transmission speed: 250 Kbaud.
- Power consumption: less than 20 mA in receive and less than 25 mA in transmit.
- 8 IO port output for connection and control.
- Integrated debug pin.
- Firmware adapted for protocol analyser functions.

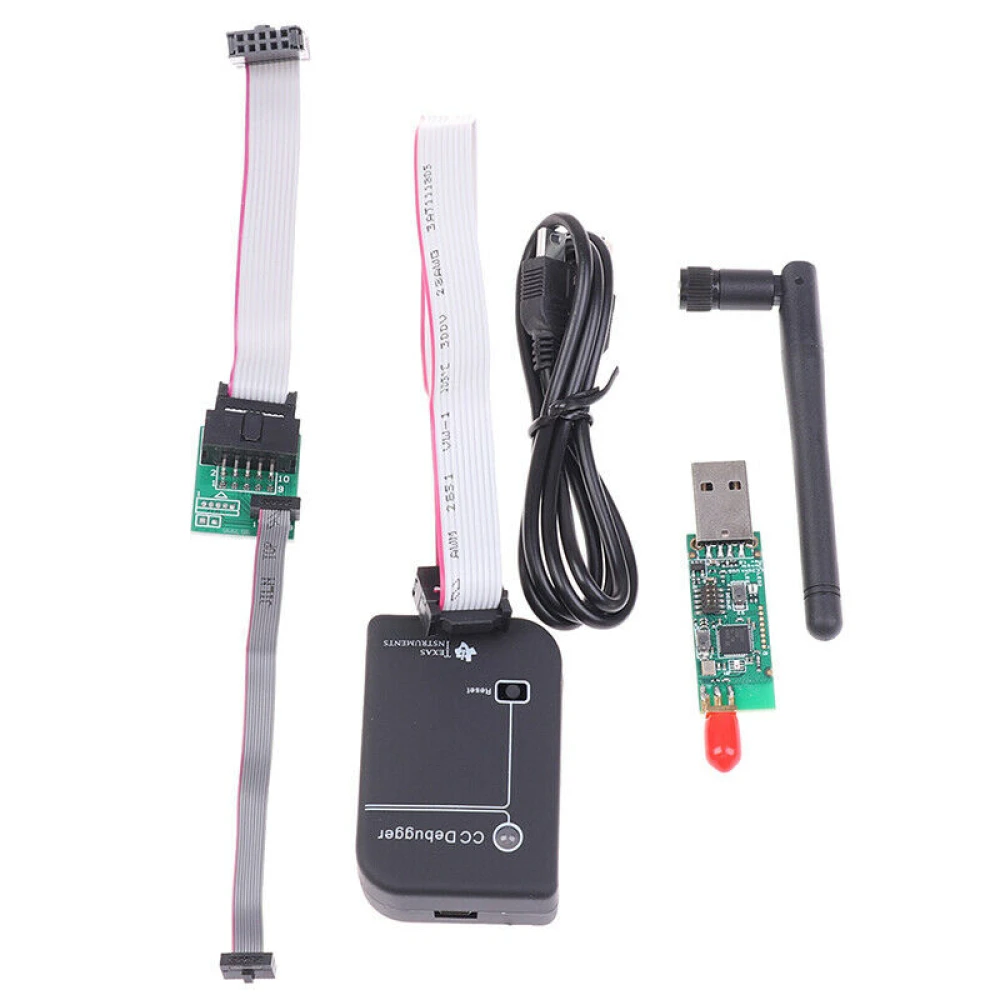

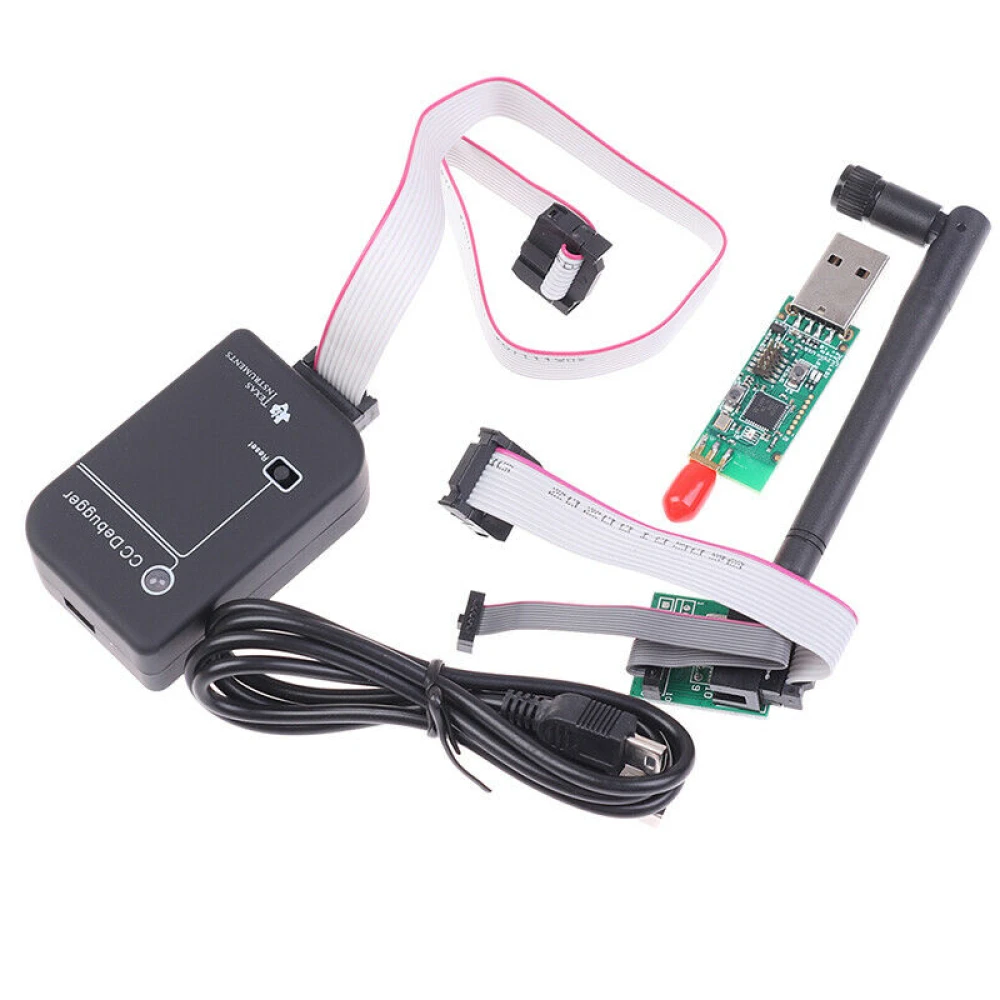

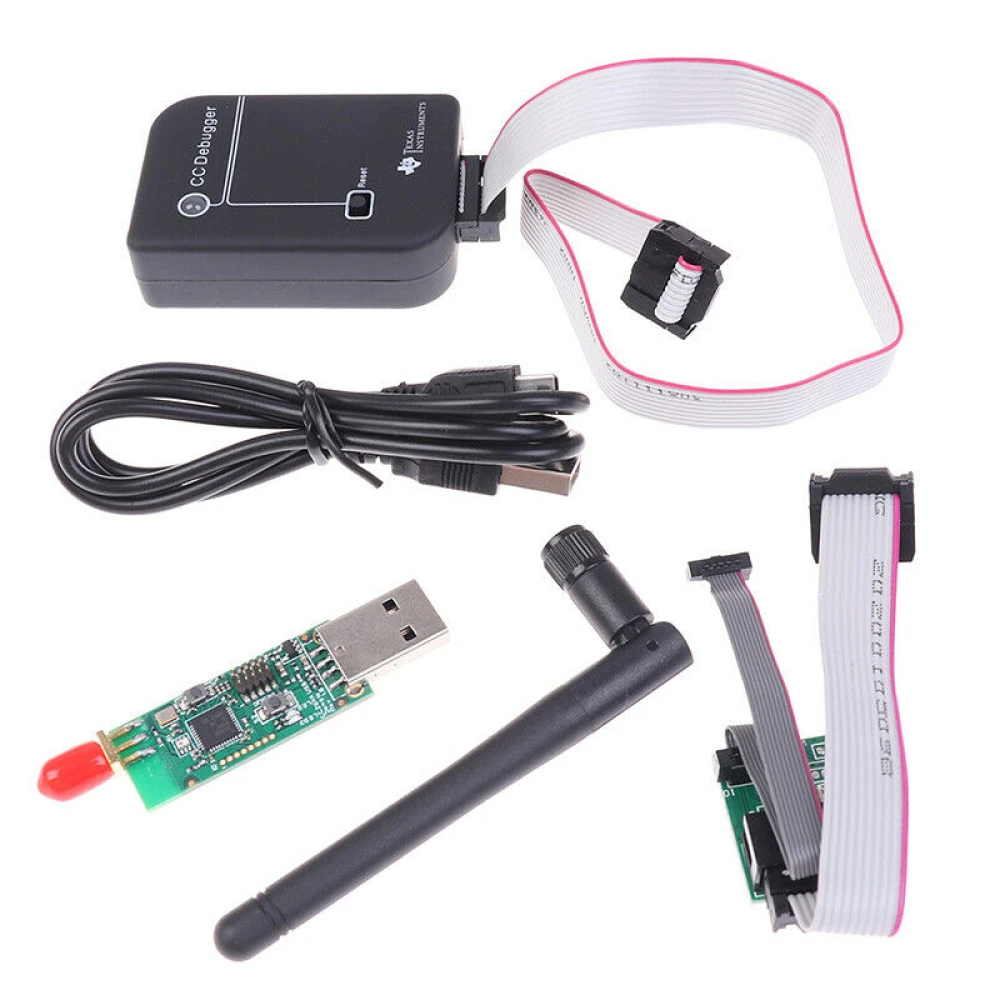

Package contents:

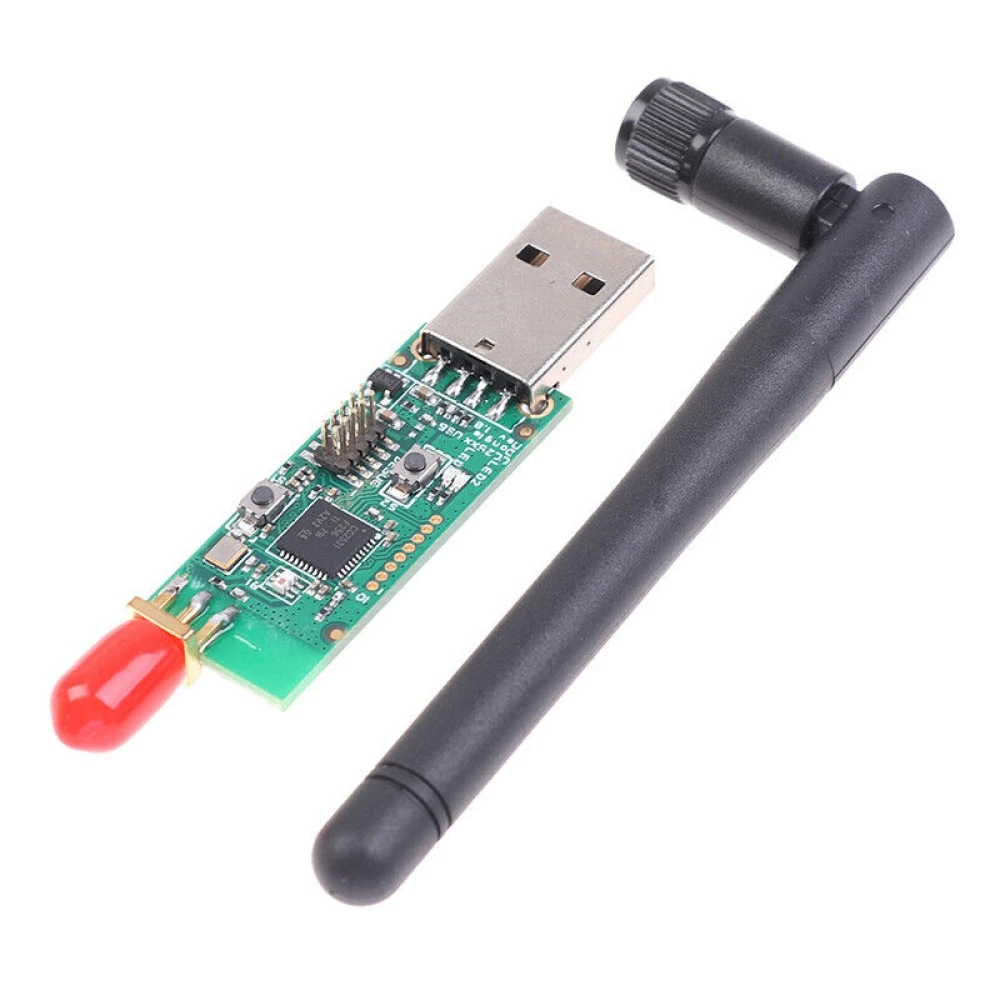

- 1 x CC2531 Sniffer Board with integrated antenna.
- 1 x download cable for programmer.

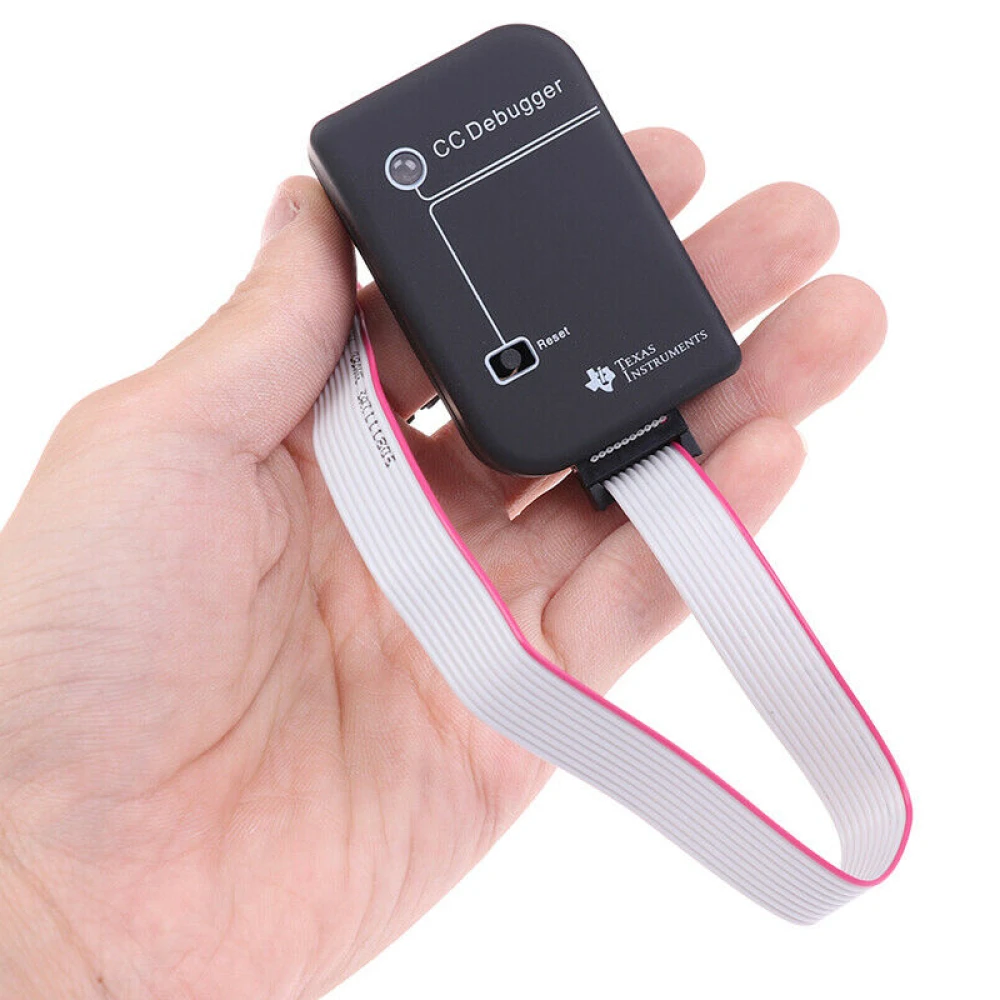

- 1 x CC Debugger debugger.
- 1 x mini USB cable for connection.
This all-in-one solution is perfect for anyone who needs a reliable tool for Zigbee programming, debugging and protocol analysis, making development and maintenance of TI chip-based wireless devices easier.
- Compact programmer and debugger for low-power TI 8051 chips.
- Compatible with IAR Embedded Workbench and SmartRF Studio.
- Supports flash programming with SmartRF Flash Programmer.
- Compatible with TI chips including CC1110, CC2531 and CC2541.
- Includes antenna and programming lead for easy connection.
- Operating frequency between 2.405 and 2.485 GHz.
- Low power consumption: less than 25 mA in transmit.
- Includes CC2531 Sniffer Board, cables and CC Debugger.
Customer Questions & Answers
What are the dimensions, weight and exact box contents of the package?
The standard contents include: 1 CC Debugger, 1 CC2531 USB dongle, 1 antenna, and 1 programming cable. Approximate dimensions are: CC Debugger 50 × 25 × 8 mm, CC2531 55 × 18 × 8 mm, antenna 60 mm long, and total weight under 80 g. These values are approximate and may vary slightly depending on the batch.
Which operating systems and software are compatible for installing and using the kit?
The kit is officially compatible with Windows XP and Windows 7 (32-bit and 64-bit). Recommended software includes SmartRF Studio, SmartRF Flash Programmer, IAR Embedded Workbench for 8051 (v7.51A or later), IEEE Address Programmer and PacketSniffer. There is no official support for macOS or Linux.
What are the most common installation or programming issues when using the kit, and how can they be resolved?
The most common issues are: 1) drivers not being recognised (solution: install the drivers manually from TI's official website); 2) incompatible software versions (use only the recommended versions, such as IAR 7.51A+); 3) incorrect connections between the debugger and the chip (check the pinout diagram and that the cable orientation is correct). It is also useful to try different USB ports to rule out electrical faults.
How does this kit differ from other alternatives such as a simple JTAG for the same purpose?
Unlike conventional JTAG programmers, the CC Debugger is designed specifically for TI RF chips, offers native support for integrated debugging, TI tools and Zigbee protocol analysis via CC2531. Simple JTAG may require additional configuration, has less support for TI tools and is less efficient for wireless analysis. However, JTAG is more universal for non-RF chips.
Which chips are compatible with the CC Debugger Zigbee CC2531 Programmer?
It is compatible with a wide range of TI 8051-core chips, including CC1110, CC1111, CC2430, CC2531, CC2541, among others, as well as chips controlled by SmartRF Studio and PurePath wireless chips.
What software do I need to use this programmer?
It can be used with IAR Embedded Workbench for 8051, SmartRF Studio, SmartRF Flash Programmer, PacketSniffer and PurePathWireless, among others.
Is it compatible with Windows 10?
The product officially supports Windows XP and Windows 7 in 32-bit and 64-bit versions. Windows 10 support is not mentioned.
What is included in the package with this programmer?
It includes a CC2531 Sniffer board with antenna, download cable, CC debugger and mini USB cable.
What is the debug pin for?
The debug pin allows direct connection and debugging of compatible chips, making firmware development and analysis easier.
