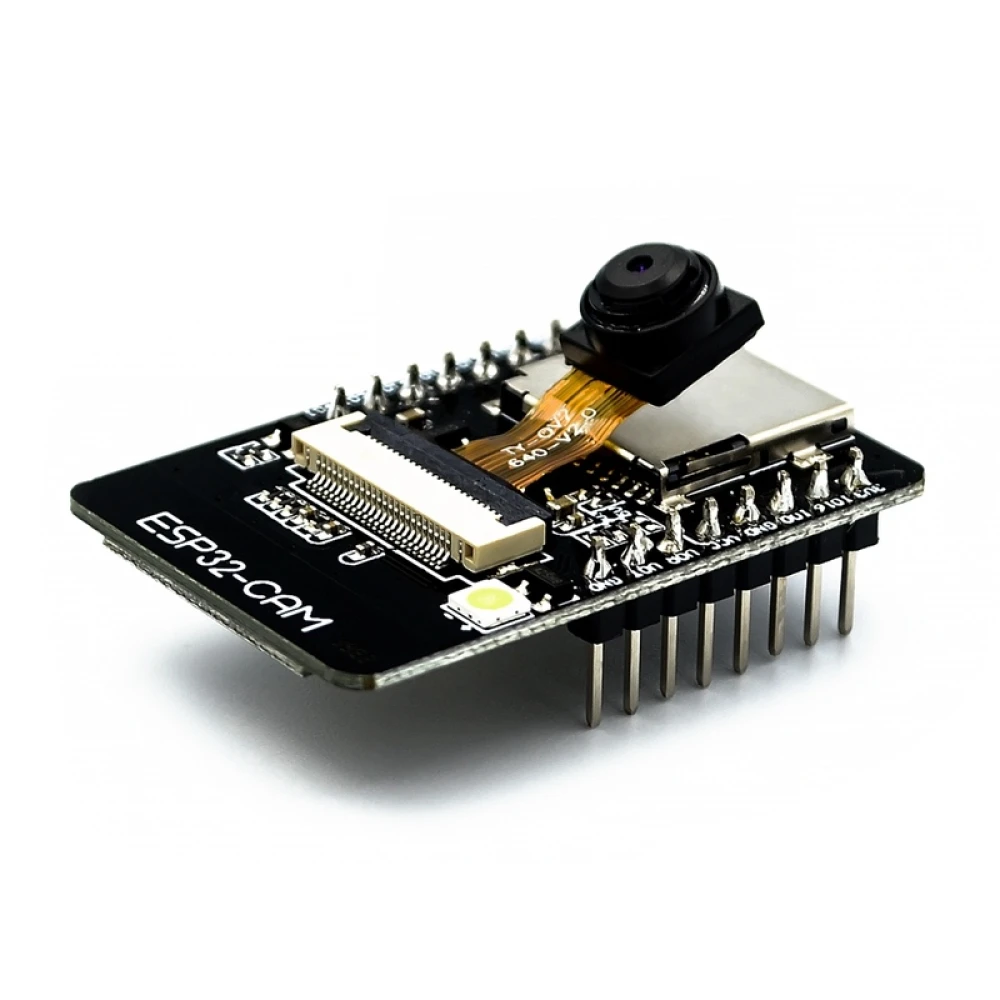

ESP32-CAM NodeMCU 5V WiFi Development Board with OV2640 Camera Module

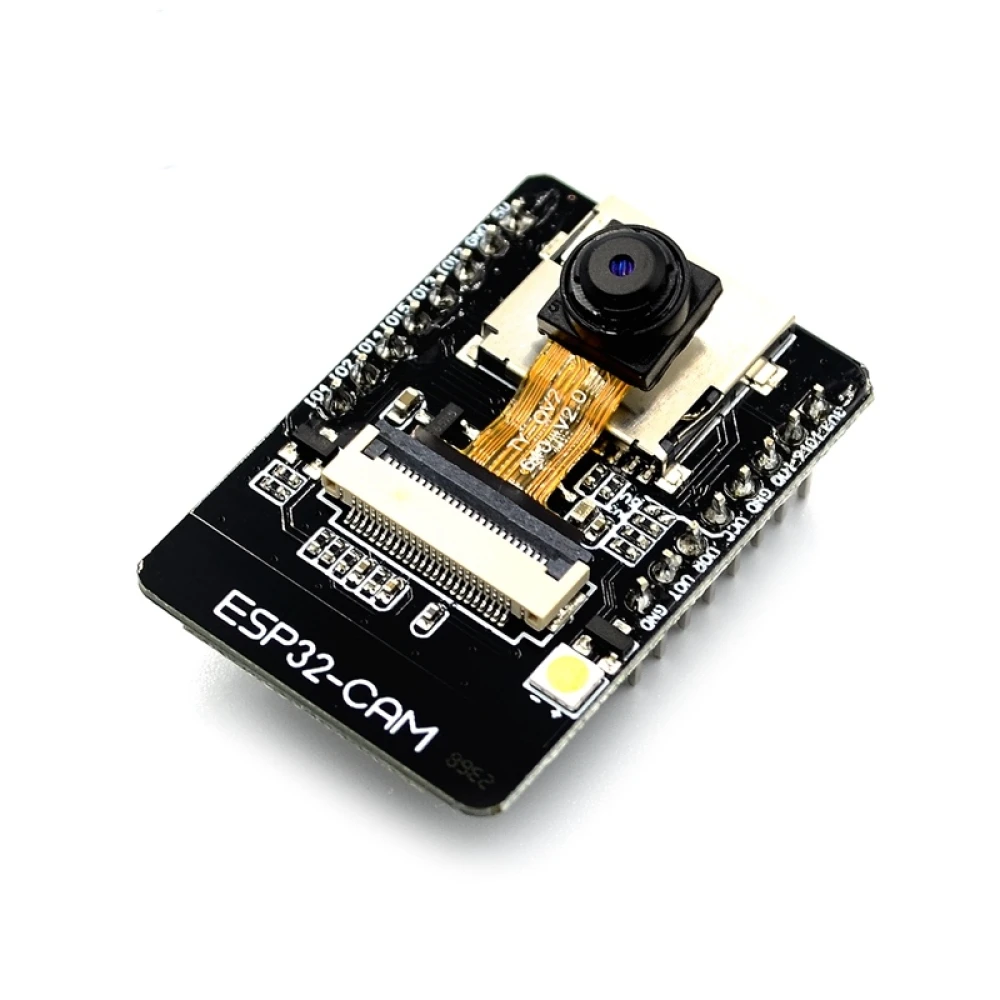

Detalle del módulo cámara OV2640 en placa ESP32-CAM NodeMCU 5V WIFI

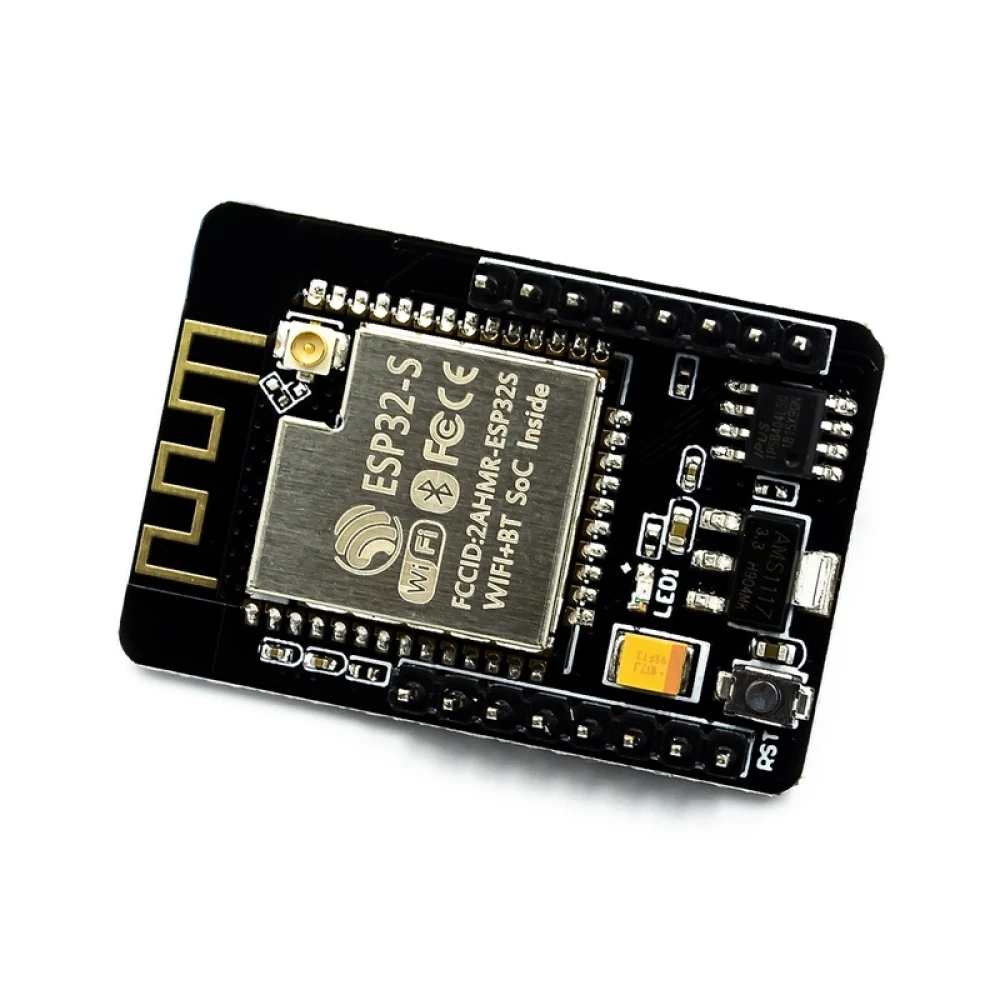

Conexiones y puertos de la placa ESP32-CAM NodeMCU 5V WIFI con cámara OV2640

ESP32-CAM NodeMCU 5V WiFi Development Board with OV2640 Camera Module

Name: ESP32-CAM NodeMCU 5V WiFi Development Board with OV2640 Camera Module
Brand: satkit
SKU: 1c080506
Price: 9.84 EUR
Availability: InStock

Brand: satkit

Be the first to review this product

9.84€

VAT included (Ex VAT: 8.00 €)

In Stock - Ships immediately

Standard delivery Thu, Apr 30 - Mon, May 4

Express delivery Tue, Apr 28 - Wed, Apr 29

30-day returns

Quantity

Free returns within 30 days

Secure transaction

Free Delivery Shipping from €4.99

Easy Returns 30 day return policy

Secure Payment 100% secure checkout

Quality Guarantee Original products only

The ESP32-CAM NodeMCU 5V WiFi Development Board with OV2640 Camera Module is a compact and powerful solution for Internet of Things (IoT) applications. This module combines advanced wireless connectivity with image capture capabilities, making it easier to develop smart devices and monitoring systems.

Designed for a wide range of uses, this board is ideal for smart home devices, industrial wireless control, remote monitoring, QR code wireless identification, and wireless positioning systems, among others.

Main features

Integrated Wi-Fi 802.11b/g/n and Bluetooth BLE connectivity for efficient communication.
32-bit dual-core CPU processor with up to 240MHz and performance of up to 600 DMIPS.
Integrated 520 KB SRAM memory and 4 MB external PSRAM for data handling and applications.
Support for multiple interfaces: UART, SPI, I2C, PWM, ADC and DAC, making integration with other devices easier.
Compatible with OV2640 and OV7670 cameras, includes OV2640 camera module with built-in flash for high-quality captures.
TF card support for external storage and image upload via WiFi.
Multiple sleep modes for energy saving.
Firmware based on Embedded LwIP and FreeRTOS, with support for STA, AP and STA+AP modes.
Smart network configuration via AirKiss and remote firmware update (FOTA).

Technical specifications

Specification	Detail
Connectivity	Wi-Fi 802.11b/g/n, Bluetooth BLE
Processor	32-bit CPU, dual core, up to 240MHz
Memory	SRAM 520 KB, external PSRAM 4 MB
Camera	OV2640 module with built-in flash
Interfaces	UART, SPI, I2C, PWM, ADC, DAC
Storage	TF card support
Sleep modes	Multiple for energy saving
Operating system	Embedded LwIP and FreeRTOS
Network modes	STA, AP, STA+AP
Firmware update	Local via serial and remote (FOTA)

Typical applications

Smart home devices and home automation.
Wireless control in industrial environments.
Remote monitoring and surveillance with image capture.
Wireless identification using QR codes.
Wireless positioning and signalling systems.

Compatibility

Compatible with OV2640 and OV7670 cameras, this module integrates easily with other IoT devices and platforms that support UART, SPI, I2C interfaces, among others.

Package contents

1 x ESP32-CAM NodeMCU 5V module with OV2640 camera

Integrated Wi-Fi 802.11b/g/n and Bluetooth BLE
32-bit dual-core CPU up to 240MHz
520 KB SRAM and 4 MB external PSRAM
Compatible with OV2640 and OV7670 cameras
TF card support and WiFi image upload
Multiple sleep modes for energy saving
Firmware with FreeRTOS and STA/AP mode support
Remote firmware update (FOTA)
Ideal for IoT applications and smart devices

Customer Questions & Answers

What power supply requirements does it have, and what tolerance does the board’s 5V pin allow?

The ESP32-CAM board requires a stable 5V DC supply, with a minimum current of 500 mA recommended to avoid resets when the camera is active. The tolerance range for the 5V pin is usually between 4.75V and 5.25V. Supplies outside this range may cause faults or permanent damage.

What communication protocols does the board support, and what are the transmission speed limitations?

The module supports UART (typical speeds up to 115200 baud), SPI (up to 40 MHz, depending on the wiring), I2C (up to 400 kHz as master) and Wi-Fi 802.11 b/g/n (theoretical maximum speed of 72.2 Mbps, limited by the environment and firmware). BLE Bluetooth supports connections up to 2 Mbps under optimal conditions. Image transfer over Wi-Fi depends on file size and link quality.

What are the main thermal limitations and recommendations for continuous operation of the ESP32-CAM?

The ESP32-CAM is designed to operate between -20°C and 85°C. It does not have an integrated heatsink, so during prolonged use, especially when recording video or with Wi-Fi constantly active, it may heat up above 65°C in hot environments. Adequate ventilation is recommended. If used in enclosed cases, it is advisable to monitor the microcontroller temperature.

What are the dimensions, weight and components included exactly in the box of the ESP32-CAM?

The ESP32-CAM module measures approximately 40 mm x 27 mm x 4.5 mm, and weighs about 7 g. The box contents include the assembled ESP32-CAM module with its OV2640 camera pre-installed. No cables, microSD card or USB-Serial programming adapter are included.

What is the ESP32-CAM NodeMCU 5V WiFi with OV2640 camera used for?

This board is mainly used for Internet of Things (IoT) projects, such as smart devices, wireless control, remote monitoring and wireless identification systems.

What type of camera does this module include?

It includes an OV2640 camera module with built-in flash, and is also compatible with OV7670 cameras.

What interfaces does the ESP32-CAM board support?

It supports UART, SPI, I2C, PWM, ADC and DAC interfaces to make connection with other devices easier.

Is it possible to update the firmware remotely?

Yes, the board supports remote firmware update (FOTA), as well as local serial update.

What network modes does this board support?

It supports STA, AP and STA+AP network modes, allowing flexibility in WiFi connection.
